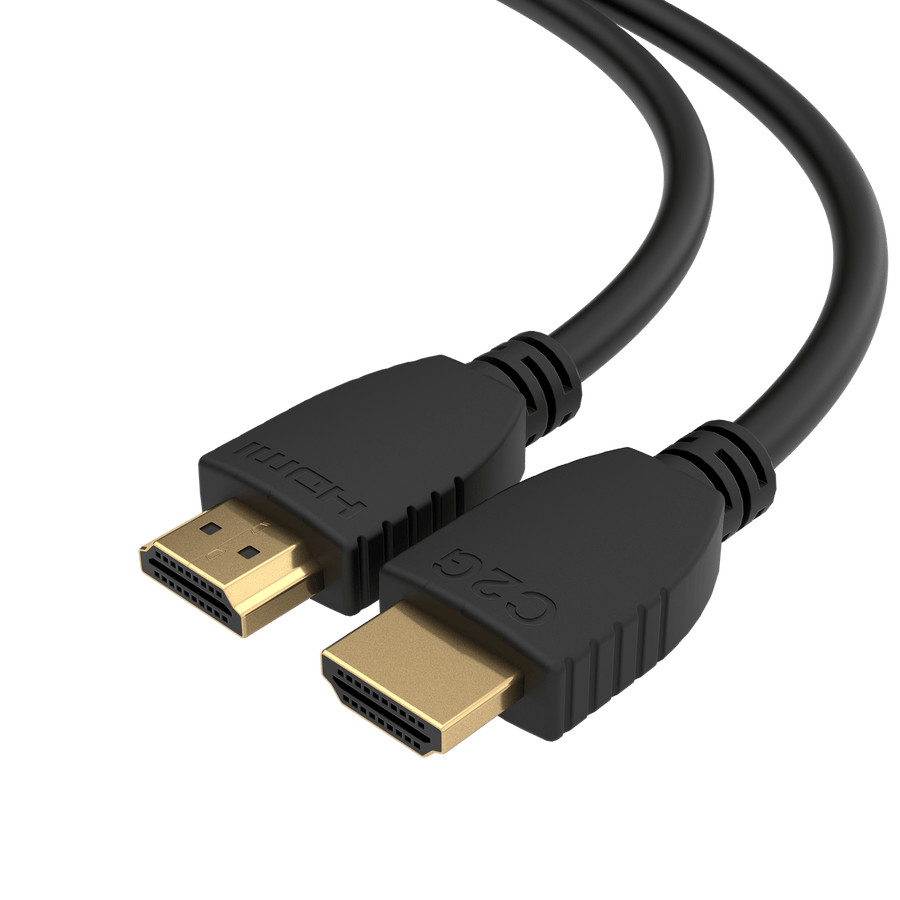

20ft (6m) Core Series High Speed HDMI® Cable with Ethernet
20ft High Speed HDMI cable supporting 4K @ 60Hz, 18 GBPS data transfer, and Ethernet connectivity
The C2G50647 is a 20 ft (6.1 m) Core Series High Speed HDMI cable designed to facilitate high-resolution video and audio transmission. This cable supports video resolutions up to 4K (4096 x 2160) at 60Hz and provides a data transfer rate of 18 GBPS. It is equipped with gold-plated HDMI male connectors to ensure enhanced durability and increased electrical conductivity. For integrated systems, the built-in Ethernet capabilities allow HDMI-enabled devices to access interactive online content or perform firmware updates via the cable. Additionally, this cable supports Consumer Electronic Control (CEC) extensions, enabling the management of multiple connected devices through a single control point. The 0.33 in (8.5 mm) diameter jacket is VW-1 rated for safety, and the cable supports 3D video and up to 32 audio channels for immersive playback.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 2.68 in (68 mm) |
| Cable Diameter | 0.33 in (8.5 mm) |
| Cable Length | 20 ft (6.1 m) |
| Package Count | 1 |
| Shipping Weight | 0.58 lbs (0.3 kg) |
| Cable Type | HDMI |
| Color | Black |
| Connector 1 | (1) HDMI Male |
All other specifications 8
| Connector 2 | (1) HDMI Male |
| Jacket Rating | VW-1 Rated |
| Signal Type | HDMI |
| UPC | 757120506478 |
| Video Resolution | 4K @ 60Hz |
| Certifications | Prop 65REACHRoHSUKCA |
| Data Transfer Rate | 18 GBPS |
| Warranty | Lifetime |
Resources
You'll need these with it
HDMI® HDBaseT + RS232 and IR over Cat Extender Single Gang Wall Plate Transmitter to Ultra-Slim Box Receiver - 4K 60Hz
C2G30025$470.99
HDMI over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz
C2G60220$266.99
HDMI® Male to VGA Female Adapter Converter Dongle
CG41350$58.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 30Hz
CG41057$88.99
HDMI Over Cat5/6 Extender up to 164ft (50m)
CG60180$198.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 60Hz
C2G41600$190.99
HDMI® HDBaseT + USB-C® Data and Video Over Cat Extender Wall Plate Transmitter to Box Receiver – 4k
C2G31029$725.99
20ft (6.1m) Performance Series Ultra Flexible High Speed HDMI® Cable with Ethernet
C2G10401$78.99
20ft (6.1m) Performance Series Premium High Speed HDMI® Cable with Ethernet
CG50188$95.99
Questions about this part
Will the C2G50647 support 4K video resolution?
Yes, this cable supports video resolutions up to 4K (4096 x 2160) at 60Hz via its 18 GBPS data transfer rate.
Can I use this cable for device control and firmware updates?
Yes, the integrated Ethernet allows for firmware updates, and CEC extensions enable control of connected devices through one point.
What is the difference between the Core Series and the Performance Series?
While this Core Series cable provides 4K @ 60Hz support, the Performance Series offers ultra-flexible options like the C2G10401.
Is this cable suitable for 3D video setups?
Yes, the C2G50647 is designed to support 3D video for enhanced visual realism.
What is the connector type for the C2G50647?
This cable features two HDMI male connectors with gold plating for improved conductivity.
