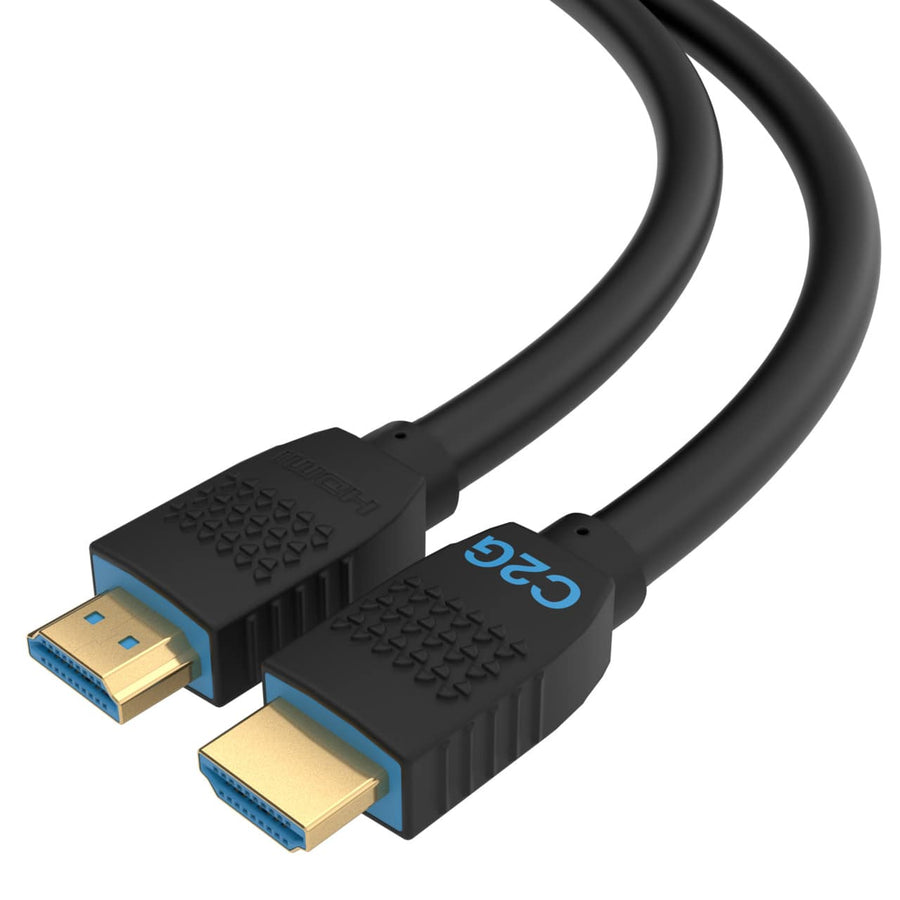

20ft (6.1m) Performance Series Ultra Flexible High Speed HDMI® Cable with Ethernet
20ft Ultra Flexible HDMI cable supporting 4K @ 60Hz, featuring in-wall rated CMG/FT4 jacket and gold-plated connectors
The C2G10401 is a 20ft (6.1m) Performance Series Ultra Flexible High Speed HDMI cable designed specifically for high-density commercial environments. This cable supports video resolutions up to 4K (4096 x 2160) at 60Hz and manages data transfer rates up to 18 GBPS. For permanent installations, the jacket is CMG and FT4 rated, making it safe for in-wall routing to maintain a clean, professional look. The connectors are gold-plated for enhanced durability and increased electrical conductivity, and they feature integrated finger grips to assist with insertion and removal in tight spaces. The shell is designed with a gripping mechanism that provides 2x greater port retention. Additionally, this cable supports CEC extensions, allowing for the control of consumer electronics through a single central point. This is a UL Listed, NDAA 889 compliant cable with a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 3.54 in (90 mm) |
| Cable Diameter | 0.37 in (9.5 mm) |
| Cable Length | 20 ft (6.1 m) |
| Cable Type | HDMI |
| Color | Black |
| Connector 1 | (1) HDMI Male |
| Connector 2 | (1) HDMI Male |
| HDMI Type | Ultra Flexible |
All other specifications 9
| Jacket Application | In-Wall Rated |
| Jacket Rating | CMG Rated, FT4 Rated |
| Signal Type | HDMI |
| TAA Compliant | No |
| UPC | 757120104018 |
| Video Resolution | 4K @ 60Hz |
| Certifications | NDAA 889Prop 65REACHRoHSTSCAUL Listed |
| Data Transfer Rate | 18 GBPS |
| Warranty | Lifetime |
Resources
You'll need these with it
HDMI® HDBaseT + RS232 and IR over Cat Extender Single Gang Wall Plate Transmitter to Ultra-Slim Box Receiver - 4K 60Hz
C2G30025$470.99
HDMI Over Cat5/6 Extender up to 164ft (50m)
CG60180$198.99
4-Port HDMI® Distribution Amplifier Splitter - 4K 30Hz
CG41058$132.99
HDMI® HDBaseT + USB-C® Data and Video Over Cat Extender Wall Plate Transmitter to Box Receiver – 4k
C2G31029$725.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 30Hz
CG41057$88.99
HDMI over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz
C2G60220$266.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 60Hz
C2G41600$190.99
HDMI® Male to VGA Female Adapter Converter Dongle
CG41350$58.99
20ft (6.1m) Performance Series Premium High Speed HDMI® Cable with Ethernet
CG50188$95.99
Questions about this part
Will this HDMI cable work for in-wall installations?
Yes, the C2G10401 has a CMG and FT4 rated jacket, making it safe for running inside walls.
Can I use the C2G10401 for 4K video setups?
This cable supports video resolutions up to 4K (4096 x 2160) @ 60Hz with an 18 GBPS data transfer rate.
How does the connector design help in tight spaces?
The connectors feature integrated finger grips for easier handling and a shell design that provides 2x greater port retention.
Does this cable support HDMI CEC?
Yes, it supports CEC extensions, which allows you to control multiple consumer electronics through a single control point.
What is the difference between the C2G10401 and the C2G50188?
The C2G10401 is an Ultra Flexible High Speed HDMI cable, while the C2G50188 is a Performance Series Premium High Speed HDMI cable.
