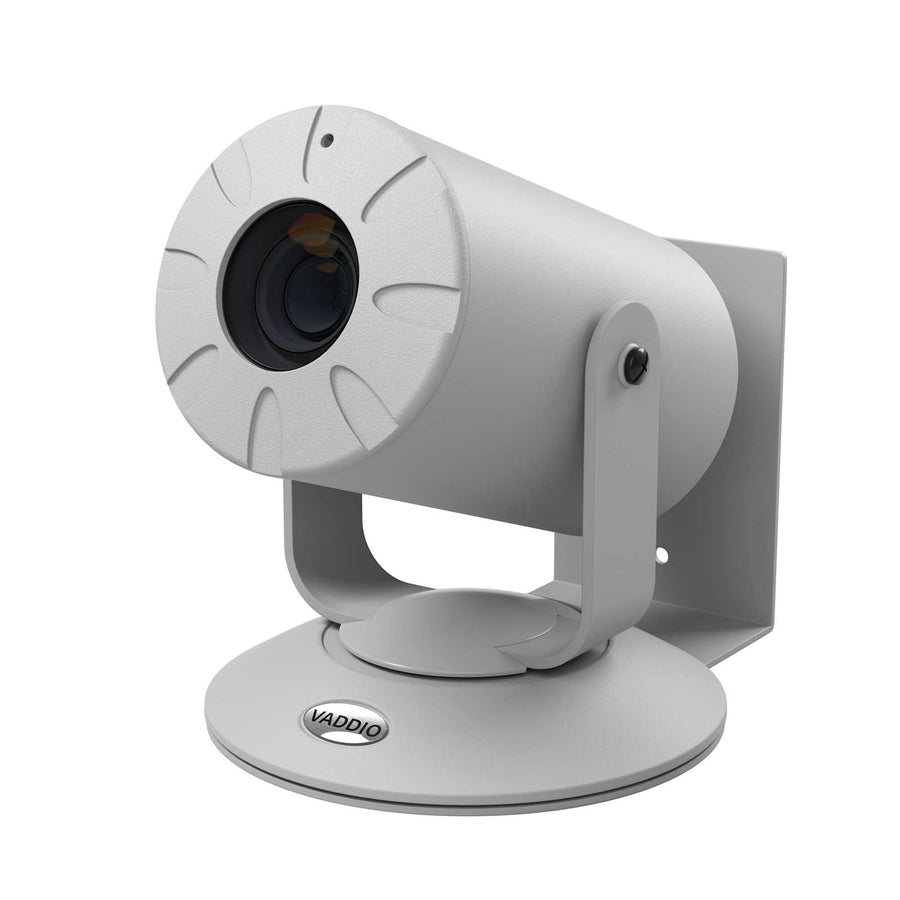

ZoomSHOT 4K with OneLINK Bridge System
UHD 4K camera with 30x optical zoom and OneLINK Bridge System for medium to large rooms
The Vaddio 999-69350-300W ZoomSHOT 4K with OneLINK Bridge System provides UHD 4K image quality for high-definition video capture in medium and large rooms. This white fixed camera features a 30x optical zoom and a 70.2° horizontal field of view. It is built with a 1/2.8 Exmor CMOS image sensor and delivers up to 2160p at 30 fps. For installation flexibility, this system includes a Quick-Connect QUSB capability and supports OneLINK Bridge Extension Systems. Control is managed via RS-232, IR Remote, or manual adjustments using the EZ Set tensioning system. The camera offers manual pan/tilt with a range of 30 degrees to negative 30 degrees and unlimited pan. It features automatic and manual settings for focus, gain, and white balance, and includes 16 preset positions for efficient operation. This TAA compliant solution is ideal for videoconferencing, lecture capture, and live events.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | Camera: 5.8 in (14.73 cm) QUSB: 6 in (15.24 cm) |
| Height | Camera: 7 in (17.78 cm) QUSB: 1.72 in (4.37 cm) |
| Max Distance Support | 150 ft (45.7 m) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | Camera: 3.5 lbs (1.59 kg) QUSB: 1.4 lbs (0.64 kg) |
| Shipping Weight | 1 lbs (0.5 kg) |
| Width | Camera: 5.5 in (14 cm) QUSB: 8.38 in (21.27 cm) |
| 3rd Party Control | RS232 |
All other specifications 35
| Camera Type | Fixed |
| Color | White |
| Compatible With | Vaddio |
| Control Method | IR RemoteRS232 |
| Estimated Room Size | Large RoomMedium Room |
| Field of View | 70.2 Degrees Wide End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.8 Exmor CMOS |
| Input Ports | EZ Power Video |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 2160p 30 |
| Minimum Illumination | 0.3 Lux |
| OneLINK Compatibility | Yes |
| Output Ports | HDMI 1.4bRS-232USB 3.0 |
| Pan and Tilt Range | Tilt 30 degrees to negative 30 degreesUnlimited Pan |
| Pan and Tilt Speed | Manual |
| Pixels | 2.14 Megapixel |
| Power Cord | US Cord |
| Power Supply | 208A24VDC |
| Power Type | EZ Power |
| Preset Positions | 16 |
| PTZ Motors | No Motors Manual |
| Quick-Connect Compatibility | QUSB |
| Signal Type | HD YPbPrHDMIRS 232USB 2.0 |
| Solution Type | Camera with Extension |
| TAA Compliant | Yes |
| Tri-Sync Motion | No |
| UPC | 840077509132 |
| White Balance | AutoManual |
| Zoom | 30x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Da-Lite Tensioned Cosmopolitan Series, 72.5" x 116" with Da-Mat - 70208L
70208L$3,646.40
16 PoE+ | 2 Combo RJ45/SFP Ports - 1Gb L2/L3 Managed Switch, US Power Cord
SW-505-16P-R$1,203.00
8 PoE+ | 2 RJ45 | 2 SFP Rear-Facing Ports - 1Gb L2/L3 Managed Switch, US Power Cord
SW-505-8P-R$657.00
Camera Shelf for Tempo™ Flat Panel Wall Mount System
AS3A100$191.20
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
6ft (1.8m) Core Series High Speed HDMI® Cable with Ethernet
CG56783$15.99
3ft (0.9m) Core Series High Speed HDMI® Cable with Ethernet
CG56782$12.99
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
Video Conferencing Camera Shelf – 9", for Extra-Large Displays
PAC810$190.40
Questions about this part
Will this camera fit my room size?
This system is specifically designed for use in medium to large rooms.
What is the pan and tilt range of the ZoomSHOT 4K?
The camera provides manual tilt from 30 degrees to negative 30 degrees and features unlimited pan.
What outputs are available on the OneLINK Bridge System?
The system provides simultaneous HDMI 1.4b, USB 3.0, and RS-232 outputs.
Can I use this as a standalone camera?
Yes, the ZoomSHOT 4K can be used as a standalone camera without an extension system if required.
What do I need for submittals regarding installation?
You can refer to the ZoomSHOT 4K Manual for installation details or the Wall Mount for ZoomSHOT and WideSHOT Cameras Drawing in PDF/DWG formats.
