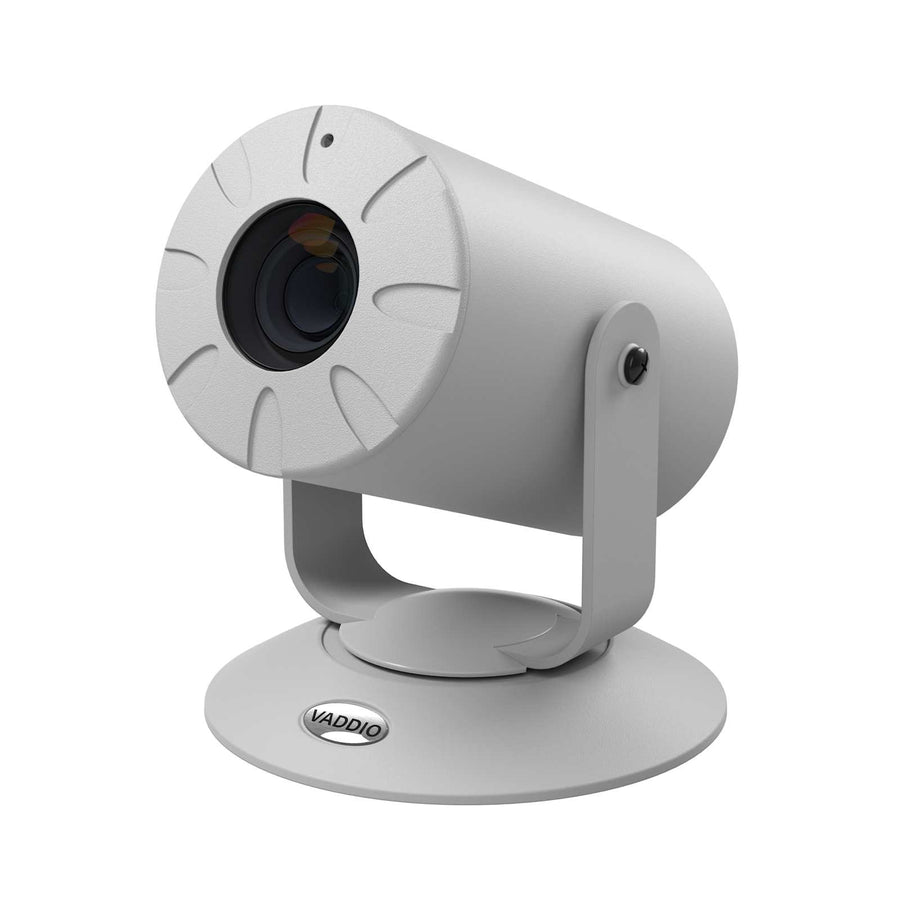

ZoomSHOT 4K
White fixed camera with 30x optical zoom, UHD 4K resolution, and manual pan/tilt for medium to large rooms
The Vaddio ZoomSHOT 4K (999-69350-001W) is a high-definition point-of-view camera providing UHD 4K video quality for professional AV environments. Designed for versatile use in large and medium rooms, this fixed camera is suitable for videoconferencing, lecture capture, live events, and UCC applications. It utilizes a 1/2.8 Exmor CMOS image sensor to deliver up to 2160p/30 resolution. The lens provides a 30x optical zoom with a 70.2-degree wide-end field of view. Operators can manage the camera through an IR remote control or via RS-232. For manual adjustments, the unit features a manual pan/tilt system with an EZ Set tensioning system, allowing for a tilt range of 30 degrees to negative 30 degrees and unlimited pan. This white-finish camera includes 16 preset positions to streamline frequent movements. For advanced integration, it is compatible with Quick-Connect systems like QMini and QUSB and can be used with an optional OneLINK HDMI or OneLINK Bridge extension system.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 5.8 in (14.7 cm) |
| Height | 7 in (17.8 cm) |
| Max Distance Support | 150 ft (45.7 m) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 3.5 lbs (1.6 kg) |
| Shipping Weight | 1 lbs (0.5 kg) |
| Width | 5.5 in (14 cm) |
| 3rd Party Control | RS232 |
All other specifications 33
| Camera Type | Fixed |
| Color | White |
| Compatible With | Vaddio |
| Control Method | IR RemoteRS232 |
| Estimated Room Size | Large RoomMedium Room |
| Field of View | 70.2 Degrees Wide End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.8 Exmor CMOS |
| Input Ports | EZ Power VideoRS232 |
| Manufacturer | Vaddio |
| Max Resolution | 2160p 30 |
| Minimum Illumination | 0.3 Lux |
| OneLINK Compatibility | No |
| Output Ports | HDMI 1.4bRS-232 |
| Pan and Tilt Range | Tilt 30 degrees to negative 30 degreesUnlimited Pan |
| Pan and Tilt Speed | Manual |
| Pixels | 2.14 Megapixel |
| Power Cord | EU Cord, UK Cord |
| Power Type | EZ Power |
| Preset Positions | 16 |
| PTZ Motors | No Motors Manual |
| Quick-Connect Compatibility | QMiniQUSB |
| Signal Type | RS 232 |
| Solution Type | Camera Only |
| TAA Compliant | Yes |
| Tri-Sync Motion | No |
| UPC | 840077509071 |
| White Balance | AutoManual |
| Zoom | 30x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Thin Profile Wall Mount for Vaddio ConferenceSHOT 10, ConferenceSHOT FX, and EasyIP 10 cameras
535-2000-244$101.70
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
Questions about this part
What is the field of view for the Vaddio ZoomSHOT 4K?
The camera features a 70.2-degree wide-end field of view with a 30x optical zoom.
Can I control the ZoomSHOT 4K via a serial connection?
Yes, the camera supports RS-232 control via its RS-232 input port for professional integration.
Is the Vaddio ZoomSHOT 4K TAA compliant?
Yes, this product is TAA compliant and carries CE and FCC certifications.
What is the pan and tilt range for this camera?
The manual pan/tilt system provides unlimited pan and a tilt range of 30 degrees to negative 30 degrees.
What accessories are compatible with the ZoomSHOT 4K?
It is compatible with 535-2000-244 Thin Profile Wall Mounts and 535-2000-206 Suspended Ceiling Mounts.
