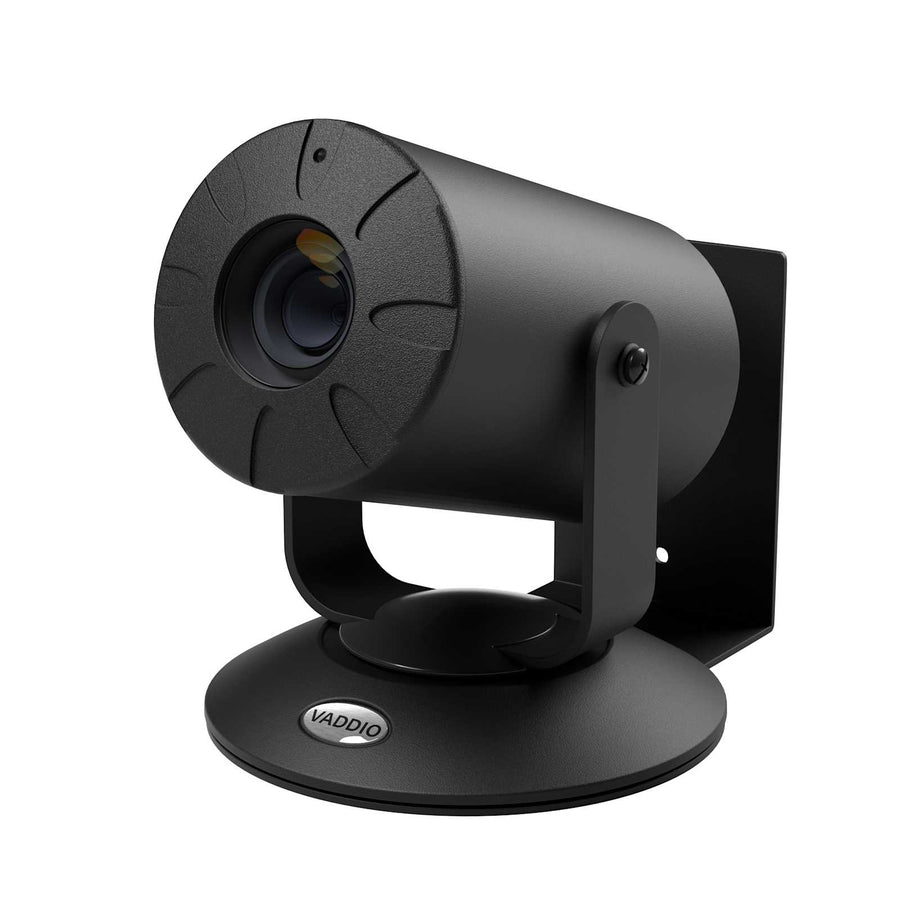

ZoomSHOT 4K with OneLINK HDMI System
UHD 4K point-of-view camera with 30x optical zoom, manual pan/tilt, and 70.2° field of view
The Vaddio ZoomSHOT 4K with OneLINK HDMI System provides high-definition video capture for medium to large rooms, including lecture halls and houses of worship. This system delivers UHD 4K image quality using a 1/2.8" Sony Exmor CMOS sensor. It features a 30x optical zoom and a 70.2° wide-end field of view. For manual positioning, the camera includes an EZ Set tensioning system for controlled pan and tilt, offering a 30-degree tilt range to -30 degrees and unlimited pan. The camera is designed for easy integration via RS-232 or IR remote control, supporting up to 16 preset positions. This TAA compliant solution supports both Auto and Manual focus, gain, and white balance settings. The camera itself is 5.5 in x 7 in x 5.8 in (14 cm x 17.78 cm x 14.73 cm) and weighs 3.5 lbs (1.59 kg), while the QMini component is 4.46 in x 1.24 in x 3.58 in (11.3 cm x 3.15 cm x 9.1 cm). For installation, the package includes a black thin profile wall mount and necessary mounting hardware.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | Camera: 5.8 in (14.73 cm) QMini: 3.58 in (9.1 cm) |
| Height | Camera: 7 in (17.78 cm) QMini: 1.24 in (3.15 cm) |
| Max Distance Support | 150 ft (45.7 m) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | Camera: 3.5 lbs (1.59 kg) QMini: 1.12 lbs (0.51 kg) |
| Shipping Weight | 1 lbs (0.5 kg) |
| Width | Camera: 5.5 in (14 cm) QMini: 4.46 in (11.3 cm) |
| 3rd Party Control | RS232 |
All other specifications 34
| Camera Type | Fixed |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteRS232 |
| Estimated Room Size | Large RoomMedium Room |
| Field of View | 70.2 Degrees Wide End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.8 Exmor CMOS |
| Input Ports | EZ Power VideoRS232 |
| Manufacturer | Vaddio |
| Max Resolution | 2160p 30 |
| Minimum Illumination | 0.3 Lux |
| OneLINK Compatibility | No |
| Output Ports | HDMI 1.4b, RS-232 |
| Pan and Tilt Range | Tilt 30 degrees to negative 30 degreesUnlimited Pan |
| Pan and Tilt Speed | Manual |
| Pixels | 2.14 Megapixel |
| Power Cord | US Cord |
| Power Supply | 208A24VDC |
| Power Type | EZ PowerLocal Power |
| Preset Positions | 16 |
| PTZ Motors | No Motors Manual |
| Quick-Connect Compatibility | QMini |
| Signal Type | USB 2.0 |
| Solution Type | Camera with Extension |
| TAA Compliant | Yes |
| Tri-Sync Motion | No |
| UPC | 840077509088 |
| White Balance | AutoManual |
| Zoom | 30x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Da-Lite Tensioned Cosmopolitan Series, 72.5" x 116" with Da-Mat - 70208L
70208L$3,646.40
16 PoE+ | 2 Combo RJ45/SFP Ports - 1Gb L2/L3 Managed Switch, US Power Cord
SW-505-16P-R$1,203.00
8 PoE+ | 2 RJ45 | 2 SFP Rear-Facing Ports - 1Gb L2/L3 Managed Switch, US Power Cord
SW-505-8P-R$657.00
Camera Shelf for Tempo™ Flat Panel Wall Mount System
AS3A100$191.20
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
6ft (1.8m) Core Series High Speed HDMI® Cable with Ethernet
CG56783$15.99
Thin Profile Wall Mount for Vaddio ConferenceSHOT 10, ConferenceSHOT FX, and EasyIP 10 cameras
535-2000-244$101.70
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
Video Conferencing Camera Shelf – 9", for Extra-Large Displays
PAC810$190.40
Questions about this part
Will this ZoomSHOT 4K work for my conferencing setup?
The ZoomSHOT 4K is designed for medium to large rooms, making it suitable for videoconferencing, distance learning classrooms, and live event IMAG systems.
What are the installation requirements for the ZoomSHOT 4K?

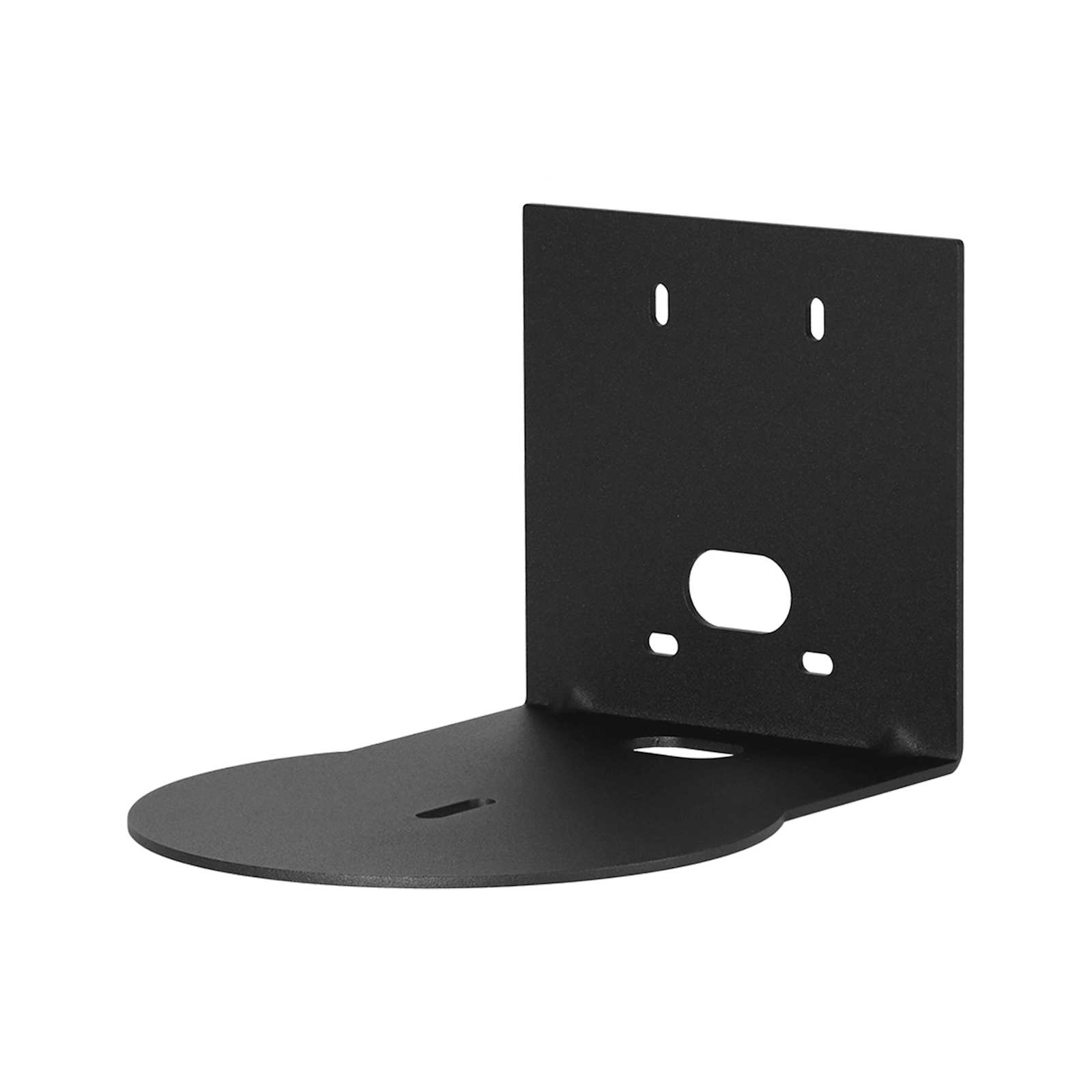

The package includes a black thin profile wall mount and mounting hardware. For ceiling installations, you can use Vaddio suspended ceiling mounts.
How do I control the camera's movement and settings?
You can manage the camera using an IR remote or RS-232 control. The manual pan and tilt use an EZ Set tensioning system and support 16 preset positions.
Can I use this camera without the extension system?
Yes, the ZoomSHOT 4K can be used as a standalone camera without an extension system, or it can be integrated via OneLINK HDMI or OneLINK Bridge Extension Systems.
What is the control interface for the ZoomSHOT 4K?
This camera supports RS-232 control for professional system integration and includes an IR remote for user-friendly operation.
