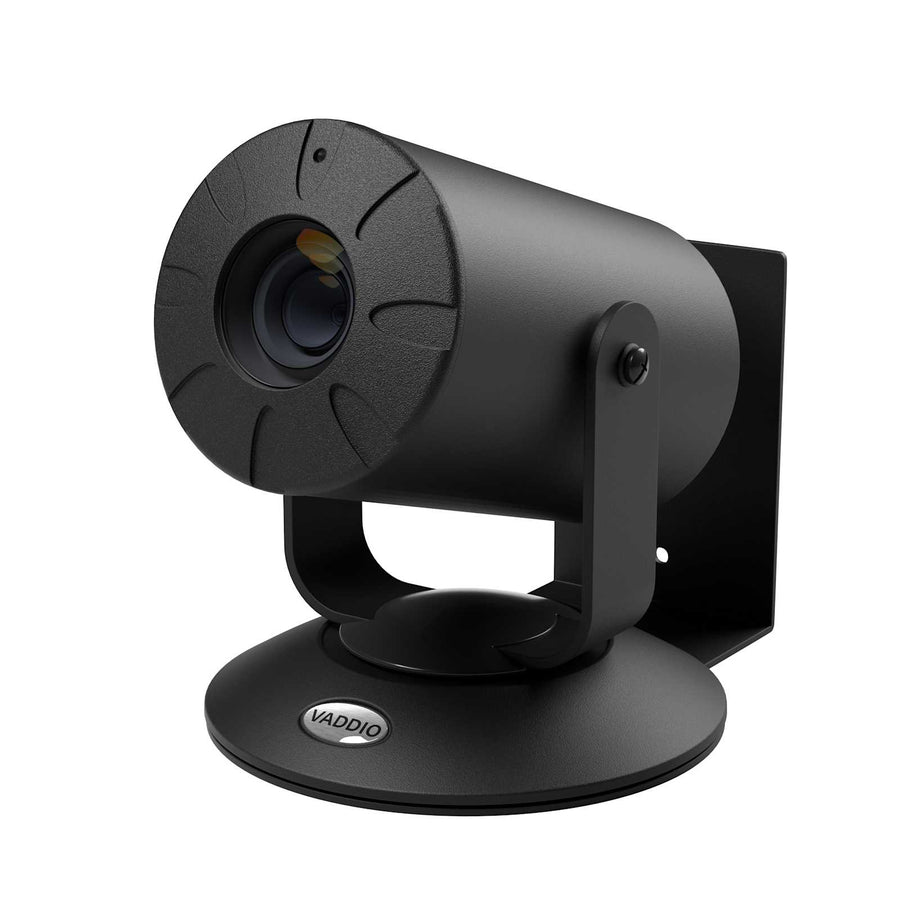

ZoomSHOT 4K with OneLINK HDMI System
UHD 4K fixed camera with 30x optical zoom, manual pan/tilt, and OneLINK HDMI extension system
The Vaddio ZoomSHOT 4K with OneLINK HDMI System (999-69350-201B) is a versatile UHD 4K camera designed for high-definition video capture in large and medium rooms. This system utilizes a 1/2.5” Sony Exmor 8.57 megapixel sensor to deliver 2160p at 30 fps. It features a 30x optical zoom with a 70.2-degree wide-angle field of view, making it suitable for various environments including lecture capture, videoconferencing, and live events. The camera provides manual pan and tilt control via an EZ Set tensioning system, with a pan range of unlimited movement and a tilt range from 30 degrees to negative 30 degrees. For control, users can utilize an IR remote or RS-232. The system supports signal transmission up to 150 ft (45.7 m) and is TAA compliant. This solution is ideal for professional A/V system integrators looking for a reliable point-of-view camera for UCC or classroom applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | Camera: 5.8 in (14.73 cm) QMini: 3.58 in (9.1 cm) |
| Height | Camera: 7 in (17.78 cm) QMini: 1.24 in (3.15 cm) |
| Max Distance Support | 150 ft (45.7 m) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | Camera: 3.5 lbs (1.59 kg) QMini: 1.12 lbs (0.51 kg) |
| Shipping Weight | 1 lbs (0.5 kg) |
| Width | Camera: 5.5 in (14 cm) QMini: 4.46 in (11.3 cm) |
| 3rd Party Control | RS232 |
All other specifications 34
| Camera Type | Fixed |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteRS232 |
| Estimated Room Size | Large RoomMedium Room |
| Field of View | 70.2 Degrees Wide End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.8 Exmor CMOS |
| Input Ports | EZ Power VideoRS232 |
| Manufacturer | Vaddio |
| Max Resolution | 2160p 30 |
| Minimum Illumination | 0.3 Lux |
| OneLINK Compatibility | No |
| Output Ports | HDMI 1.4b, RS-232 |
| Pan and Tilt Range | Tilt 30 degrees to negative 30 degreesUnlimited Pan |
| Pan and Tilt Speed | Manual |
| Pixels | 2.14 Megapixel |
| Power Cord | EU Cord, UK Cord |
| Power Supply | 208A24VDC |
| Power Type | EZ PowerLocal Power |
| Preset Positions | 16 |
| PTZ Motors | No Motors Manual |
| Quick-Connect Compatibility | QMini |
| Signal Type | USB 2.0 |
| Solution Type | Camera with Extension |
| TAA Compliant | Yes |
| Tri-Sync Motion | No |
| UPC | 840077509101 |
| White Balance | AutoManual |
| Zoom | 30x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Thin Profile Wall Mount for Vaddio ConferenceSHOT 10, ConferenceSHOT FX, and EasyIP 10 cameras
535-2000-244$101.70
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
Questions about this part
Will the ZoomSHOT 4K work with my existing OneLINK setup?
The ZoomSHOT 4K with OneLINK HDMI System is designed for use with OneLINK HDMI or OneLINK Bridge Extension Systems to simplify installation and cable management.
Can I use this camera as a standalone unit without an extension system?
Yes, this SKU can be used as a standalone camera without an extension system if your installation requirements allow for local power and direct connection.
What are the pan and tilt capabilities of the ZoomSHOT 4K?
This camera features manual pan and tilt with an EZ Set tensioning system, offering unlimited pan and a tilt range from 30 degrees to negative 30 degrees.
What do I need to do for the submittal documentation?
For installation and submittal needs, you can access the ZoomSHOT 4K Manual or the Wall Mount CAD/PDF drawings available in the resources section.
Is this camera TAA compliant for government projects?
Yes, this product is TAA compliant and holds FCC and CE certifications.
