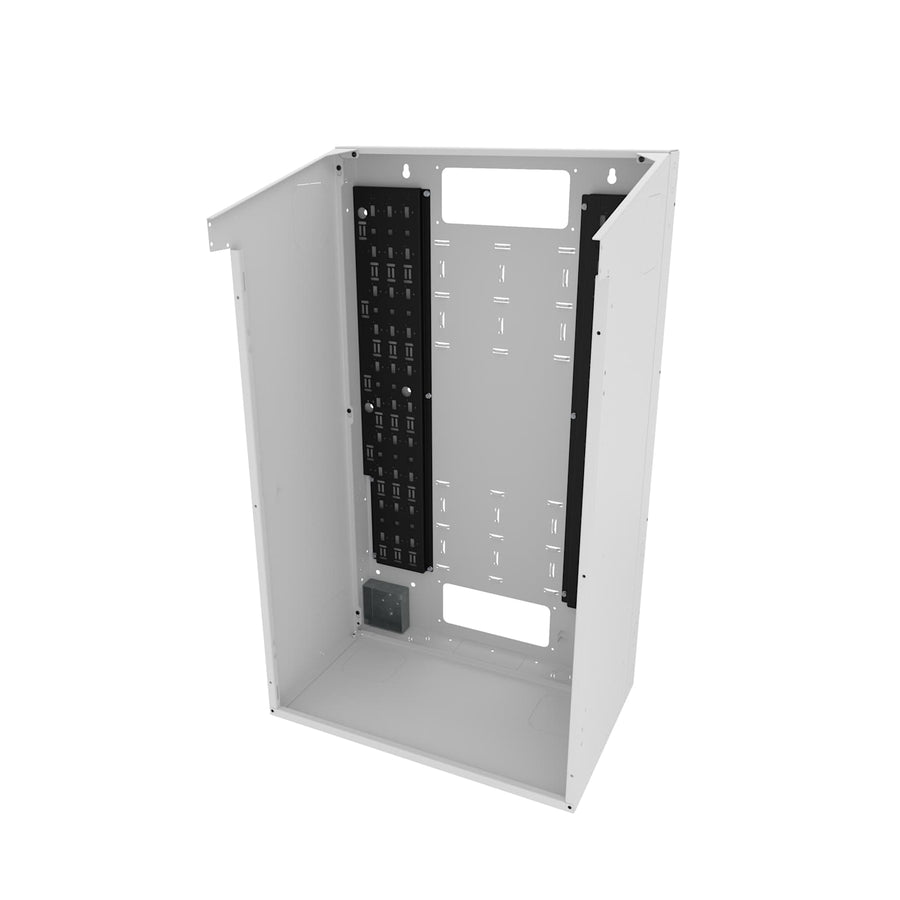

VWM Series Back Pan for Split Door, 42" High x 16" Deep - White
White back pan for split door vertical wall cabinets, 42" high, 16" deep, with 150 lbs UL load capacity
The Middle Atlantic VWM-BPSD-4216-WT is a white, textured powder coat back pan designed specifically for use with split door vertical wall cabinet options. This steel back pan features a 42" height and a 16" overall depth when installed off the wall, providing a 33.8" usable depth for equipment installation. It is engineered for use in vertical wall mount configurations where equipment is mounted with the knobs facing up. This specific model is forward compatible, featuring native mounting to support forward cable management in the backpan. The VWM-BPSD-4216-WT is TAA compliant and UL listed, with a UL load capacity of 150 lbs (68 kg). This unit is intended to be used with separate rackrail kits, which are available in fixed or pivot styles and can be moved vertically and laterally (left, center, or right) within the backpan. Installation requires the addition of rackrails, such as the 10-32 tapped or cage nut varieties, and the backpan is compatible with Lever Lock systems using the LL-VWM-BPK.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 16 in (40.6 cm) |
| Height | 42 in (106.7 cm) |
| Product Weight | 37 lbs (16.8 kg) |
| Shipping Weight | 47 lbs (21.3 kg) |
| UL Load Capacity | 150 lbs (68 kg) |
| Usable Depth | 33.8 in (85.9 cm) |
| Width | 25 in (63.5 cm) |
| Available Internationally | Yes |
All other specifications 11
| Color | White |
| Door Type | Split Door |
| Federal Ops Country of Origin | USA |
| Finish | Textured Powder Coat |
| Forward Compatible | Yes |
| Material | Steel |
| Rack Type | Wall |
| TAA Compliant | YesYes |
| UPC | 656747305825 |
| Certifications | CSA ListedGREENGUARDProp 65REACHRoHSTAATSCAUL Listed |
| Patents | www.legrandav.com/patents |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
1 RU Utility Panel, 10 Piece
UP1P$190.80
1 RU Utility Panel
UP1$25.20

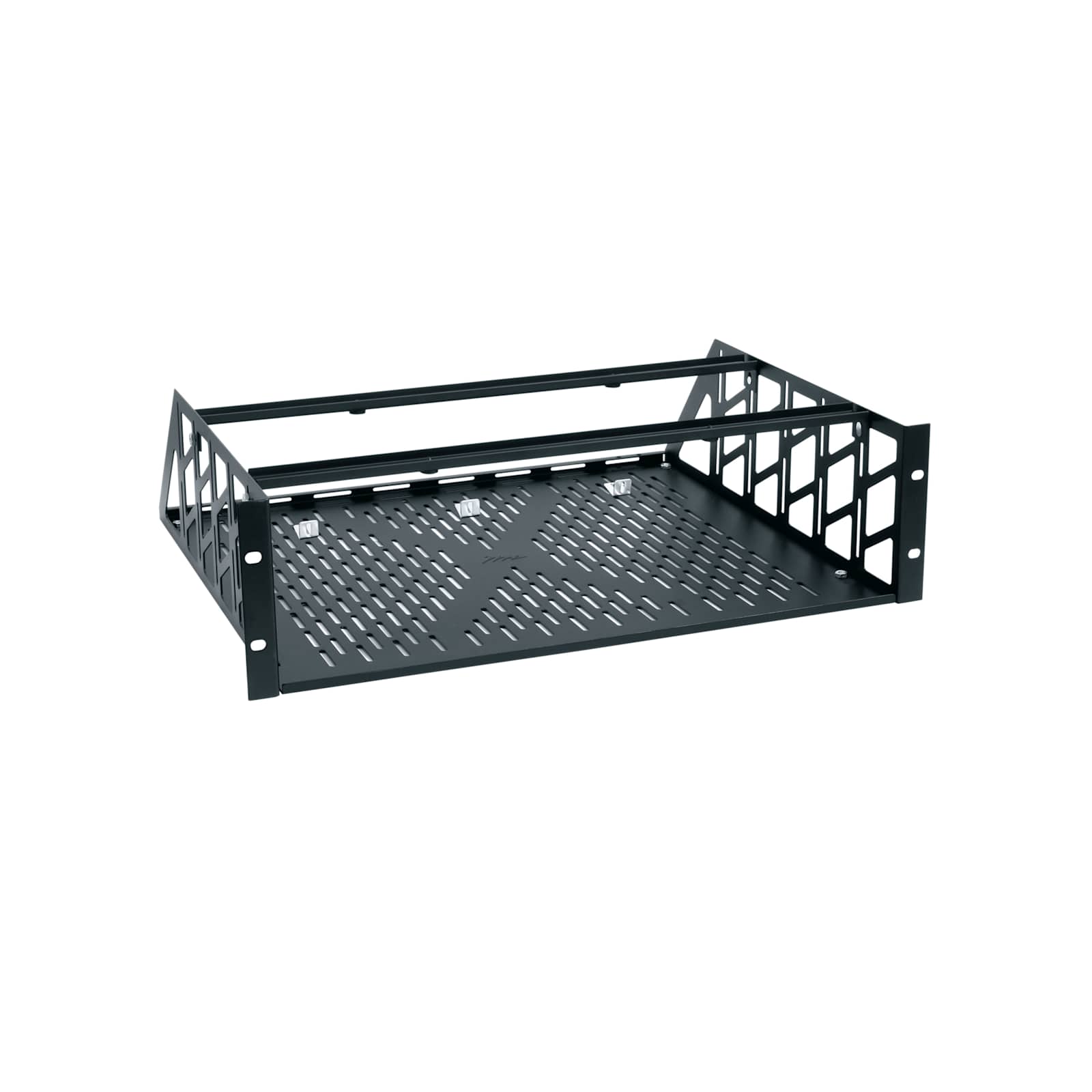

3 RU Clamping Rackshelf Knockdown
RC-3$124.20
1 RU Plastic Cable Manager, 4 Inches Deep
PHCM-1-4$54.90
Dry Contact Sensor Rlnk-Cont For Use With Premium+ PDU With RackLink™
RLNK-CONT$216.00

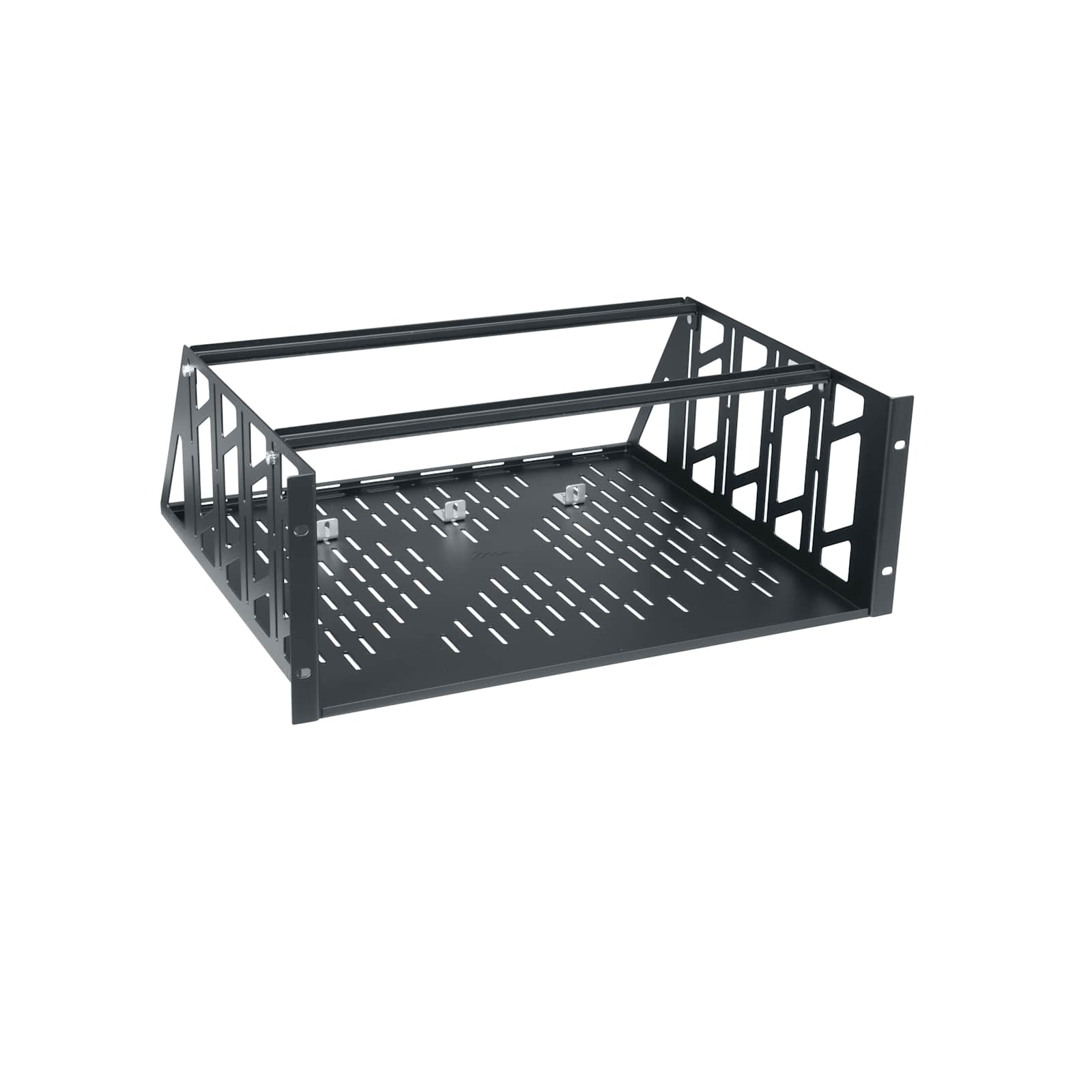

4 RU Clamping Rackshelf Knockdown
RC-4$138.60
2 RU Plastic Cable Manager, 3 Inches Deep
PHCM-2-3$61.20
1 RU Plastic Cable Manager, 2 Inches Deep
PHCM-1-2$51.30

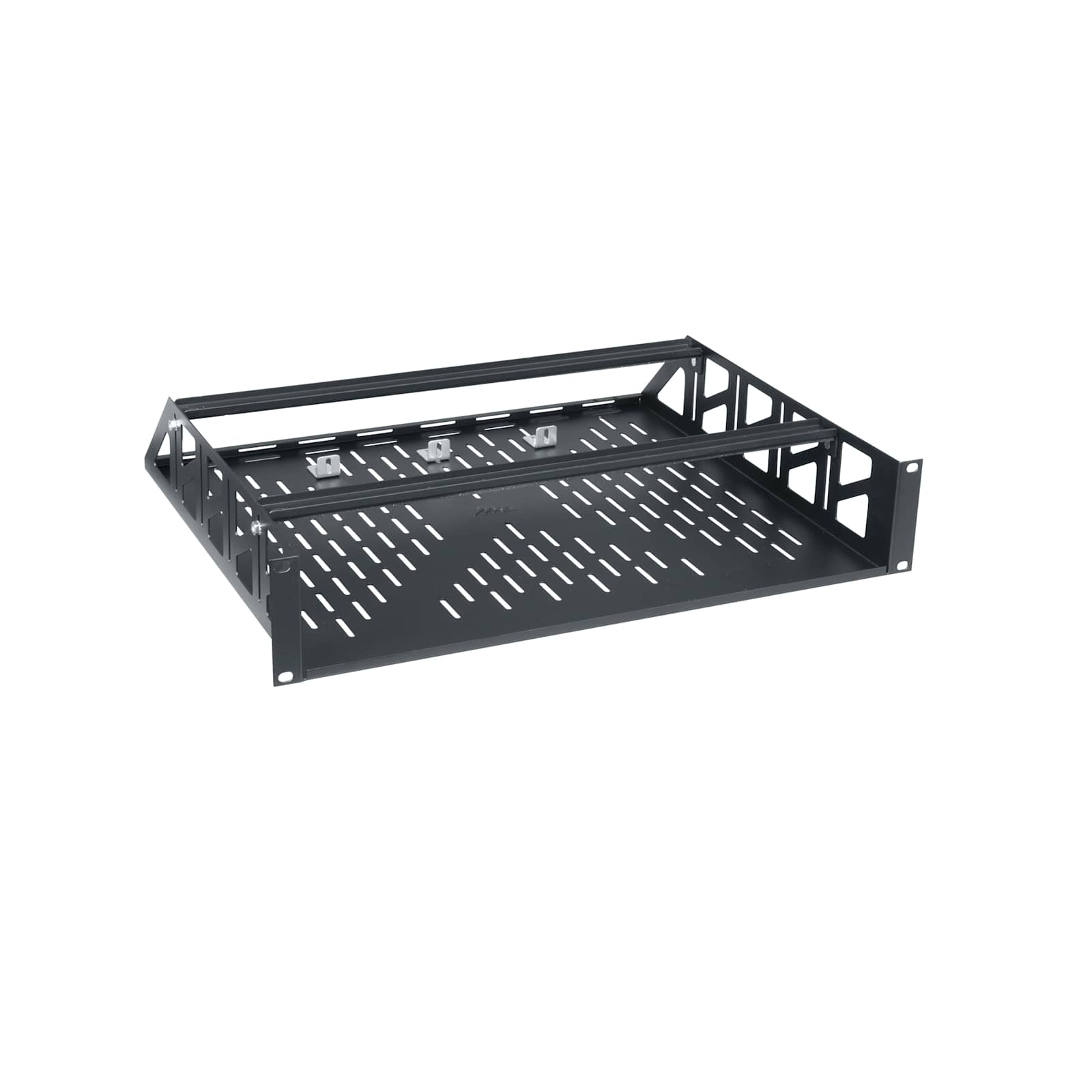

2 RU Clamping Rackshelf Knockdown
RC-2$117.00
Questions about this part
Do I need to purchase rackrails separately for the VWM-BPSD-4216-WT?
Yes, you must add rackrail kits to this backpan. VWM rackrail kits are available in 10-32 tapped or cage nut versions, and you can choose between fixed or pivot styles.
What is the usable depth for equipment in this back pan?
While the overall depth is 16" (40.6 cm) off the wall, the usable depth for equipment is 33.8" (85.9 cm).
Can I use Lever Lock with this white back pan?
Yes, this backpan accepts the Lever Lock system when used with the LL-VWM-BPK.
Is this back pan TAA compliant for federal projects?
Yes, the VWM-BPSD-4216-WT is TAA compliant and is manufactured in the USA.
What is the weight capacity of the VWM-BPSD-4216-WT?
This unit has a UL load capacity of 150 lbs (68 kg).
