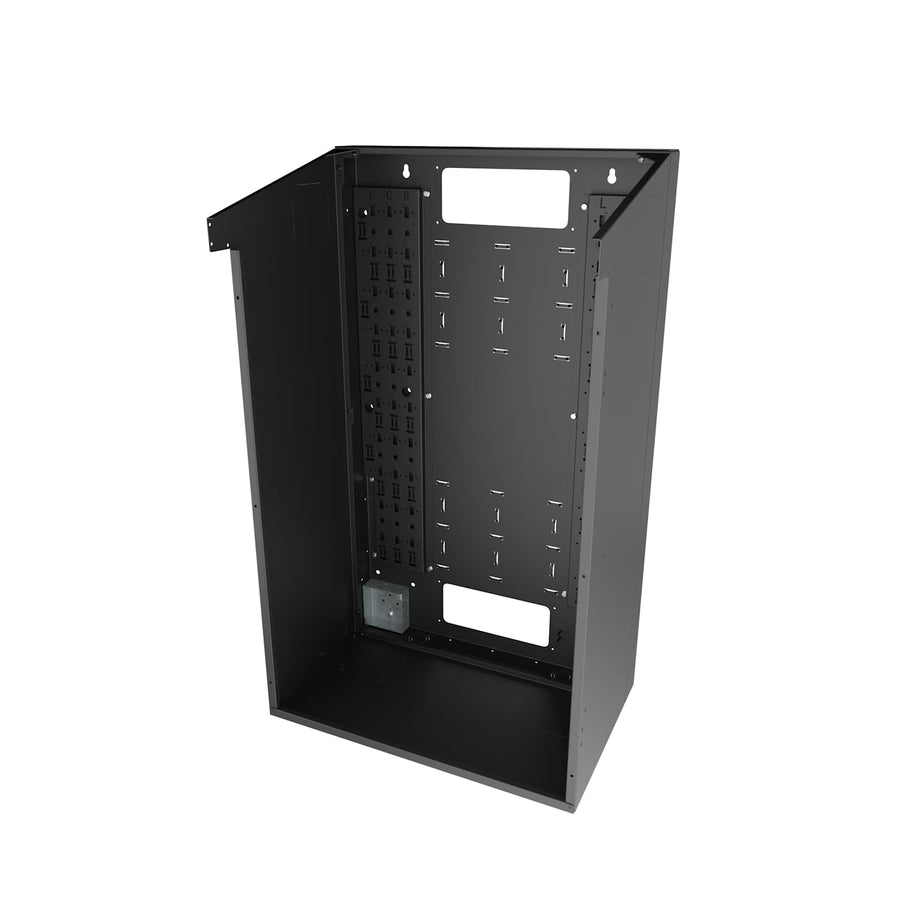

VWM Series Back Pan for Split Door, 42" High x 16" Deep - Black
Back pan for split door cabinets, 42" high x 16" deep, featuring 150 lbs UL load capacity and forward cable management compatibility
The VWM-BPSD-4216-BW is a specialized back pan designed specifically for use with Split Door cabinet options in the VWM Series. Measuring 42" high and 16" deep, this steel back pan provides a 33.8" usable depth for equipment mounting. It is engineered for vertical equipment installation with a knob-up orientation. This specific SKU features a black wrinkle powder coat finish and is TAA compliant. This unit is forward compatible with native mounting, allowing for forward cable management in the backpan to streamline wiring. For complete installation, rackrail kits must be added separately; available options include Fixed or Pivot style kits. The VWM-BPSD-4216-BW accepts the LL-VWM-BPK Lever Lock. Please note that this product is scheduled for discontinuation on December 1, 2026, with the VWM Preconfigs suggested as the alternative.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 16 in (40.6 cm) |
| Height | 42 in (106.7 cm) |
| Product Weight | 37 lbs (16.8 kg) |
| Shipping Weight | 47 lbs (21.3 kg) |
| UL Load Capacity | 150 lbs (68 kg) |
| Usable Depth | 33.8 in (85.9 cm) |
| Width | 25 in (63.5 cm) |
| Available Internationally | Yes |
All other specifications 11
| Color | Black |
| Door Type | Split Door |
| Federal Ops Country of Origin | USA |
| Finish | Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Material | Steel |
| Rack Type | Wall |
| TAA Compliant | YesYes |
| UPC | 656747305832 |
| Certifications | CSA ListedGREENGUARDProp 65REACHRoHSTAATSCAUL Listed |
| Patents | www.legrandav.com/patents |
Resources
You'll need these with it
4 1/2 Inch DC Fan Kit, 138 CFM
FAN2-DC$132.30
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
8 RU VWM Series Adjustable Rail/Mounting Bracket Kit
VWM-RR-8$109.80
VWM Door with Solid Access Fits 42" High x 16" Deep - Black
VWM-SSD-4216-BW$423.90
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
1 RU Utility Panel, 10 Piece
UP1P$190.80
1 RU Utility Panel
UP1$25.20
3 RU Clamping Rackshelf Knockdown
RC-3$124.20
1 RU Plastic Cable Manager, 4 Inches Deep
PHCM-1-4$54.90
Dry Contact Sensor Rlnk-Cont For Use With Premium+ PDU With RackLink™
RLNK-CONT$216.00
4 RU Clamping Rackshelf Knockdown
RC-4$138.60
Questions about this part
What do I need to buy to complete the rack installation?

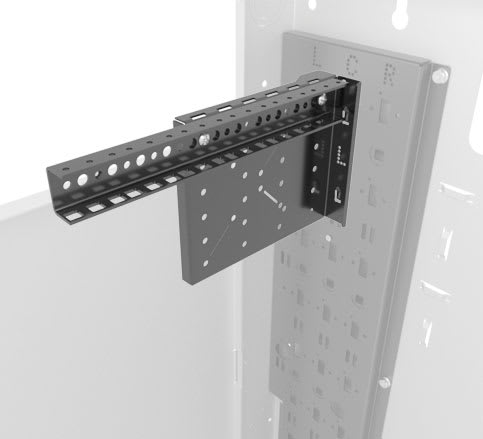

You must add rackrail kits to the back pan. These kits are available in Fixed or Pivot styles and are 10-32 tapped and Cage Nut compatible.
Will this back pan work with a split door?
Yes, the VWM-BPSD-4216-BW is designed specifically for use with Split Door cabinet options.
How is the equipment mounted in this back pan?
Equipment is mounted vertically within the backpan using a knob-up orientation.
What is the usable depth of the VWM-BPSD-4216-BW?
While the overall depth is 16 in (40.6 cm), the usable depth available for equipment is 33.8 in (85.9 cm).
What are the certification details for this unit?
This product is UL Listed, CSA Listed, and TAA compliant. It also holds GREENGUARD, RoHS, REACH, TSCA, and Prop 65 listings.
