VWM Series Back Pan for Split Door, 36" High x 16" Deep - Black
Vertical wall mount back pan for split door configurations, 36" high x 16" deep, 150 lbs UL load capacity, Black finish

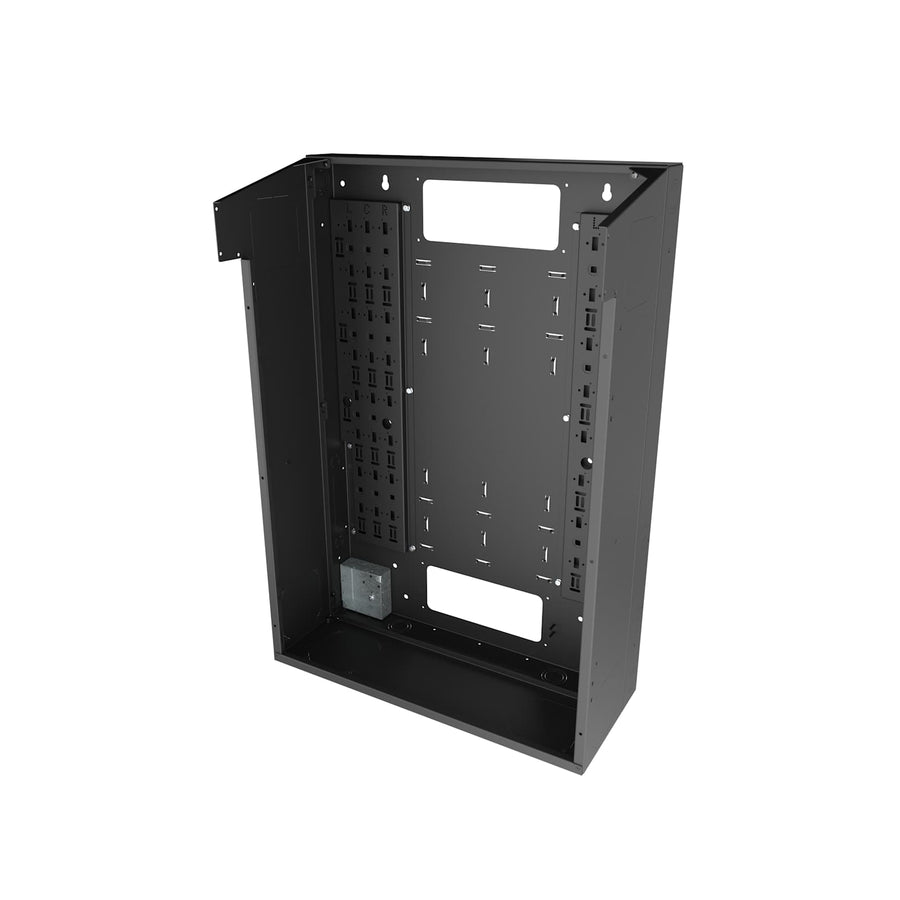

The VWM-BPSD-3616-BW is a steel back pan specifically designed for use with Split Door options in the Middle Atlantic VWM Series. This 36" high and 16" deep component allows for vertical equipment mounting in a knobs-up orientation. It features native mounting for forward cable management, making it forward compatible with integrated cabling solutions. This back pan is designed to be used with rackrail kits, which are available in fixed or pivot styles and can be moved vertically or laterally (left, center, or right) to accommodate different equipment heights. For securing the installation, the back pan accepts Lever Lock when paired with the LL-VWM-BPK accessory. This unit is UL listed with a load capacity of 150 lbs (68 kg) and features a black wrinkle powder coat finish. It is TAA compliant and manufactured in the USA.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 16 in (40.6 cm) |
| Height | 36 in (91.4 cm) |
| Product Weight | 27 lbs (12.3 kg) |
| Shipping Weight | 37 lbs (16.8 kg) |
| UL Load Capacity | 150 lbs (68 kg) |
| Usable Depth | 27.8 in (70.6 cm) |
| Width | 25 in (63.5 cm) |
| Available Internationally | Yes |
All other specifications 11
| Color | Black |
| Door Type | Split Door |
| Federal Ops Country of Origin | USA |
| Finish | Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Material | Steel |
| Rack Type | Wall |
| TAA Compliant | YesYes |
| UPC | 656747305764 |
| Certifications | CSA ListedGREENGUARDProp 65REACHRoHSTAATSCAUL Listed |
| Patents | www.legrandav.com/patents |
