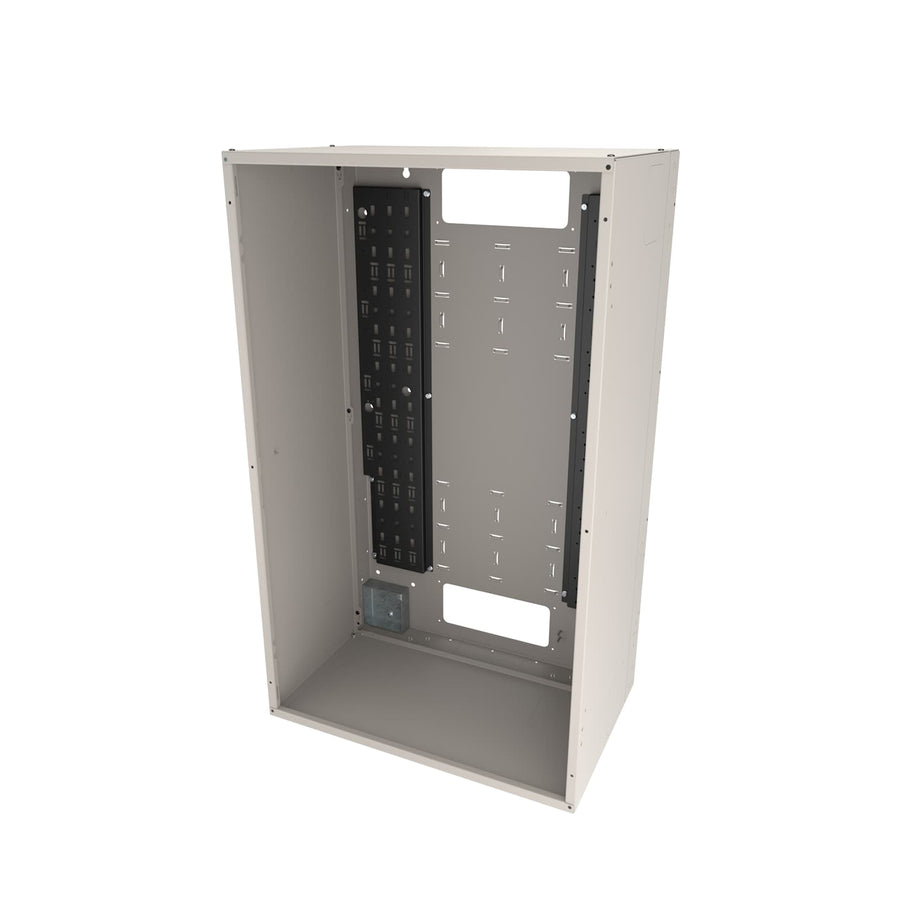

VWM Series Back Pan for Solid Door, 42" High x 16" Deep - Putty
Steel back pan for full solid doors, 42" high by 16" deep, finished in putty wrinkle powder coat
The Middle Atlantic VWM-BP-4216-PW is a steel back pan designed specifically for use with a Full Solid Door in a VWM series vertical wall mount cabinet. This component provides a 42" overall height and 16" overall depth off the wall, offering a 33.8" usable depth for equipment. To complete your installation, you must add rackrail; available kits can be fixed or pivot style and are 10-32 tapped or designed for cage nuts. These rackrails are easily moved up, down, left, center, or right to accommodate your specific layout. This model is forward compatible with native mounting for forward cable management in the backpan. For security, this back pan accepts Lever Lock with the LL-VWM-BPK accessory. The unit is finished in a durable putty wrinkle powder coat and carries a UL Load Capacity of 150 lbs (68 kg). It is TAA compliant and manufactured in the USA.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 16 in (40.6 cm) |
| Height | 42 in (106.7 cm) |
| Product Weight | 90 lbs (40.8 kg) |
| Shipping Weight | 100 lbs (45.4 kg) |
| UL Load Capacity | 150 lbs (68 kg) |
| Usable Depth | 33.8 in (85.9 cm) |
| Width | 25 in (63.5 cm) |
| Available Internationally | Yes |
All other specifications 11
| Color | Putty |
| Door Type | Full Door |
| Federal Ops Country of Origin | USA |
| Finish | Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Material | Steel |
| Rack Type | Wall |
| TAA Compliant | YesYes |
| UPC | 656747291357 |
| Certifications | CSA ListedGREENGUARDProp 65REACHRoHSTAATSCAUL Listed |
| Patents | www.legrandav.com/patents |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
1 RU Utility Panel, 10 Piece
UP1P$190.80
1 RU Utility Panel
UP1$25.20
3 RU Clamping Rackshelf Knockdown
RC-3$124.20
1 RU Plastic Cable Manager, 4 Inches Deep
PHCM-1-4$54.90
Dry Contact Sensor Rlnk-Cont For Use With Premium+ PDU With RackLink™
RLNK-CONT$216.00
4 RU Clamping Rackshelf Knockdown
RC-4$138.60
2 RU Plastic Cable Manager, 3 Inches Deep
PHCM-2-3$61.20
1 RU Plastic Cable Manager, 2 Inches Deep
PHCM-1-2$51.30
2 RU Clamping Rackshelf Knockdown
RC-2$117.00
Questions about this part
What rackrails do I need for the VWM-BP-4216-PW?
You must purchase rackrail kits separately. They are available in fixed or pivot styles and can be 10-32 tapped or cage nut compatible.
Can I use this back pan with a lever lock?
Yes, this back pan is compatible with the LL-VWM-BPK Lever Lock accessory.
Does this back pan support forward cable management?
Yes, this model is forward compatible with native mounting for forward cable management in the backpan.
What is the usable depth for equipment mounting?
While the overall depth is 16" (40.6 cm), the usable depth for equipment is 33.8" (85.9 cm).
Is this product TAA compliant?
Yes, the VWM-BP-4216-PW is TAA compliant and was made in the USA.
