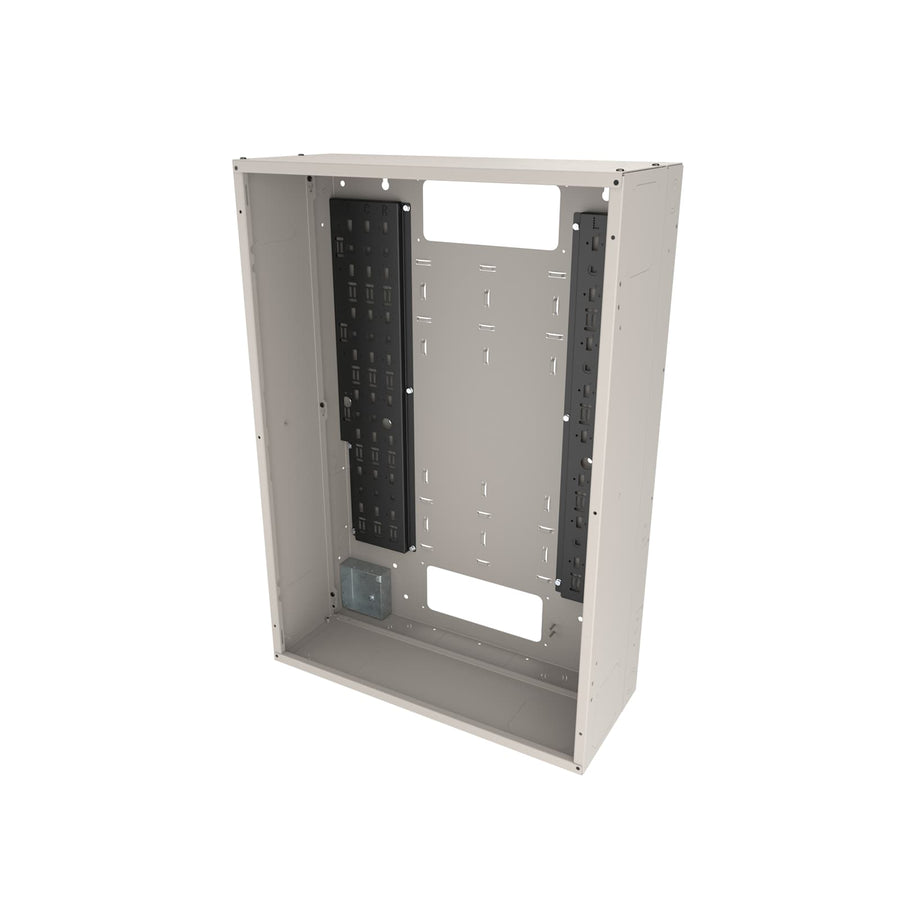

VWM Series Back Pan for Solid Door, 36" High x 16" Deep - Putty
Vertical wall mount back pan for full solid doors, 36" high x 16" deep, in a putty finish
The Middle Atlantic VWM-BP-3616-PW is a vertical wall mount back pan designed for use with a Full Solid Door. This 36" high x 16" deep steel back pan is finished in a durable Putty wrinkle powder coat. It is engineered for vertical equipment mounting where the hardware is positioned knobs up. This specific model is forward compatible with native mounting for backpan cable management. To complete your installation, you must add separate rackrail kits; these are available in both fixed and pivot styles and can be moved vertically or horizontally within the pan. The VWM series is compatible with Lever Lock systems using the LL-VWM-BPK. This component is part of a larger system and is UL listed, CSA listed, and TAA compliant for federal use. Please note this product is scheduled for discontinuation on December 1, 2026; the manufacturer suggests the VWM Preconfigs series as the alternative.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 16 in (40.6 cm) |
| Height | 36 in (91.4 cm) |
| Product Weight | 60 lbs (27.2 kg) |
| Shipping Weight | 70 lbs (31.8 kg) |
| UL Load Capacity | 150 lbs (68 kg) |
| Usable Depth | 27.8 in (70.6 cm) |
| Width | 25 in (63.5 cm) |
| Available Internationally | Yes |
All other specifications 11
| Color | Putty |
| Door Type | Full Door |
| Federal Ops Country of Origin | USA |
| Finish | Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Material | Steel |
| Rack Type | Wall |
| TAA Compliant | YesYes |
| UPC | 656747291296 |
| Certifications | CSA ListedGREENGUARDProp 65REACHRoHSTAATSCAUL Listed |
| Patents | www.legrandav.com/patents |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
1 RU Utility Panel, 10 Piece
UP1P$190.80
1 RU Utility Panel
UP1$25.20
3 RU Clamping Rackshelf Knockdown
RC-3$124.20
1 RU Plastic Cable Manager, 4 Inches Deep
PHCM-1-4$54.90
Dry Contact Sensor Rlnk-Cont For Use With Premium+ PDU With RackLink™
RLNK-CONT$216.00
4 RU Clamping Rackshelf Knockdown
RC-4$138.60
2 RU Plastic Cable Manager, 3 Inches Deep
PHCM-2-3$61.20
1 RU Plastic Cable Manager, 2 Inches Deep
PHCM-1-2$51.30
2 RU Clamping Rackshelf Knockdown
RC-2$117.00
Questions about this part
What rackrails do I need for the VWM-BP-3616-PW?
You must purchase rackrail kits separately for this back pan. VWM Rackrail kits are available in fixed or pivot styles and are 10-32 tapped or Cage Nut compatible.
Is the VWM-BP-3616-PW TAA compliant?
Yes, this back pan is TAA compliant and is manufactured in the USA, making it suitable for federal operations.
How do I secure a Lever Lock to this back pan?
The VWM-BP-3616-PW accepts the LL-VWM-BPK Lever Lock system.
What is the load capacity for this wall mount back pan?
The unit has a UL-listed load capacity of 150 lbs (68 kg).
What is the difference between this and the VWM Preconfigs?
This specific SKU is part of the standard VWM series, whereas VWM Preconfigs is the manufacturer's recommended alternative for future installations.
