VWM Series Back Pan for Solid Door, 36" High x 16" Deep - Black
Vertical wall mount back pan for full solid doors, 36" high x 16" deep, 150 lbs UL load capacity

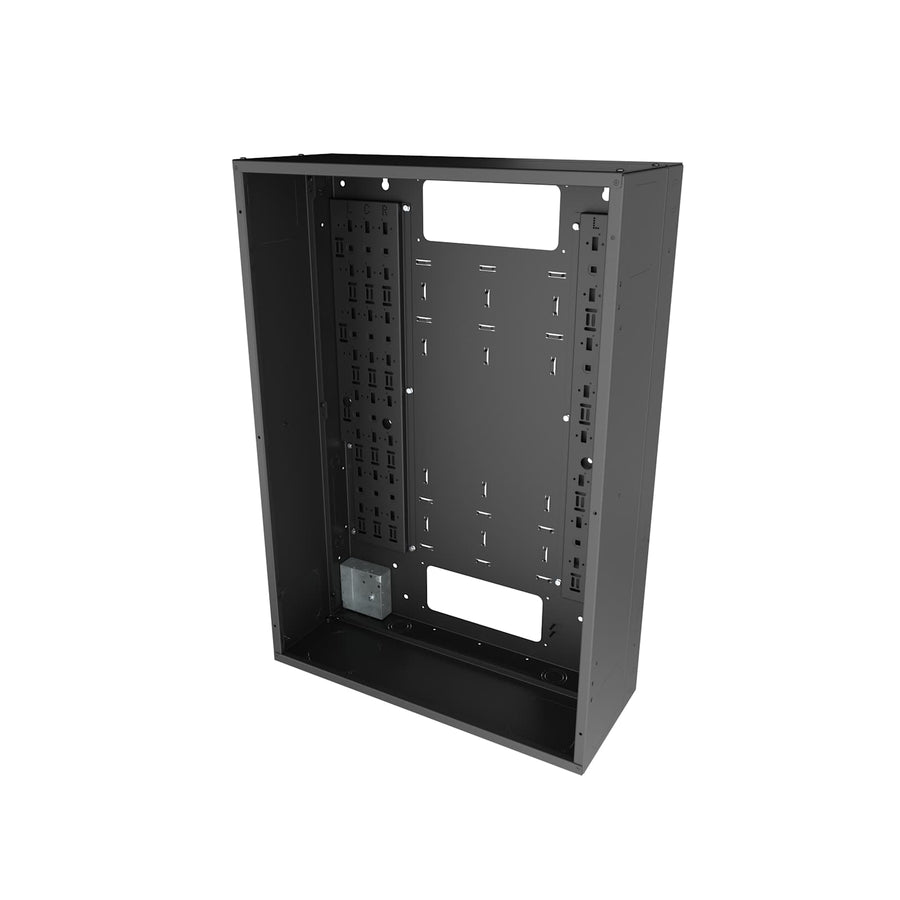

The VWM-BP-3616-BW is a steel back pan designed specifically for use with a full solid door within the VWM series vertical wall mount enclosures. Measuring 36" in height and 16" in depth, this component provides a 27.8" usable depth for equipment installation. The unit is finished in a durable black wrinkle powder coat and is TAA compliant. This specific back pan is forward compatible, featuring native mounting to support forward cable management in the backpan. To complete the installation, rackrails must be added separately. These rackrails, which are available in both fixed or pivot styles, are 10-32 tapped and designed for cage nut use. The rackrails are highly versatile, allowing for movement from the left, center, or right, as well as adjustment up or down. For secured installation, this back pan accepts the Lever Lock system when used with the LL-VWM-BPK accessory.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 16 in (40.6 cm) |
| Height | 36 in (91.4 cm) |
| Product Weight | 60 lbs (27.2 kg) |
| Shipping Weight | 70 lbs (31.8 kg) |
| UL Load Capacity | 150 lbs (68 kg) |
| Usable Depth | 27.8 in (70.6 cm) |
| Width | 25 in (63.5 cm) |
| Available Internationally | Yes |
All other specifications 11
| Color | Black |
| Door Type | Full Door |
| Federal Ops Country of Origin | USA |
| Finish | Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Material | Steel |
| Rack Type | Wall |
| TAA Compliant | YesYes |
| UPC | 656747291302 |
| Certifications | CSA ListedGREENGUARDProp 65REACHRoHSTAATSCAUL Listed |
| Patents | www.legrandav.com/patents |
