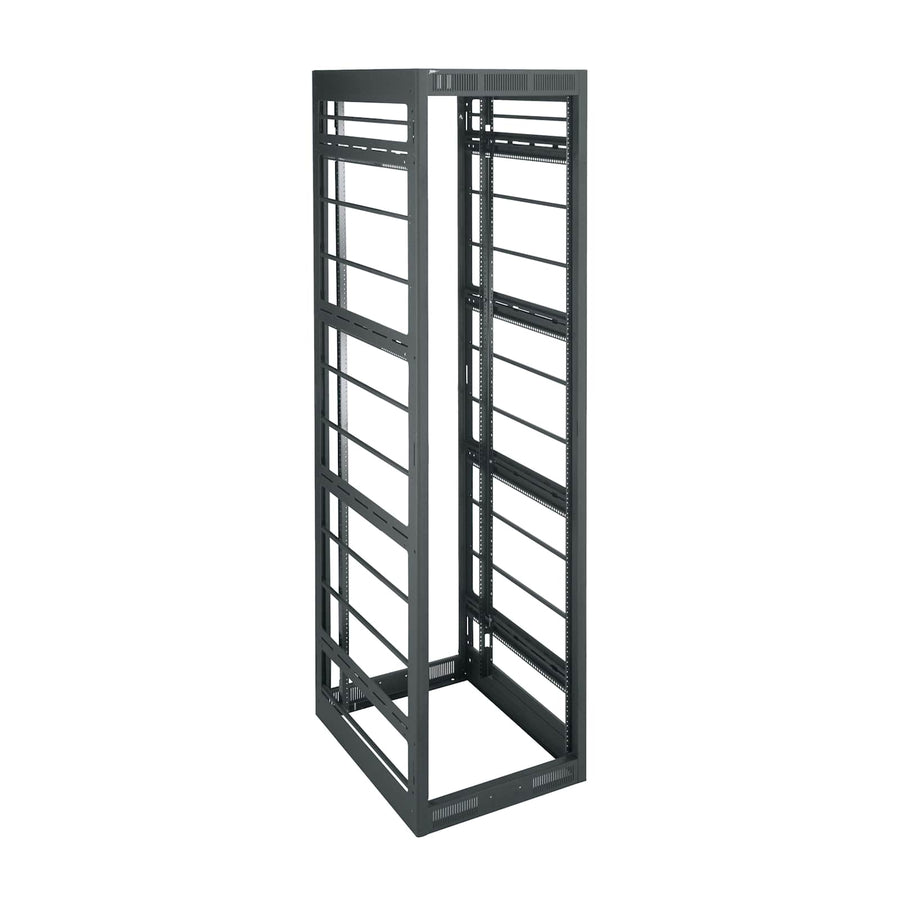

VRK Series 22 Inch Wide Rack - VRK-44-42HLRD
44 RU 22" wide broadcast rack with 42" depth, featuring seismic certification and fully welded construction
The VRK-44-42HLRD is a 44 RU broadcast standard 22" wide rack designed specifically for the secure mounting of video and AV equipment. This floor-standing enclosure features a 42 in (106.7 cm) depth and a total height of 83.14 in (211.2 cm), providing a 77 in (195.6 cm) usable height and a 39.5 in (100.3 cm) usable depth. Built with fully welded construction for maximum strength, this rack is ASCE 7-10 seismic certified, making it suitable for demanding environments. The internal architecture includes built-in horizontal lacing bars set on 7" centers to facilitate quick tie-and-slide lacing of video cable bundles. The front and rear adjustable 10-32 threaded rackrails include numbered spaces for efficient component installation. This TAA compliant unit also supports gangable configurations, allowing multiple racks to be joined when fully loaded to create a unified enclosure system.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 42 in (106.7 cm) |
| Height | 83.14 in (211.2 cm) |
| Rack Units | 44 RU |
| Shipping Weight | 197 lbs (89.4 kg) |
| Usable Depth | 39.5 in (100.3 cm) |
| Usable Height | 77 in (195.6 cm) |
| Width | 22 in (55.9 cm) |
| Federal Ops Country of Origin | USA |
All other specifications 8
| Finish | Textured Black Powder Coat |
| Gangable | Yes |
| Rack Rail Type | 10-32 |
| Rear Door | No |
| TAA Compliant | Yes |
| UPC | 656747182501 |
| ASCE Number | 7-10 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
220 CFM Fan Top with Controller
MW-4QFT-FC$1,110.60
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
44 RU Side Panels for 42-43 Inch Deep MRK or DRK Racks
SPN-44-423$1,434.60
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Power Strip, 24 Outlet, 30A, 2 Circuits Twistlock Plug
PD-2X1215TL-30CB$1,429.20
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Questions about this part
Is the VRK-44-42HLRD suitable for seismic locations?
Yes, this rack features ASCE 7-10 seismic certification and is built with a fully welded construction for increased strength.
What is the usable space inside the VRK-44-42HLRD?
The rack provides a usable height of 77 in (195.6 cm) and a usable depth of 39.5 in (100.3 cm).
Can I add side panels to this rack?
Yes, compatible side panels such as the SPN-44-423 are available for 44 RU racks with 42-43 inch depths.
Does this rack support cable management for video bundles?
Yes, the enclosure includes built-in horizontal lacing bars positioned on 7" centers to support tie-and-slide lacing.
What type of rackrails are used in this VRK series rack?
It uses standard front and rear adjustable 10-32 threaded rackrails that feature numbered spaces for easier installation.
