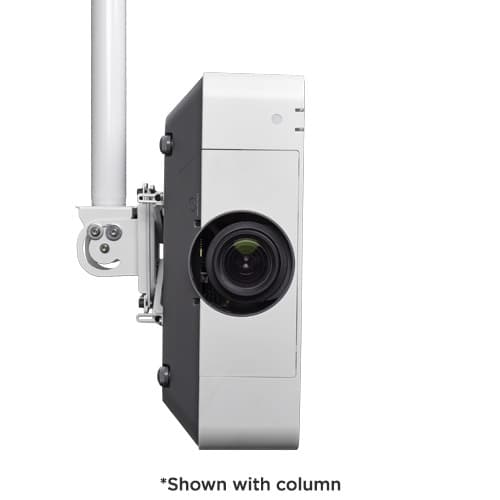

VPAUW Vertical and Portrait Projector Mount - White
White ceiling mount for vertical and portrait projection, supports up to 75 lbs with independent roll, pitch, and yaw adjustments
The Chief VPAUW is a specialized white ceiling mount designed to facilitate vertical and portrait projection, making it a practical solution for digital signage installations. This mount is engineered to work with projectors that possess multi-directional capabilities, allowing for non-standard orientation requirements. It features a universal interface with 6 projector attachment points and includes adjustable mounting legs and feet to accommodate various installation needs. For rapid and precise projector registration, the system offers independent roll, pitch, and yaw adjustments, including a 360° pitch and 360° yaw. A significant advantage for installers is the quick connect/disconnect feature, which allows for easy servicing while maintaining preset adjustments and registration when the projector is disconnected. This unit has a weight capacity of 75 lbs (34 kg) and is TAA compliant and UL listed. Please note that this mount requires a column and ceiling adapter, which must be ordered separately.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 5 in (12.7 cm) |
| Height | 5.5 in (14 cm) |
| Overall Dimensions | 5.5 x 6 x 5” (139.7 x 152.4 x 177.8 mm) |
| Shipping Weight | 7.17 lbs (3.3 kg) |
| Weight Capacity | 75 lbs (34 kg) |
| Width | 6 in (15.2 cm) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Adjustments | Pitch: 360°Roll: 90°Yaw: 360° |
All other specifications 9
| Application | Ceiling |
| Color | White |
| Interface Type | Universal |
| Orientation | Portrait |
| Solution Type | Universal |
| Special Features | Vertical and Portrait Projection |
| TAA Compliant | Yes |
| UPC | 841872168333 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the Chief VPAUW fit my projector?
This mount is verified against 186 display models from 19 manufacturers, including Panasonic PT-LRW35U, Epson BrightLink 775F, Christie DWU1400-GS, ViewSonic LS550W, Optoma ZH420, and Eiki C735.
What else do I need to complete the installation?
The VPAUW requires a Chief column and ceiling adapter, which are sold separately; check the accessories tab for compatible items like the CMS443 Extension Column and Ceiling Mount Kit.
Can I service the projector without losing my alignment?
Yes, the quick connect/disconnect feature allows for easy installation and servicing while ensuring the projector maintains its registration and preset adjustments once reconnected.
Is this mount compatible with Chief SLB/SLM/SSB/SSM interface brackets?
No, the VPAUW is not compatible with other Chief projector interface brackets such as the SLB, SLM, SSB, or SSM series.
What is the maximum weight this mount can support?
The VPAUW is rated for a weight capacity of 75 lbs (34 kg) for ceiling applications.
