Internal Joist Ceiling Kit
Internal joist ceiling kit for projector installations, adapts to 1.5" NPT columns with a 50 lbs capacity

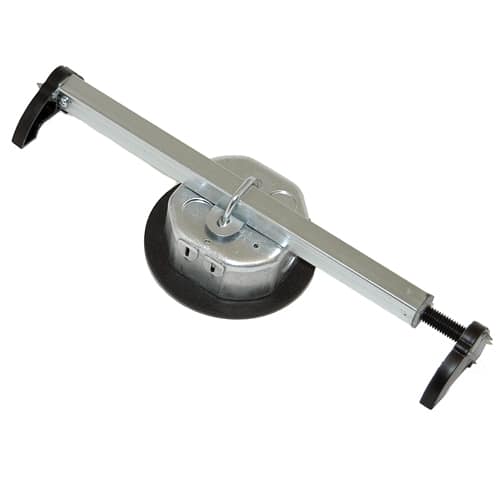

The Chief CMA165 Internal Joist Ceiling Kit simplifies projector installations in both new construction and finished ceiling environments. This adapter kit allows an installer to suspend a projector between existing ceiling joists using only a 4" hole. The kit includes a junction box mounting brace and a 5" round plate designed to mate with standard fan mounting junction boxes. The plate is compatible with 1.5" NPT extension columns and provides an adjustable extension range of 16" - 24" (40.64cm - 60.96cm). This solution is specifically designed to accommodate common ceiling layouts by expanding to fit either 16" or 24" joist spacing. With a weight capacity of 50 lbs (22.7 kg), this kit offers a stable mounting method similar to a standard ceiling fan installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 24 in (61 cm) |
| Extension | 16" - 24" (40.64cm - 60.96cm) |
| Height | 6 in (15.2 cm) |
| Overall Dimensions | 6.0" x 5.0" x 24.0" (152 x 127 x 610 mm) |
| Shipping Weight | 4 lbs (1.8 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 5 in (12.7 cm) |
| Accessory Type | Ceiling Plates and Adapters |
| Color | Silver |
| TAA Compliant | Yes |
| UPC | 841872038544 |
| Certifications | TAA |
Resources
Questions about this part
Will the CMA165 fit my existing ceiling joists?
The kit is designed to expand to accommodate either 16" or 24" joist spacing.
What type of extension column does the CMA165 require?
The 5" round plate included in this kit adapts specifically to 1.5" NPT extension columns.
What is the maximum weight capacity for this projector kit?
The CMA165 has a weight capacity of 50 lbs (22.7 kg).
Can I use this with a standard junction box?
Yes, the ceiling plate is designed to mate with a standard fan mounting junction box.
Which document should I use for the submittal process?
The CMA165 Technical Drawing (PDF) is available for use in project submittals.
