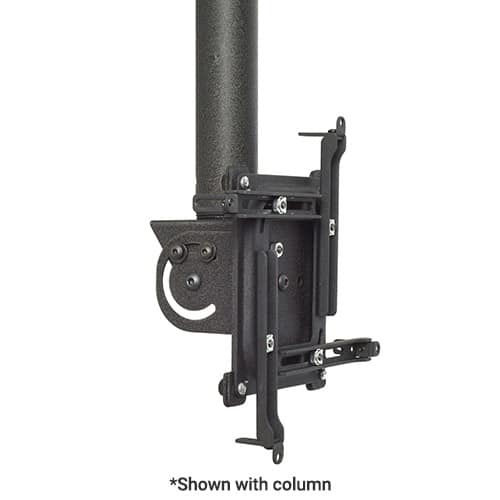

VPAUB Vertical and Portrait Projector Mount - Black
Universal ceiling mount for vertical and portrait projection, 75 lbs capacity, with independent roll, pitch, and yaw adjustments
The Chief VPAUB is a dedicated solution for projectors requiring non-standard orientations, specifically designed for vertical and portrait digital signage applications. This mount provides the precise positioning needed for multi-direction capable projectors through independent roll, pitch, and yaw adjustments. The system allows for quick and precise projector registration, featuring a quick connect/disconnect mechanism that simplifies installation and servicing. This feature ensures that even when the mount is disconnected for maintenance, preset adjustments are maintained without losing registration. Built with solid steel construction, the VPAUB is UL listed and TAA compliant. This universal interface is compatible with 6 projector attachment points and features adjustable mounting legs and feet to facilitate a secure installation. Please note that this mount is not compatible with other Chief projector interface brackets such as the SLB, SLM, SSB, or SSM. To complete the installation, this unit requires a column and ceiling adapter, which must be ordered separately.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 5 in (12.7 cm) |
| Height | 5.5 in (14 cm) |
| Overall Dimensions | 5.5 x 6 x 5” (139.7 x 152.4 x 177.8 mm) |
| Shipping Weight | 7.09 lbs (3.2 kg) |
| Weight Capacity | 75 lbs (34 kg) |
| Width | 6 in (15.2 cm) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Adjustments | Pitch: 360°Roll: 90°Yaw: 360° |
All other specifications 9
| Application | Ceiling |
| Color | Black |
| Interface Type | Universal |
| Orientation | Portrait |
| Solution Type | Universal |
| Special Features | Vertical and Portrait Projection |
| TAA Compliant | Yes |
| UPC | 841872168265 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
CMS0305, 3-5' Adjustable Extension Column, Pole
CMS0305$185.60
6 Inch (152 mm) Ceiling Plate with Adjustable Column
CMA700$150.40
CMA372, Offset Unistrut Adapter
CMA372$66.40
6 Inch (152 mm) Ceiling Plate with Adjustable Column in White
CMA700W$150.40
Large Venue Vibration Isolating Coupler, Black
CMA348$588.00
In-Ceiling Storage Enclosure-CMA170
CMA170$263.20
CMS018024W, 18-24 Inch Adjustable Extension Column, Pole
CMS018024W$153.60
CMS018024, 18-24 Inch Adjustable Extension Column, Pole
CMS018024$153.60
Column Storage Shelf, White
CMA480W$280.00
CMS036, 36 Inch Fixed Extension Column, Pole
CMS036$53.60
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
Verified fitment
Questions about this part
Will the VPAUB fit my projector?
The mount is verified against 186 display models from 19 manufacturers, including the Panasonic PT-LRW35U, Epson BrightLink 760Wi, and Christie DWU1400-GS.
What else do I need to buy to install this?
This mount requires a separate column and ceiling adapter for a complete installation; compatible options include the CMA700 ceiling plate or CMA372 offset Unistrut adapter.
Can I service the projector without losing alignment?
Yes, the quick connect/disconnect feature allows for easy servicing while maintaining your preset adjustments once reconnected.
What is the weight capacity of the VPAUB?
The mount is rated for a weight capacity of 75 lbs (34 kg).
What documents are available for submittals?
Technical drawings are available in both DWG and PDF formats, and a dedicated installation manual is provided for installation guidance.
