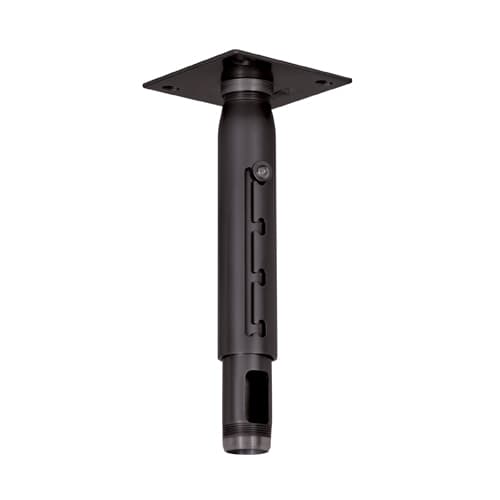

6 Inch (152 mm) Ceiling Plate with Adjustable Column
Ceiling plate and adjustable extension column for structural installations, featuring a 12"–18" extension range and 500 lbs weight capacity
The Chief CMA700 provides a structural ceiling installation solution by combining a 6 in (15.2 cm) x 6 in (15.2 cm) ceiling plate with an adjustable extension column. This kit is designed for installers requiring a cost-effective way to complete structural ceiling mounts in a single order. The included column features an adjustable extension range of 12"–18" (30.48 cm – 45.72 cm) and a total height of 18 in (45.7 cm). Built for heavy-duty applications, this assembly supports a weight capacity of 500 lbs (226.8 kg) and utilizes a 1.5" NPT connection. This TAA compliant black finish assembly is part of the Chief Ceiling Plate with Adjustable Column series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Plate Size | 6 in (15.2 cm) |
| Depth | 6 in (15.2 cm) |
| Extension | 12" - 18" (30.48cm - 45.72cm) |
| Height | 18 in (45.7 cm) |
| Overall Dimensions | 18.0" x 6.0" x 6.0" (457 x 152 x 152 mm) |
| Shipping Weight | 8 lbs (3.6 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 6 in (15.2 cm) |
All other specifications 5
| Accessory Type | Ceiling Plates and Adapters |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872002804 |
| Certifications | TAA |
Resources
Questions about this part
Will the CMA700 fit my ceiling installation?
The CMA700 uses a 1.5" NPT connection to integrate with your structural ceiling setup. It includes a 6 in (15.2 cm) square ceiling plate.
How much weight can this ceiling plate and column assembly hold?
This assembly is rated for a weight capacity of 500 lbs (226.8 kg).
What is the extension range of the CMA700 column?
The column provides an adjustable extension span of 12"–18" (30.48 cm – 45.72 cm).
Is there a different color available for the CMA700?
Yes, this SKU is the black finish version; the series also includes a white variant.
What document should I use for submittals?
You can use the CMA700 Technical Drawing (PDF) for technical submittals or the CMA700 CAD Drawing (dwg) for architectural integration.
