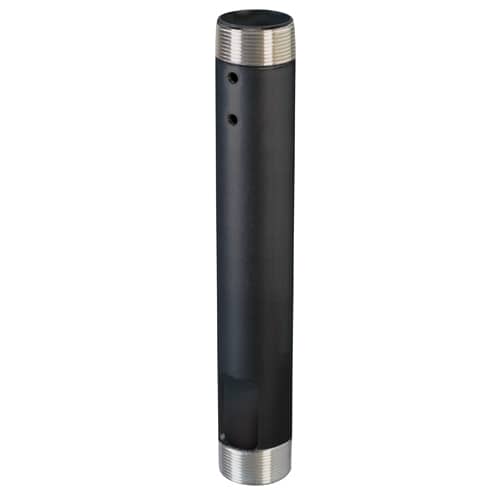

CMS036, 36 Inch Fixed Extension Column, Pole
36 inch fixed extension column for lowering projectors, 500 lbs capacity, TAA compliant
The Chief CMS036 is a 36 inch (91.4 cm) fixed extension column used to lower projectors to a specific mounting height. This aluminum column provides high strength with a 500 lbs (226.8 kg) weight capacity. It features a 1.5 inch NPT design that is threaded on both ends, allowing for secure attachment in a ceiling installation. This column is designed for use with any Chief 1.5 inch NPT ceiling plate or compatible accessory. Because this is a fixed extension, it provides a stable, non-adjustable height solution for permanent projector installs. The unit is TAA compliant and UL listed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.9 in (4.8 cm) |
| Extension | 3 ft (0.9 m) |
| Height | 36 in (91.4 cm) |
| Overall Dimensions | 36.0" x 1.9" x 1.9" (914 x 48 x 48 mm) |
| Shipping Weight | 3.59 lbs (1.6 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 1.9 in (4.8 cm) |
| Accessory Type | Extension |
All other specifications 5
| Application | Pole |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872092829 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Dual Electric Outlet Coupler
CMA504$106.40
Electrical Storage Enclosure
CMA160$302.40
CMA270 Threaded Pipe Coupler
CMA270$31.20
CMA347, Vibration Isolating Coupler
CMA347$416.00
CMA270W Threaded Pipe Coupler
CMA270W$31.20
CMS261W Column Cut-Off Adapter
CMS261W$42.40
CMS261 Column Cut-Off Adapter
CMS261$42.40
CMA152, Threaded Pipe Coupler
CMA152$45.60
Decorative Ring, 1.9 Inch ID, CMS/CPA Fixed/Inner Adjustable Column
CMA640$17.60
Questions about this part
Will this column fit my existing Chief ceiling plate?
Yes, this column is designed to work with any Chief 1.5 inch NPT ceiling plate or other compatible accessories.
What is the maximum weight capacity for the CMS036?
The CMS036 has a maximum weight capacity of 500 lbs (226.8 kg).
What other components are needed to complete the installation?
This is an extension column and requires a ceiling plate. You may also need accessories like the CMA151 1.5 inch to 1 inch NPT adapter or CMA270 threaded pipe couplers.
Is the CMS036 TAA compliant?
Yes, this product is TAA compliant and is UL listed.
How do I adjust the height if I need a different length?
The CMS036 is a fixed extension column and does not offer adjustable height once installed. For different lengths, refer to the other lengths in the CMS series.
