USB Audio Bundle
Ceiling-recessed USB audio conferencing solution for medium rooms including two CeilingMICs and two Ceiling Speakers

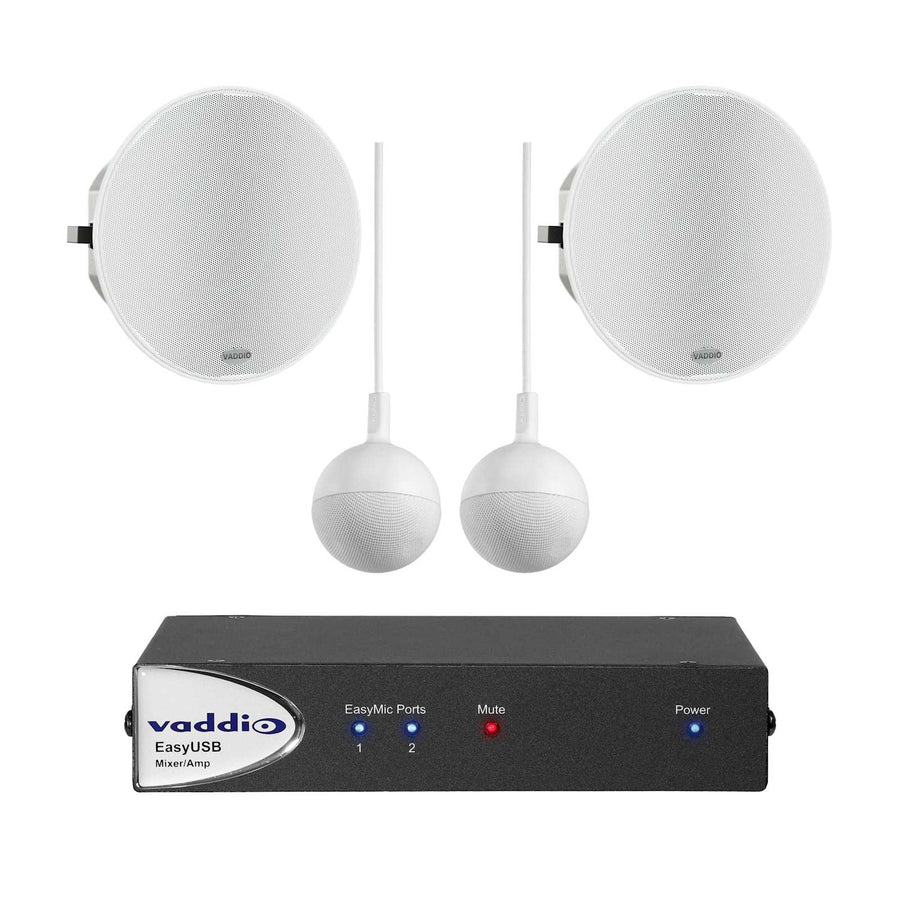

The Vaddio 999-86600-000 is a complete USB audio conferencing solution tailored for medium-sized rooms. This bundle is designed for deployment in environments utilizing PC-based unified communication applications that require a professional ceiling-recessed installation. The system features an EasyUSB Mixer/Amp that manages audio signals between the computer and the room's hardware. For input, the kit includes two white CeilingMIC units, each equipped with integrated echo canceling to ensure clear voice capture. For output, the bundle contains two white Vaddio Ceiling Speakers to maximize sound distribution throughout the space. These speakers include ceiling tile support braces for streamlined installation. Connectivity is handled via USB 2.0 and EZMic inputs, while the mixer/amp supports RS232 3rd party control. This TAA compliant kit is an all-in-one solution for integrators looking to provide high-quality, recessed audio coverage.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 28 in (71.1 cm) |
| Height | 13 in (33 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 40 lbs (18.1 kg) |
| Shipping Dimensions | 28" x 13" x 27" (711.2 x 330.2 x 685.8 mm) |
| Shipping Weight | 40 lbs (18.1 kg) |
| Width | 27 in (68.6 cm) |
| 3rd Party Control | RS232 |
All other specifications 17
| Application | Ceiling Recessed |
| Audio Type | MicrophoneMixers and IO DevicesSpeaker |
| Color | White |
| Compatible With | OtherVaddio |
| Control Method | RS232 |
| Input Ports | EZMicUSB 2.0 |
| Manufacturer | Vaddio |
| OneLINK Compatibility | No |
| Output Ports | AudioUSB 2.0 |
| Power Cord | US Cord |
| Power Type | Local Power |
| Quick-Connect Compatibility | No |
| Special Features | Kits |
| TAA Compliant | Yes |
| UPC | 840077506995 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Single 1/2 Rack Mounting Kit
998-6000-004$80.10
Dual 1/2 Rack Mounting Kit
998-6000-006$114.30
Undermount Brackets for Vaddio 1/2 Rack Unit Devices
998-6000-005$44.10
8 PoE+ | 2 RJ45 | 2 SFP Rear-Facing Ports - 1Gb L2/L3 Managed Switch, US Power Cord
SW-505-8P-R$657.00
20 Inch Enclosure with Hinged Door
EN2050$149.99
0.5ft (0.15m) USB-C® Male to USB-A Male Cable - USB 3.2 Gen 1 (5Gbps)
C2G28874$12.99
Vaddio Ceiling Speakers
999-85600-000$450.90
CeilingMIC Microphone
999-85100-000$641.70
EasyUSB Mixer/Amp
999-8530-000$1,071.90
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A
PD-815SC-NS$188.10
1 RU Mounting Rackshelf
UTR1$58.50
Questions about this part
What is included in the Vaddio 999-86600-000 USB Audio Bundle?
This kit includes the EasyUSB Mixer/Amp, two white CeilingMIC microphones with silicone split strain relief boots, two white 3' (0.9m) Cat-5 cables, two Vaddio Ceiling Speakers, and an 18V, 2.75A power supply with an AC cord set.
How do I control the audio mixer in this bundle?
The EasyUSB Mixer/Amp supports control via RS232, allowing for integration into professional control systems.
What is required for a ceiling-recessed installation?
The package is designed for ceiling-recessed applications and includes ceiling tile support braces for the Vaddio Ceiling Speakers to facilitate installation.
Which document should I use for the CeilingMIC installation?
For installation instructions, refer to the CeilingMIC and EasyIP CeilingMIC D Installation Guide.
Is the Vaddio 999-86600-000 TAA compliant?
Yes, this USB Audio Bundle is TAA compliant and carries CE and FCC certifications.
