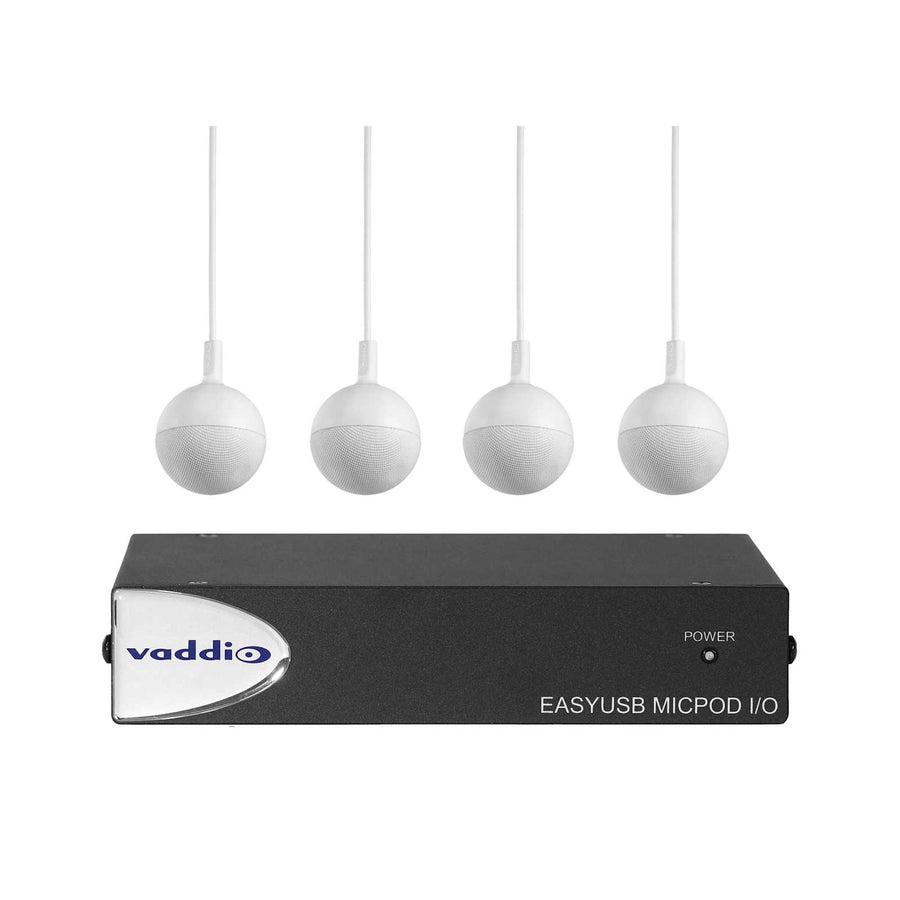

EasyUSB MicPOD I/O with Four CeilingMICs
Audio conferencing solution for medium to large rooms featuring four CeilingMIC microphones and an EasyUSB MicPOD I/O interface
The Vaddio 999-88100-000 EasyUSB MicPOD I/O is a professional audio conferencing solution specifically engineered for medium to large sized rooms. This system leverages Vaddio's EasyMIC technology to provide a streamlined approach to integrating live audio into complex room designs. By utilizing this interface, installers can connect CeilingMIC microphones to any professional audio mixer or internal DSP. Each of the four included white CeilingMICs uses an array of three electric condenser microphones to create a 300-degree pickup pattern. The microphones feature onboard intelligence to manage live audio through active gain, gating, and echo cancellation, mixing down to a single output for the system. This setup converts EasyMIC technology into a balanced line out, allowing for seamless integration with external room DSPs for high-quality collaboration applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6 in (15.2 cm) |
| Height | 1.72 in (4.4 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 1.45 lbs (0.7 kg) |
| Shipping Dimensions | 28" x 13" x 18" (711.2 x 330.2 x 457.2 mm) |
| Shipping Weight | 36 lbs (16.3 kg) |
| Width | 8.38 in (21.3 cm) |
| Audio Type | MicrophoneMixers and IO Devices |
All other specifications 9
| Color | White |
| Manufacturer | Vaddio |
| Power Cord | US Cord |
| Power Supply | 18VDC2.75A |
| Power Type | Local Power |
| TAA Compliant | Yes |
| UPC | 840077502003 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
18 Volt Power Supply (2.75 Amp)
451-2750-018$78.30
Undermount Brackets for Vaddio 1/2 Rack Unit Devices
998-6000-005$44.10
Single 1/2 Rack Mounting Kit
998-6000-004$80.10
Dual 1/2 Rack Mounting Kit
998-6000-006$114.30
EasyUSB MicPOD I/O with Two CeilingMICs
999-88000-000$2,070.90
CeilingMIC Microphone
999-85100-000$641.70
TableMIC Microphone
999-85000-000$570.60
EasyUSB MicPOD I/O
999-8535-000$801.90
Questions about this part
What is included in the 999-88100-000 package?
The package contains one EasyUSB MicPOD I/O, four white CeilingMIC microphones, four 3' (0.9m) white Cat-5 cables, four silicone split strain relief boots, four CeilingMIC interface boxes, and four cable clamp grommets.
How do I integrate these microphones into my existing DSP?
The EasyUSB MicPOD I/O converts the Vaddio EasyMIC technology to a balanced line out, allowing it to interface directly with any manufacturer's professional audio mixing system or DSP.
What mounting or installation accessories are available for the MicPOD I/O?
To mount the unit in a rack, you can use the Vaddio 998-6000-005 undermount brackets, the 998-6000-004 single 1/2 rack mounting kit, or the 998-6000-006 dual 1/2 rack mounting kit.
Is the 999-88100-000 TAA compliant?
Yes, this product is TAA compliant and carries CE and FCC certifications.
What is the difference between this kit and the 999-85100-000?
The 999-88100-000 is a complete system containing the interface and four microphones, whereas the 999-85100-000 is an individual CeilingMIC microphone.
