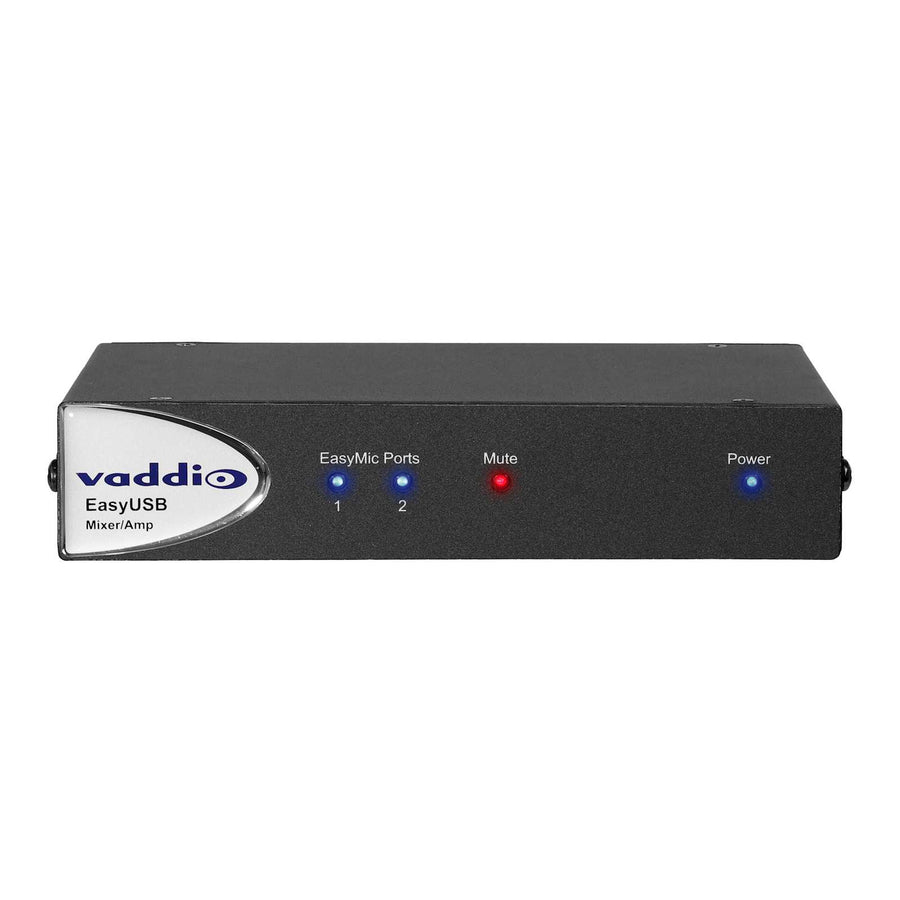

EasyUSB Mixer/Amp
Integrated USB audio mixer and amplifier supporting up to two EasyTALK MicPOD microphones with a 2 x 20W Class-D output
The Vaddio 999-8530-000 EasyUSB Mixer/Amp serves as a centralized audio hub that connects to a PC as a single microphone and speaker channel. This device is designed as a plug-and-play solution for software-based conferencing systems, utilizing a standard USB Audio Class Device (UAC) driver. Because it is driver-free, it works automatically with Windows, Mac, and Linux without requiring additional software installations. The unit features an integrated 2 x 20 Watt Class-D audio amplifier with a 2-Pin Euro Terminal, specifically designed to drive external 4/8-Ohm speakers. To expand your audio coverage, the mixer supports up to two EasyTALK MicPOD or Ceiling MicPOD devices via RJ-45 and Cat. 5 cabling for up to 100 feet. Additionally, the unit provides analog line level I/O interfaces, including unbalanced RCA and auxiliary line inputs and outputs, allowing for easy integration with external AV equipment like LCD displays, external amplifiers, or videoconferencing codecs. It supports RS232 for third-party control.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6 in (15.2 cm) |
| Height | 1.72 in (4.4 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 2 lbs (0.9 kg) |
| Shipping Dimensions | 18" x 11" x 5" (457.2 x 279.4 x 127 mm) |
| Shipping Weight | 4 lbs (1.8 kg) |
| Width | 8.38 in (21.3 cm) |
| 3rd Party Control | RS232 |
All other specifications 13
| Audio Type | AmplifierMixers and IO Devices |
| Color | Black |
| Input Ports | Line Level AudioMic Level AudioUSB 2.0 |
| OneLINK Compatibility | No |
| Output Ports | AudioUSB 2.0 |
| Power Cord | US Cord |
| Power Supply | 18VDC2.75A |
| Power Type | Local Power |
| Quick-Connect Compatibility | No |
| TAA Compliant | Yes |
| UPC | 840077501853 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
EasyUSB PRO MIC I/O
999-8520-000$855.90
USB 2.0 Active Extension Cable
440-1005-020$118.80
Undermount Brackets for Vaddio 1/2 Rack Unit Devices
998-6000-005$44.10
Single 1/2 Rack Mounting Kit
998-6000-004$80.10
Dual 1/2 Rack Mounting Kit
998-6000-006$114.30
CeilingMIC Microphone
999-85100-000$641.70
TableMIC Microphone
999-85000-000$570.60
EasyUSB AudioBRIDGE
999-8536-000$884.70
Questions about this part
Will the Vaddio 999-8530-000 work with my existing microphones?
This unit supports up to two EasyTALK MicPOD or Ceiling MicPOD microphones using RJ-45 and Cat. 5 cabling for audio, control, and power up to 100 feet.
What kind of speakers can I connect to the EasyUSB Mixer/Amp?
The device features an integrated 2 x 20 Watt Class-D amplifier with a 2-Pin Euro Terminal for connecting external 4/8-Ohm speakers.
Does this unit require special drivers to work with a PC?
No, it is a USB 2.0 Audio Class Device (UAC) that is completely driver-free and works automatically with Windows, Mac, and Linux.
Can I integrate this with my existing videoconferencing codec or displays?
Yes, it includes auxiliary and unbalanced RCA line-level input and output ports for interfacing with external AV equipment such as LCD displays or codecs.
What mounting and installation tools are needed?
The unit is designed for desktop use with included rubber feet, but can be rack-mounted using Vaddio 1/2 Rack Mounting Kits or Undermount Brackets.
