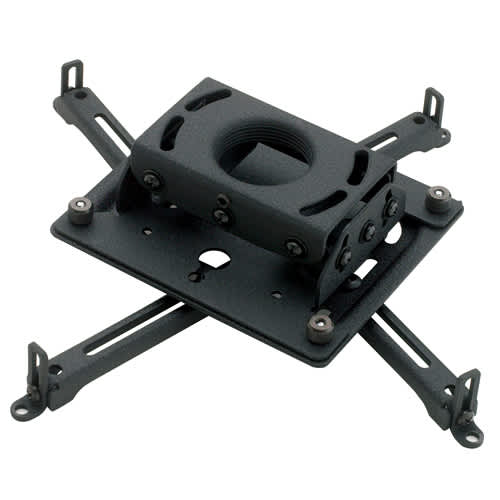

Universal Projector Mount (1st Generation Interface Technology, Black)
Universal ceiling mount for projectors, featuring independent roll, pitch, and yaw adjustment and a 50 lbs capacity
The Chief RPAO is a low-profile universal projector mount designed for ceiling applications. This 1st generation interface technology mount is a versatile solution for dealers or unplanned installations where the specific projector model is unknown. It features independent roll, pitch, and yaw adjustment for quick, precise projector registration. The design includes quick connect/disconnect functionality to allow for easy lamp and filter access on most projectors without losing preset adjustments. For security, the RPAO utilizes All-Points Security steel-into-steel locking hardware at all key connection points. This solid steel mount supports up to 50 lbs (22.7 kg) and is TAA compliant and UL listed. It offers multiple installation configurations: flush mount to the ceiling, mounting via 0.25" threaded rods, or using a 1.5" NPT threaded extension column. The integrated design also allows for cable management without requiring additional accessories.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 10" x 10" x 4"(254 x 254 x 101.6 mm) |
| Shipping Weight | 4.7 lbs (2.1 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | Black |
| Interface Type | Universal |
| Solution Type | Universal |
| TAA Compliant | Yes |
| UPC | 841872143064 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Questions about this part
Will the RPAO fit my projector?
The RPAO is a universal interface mount designed to accommodate a wide variety of projectors, making it ideal for installations where the specific model is not yet determined.
How is the projector adjusted once mounted?
The mount provides independent roll, pitch, and yaw adjustment, allowing for precise registration of the projector image after installation.
What installation options are available for ceiling mounting?
This mount can be installed as a flush mount to the ceiling, used with 0.25" threaded rods, or combined with a 1.5" NPT threaded extension column.
Does this mount support easy maintenance?
Yes, the quick connect/disconnect feature allows for convenient access to projector lamps and filters while maintaining your preset adjustments.
What additional accessories are needed for ceiling installation?
While it includes built-in cable management, specific mounting needs may require accessories like the CMA151 1.5 Inch to 1 Inch NPT Adapter or the CMA165 Internal Joist Ceiling Kit.
