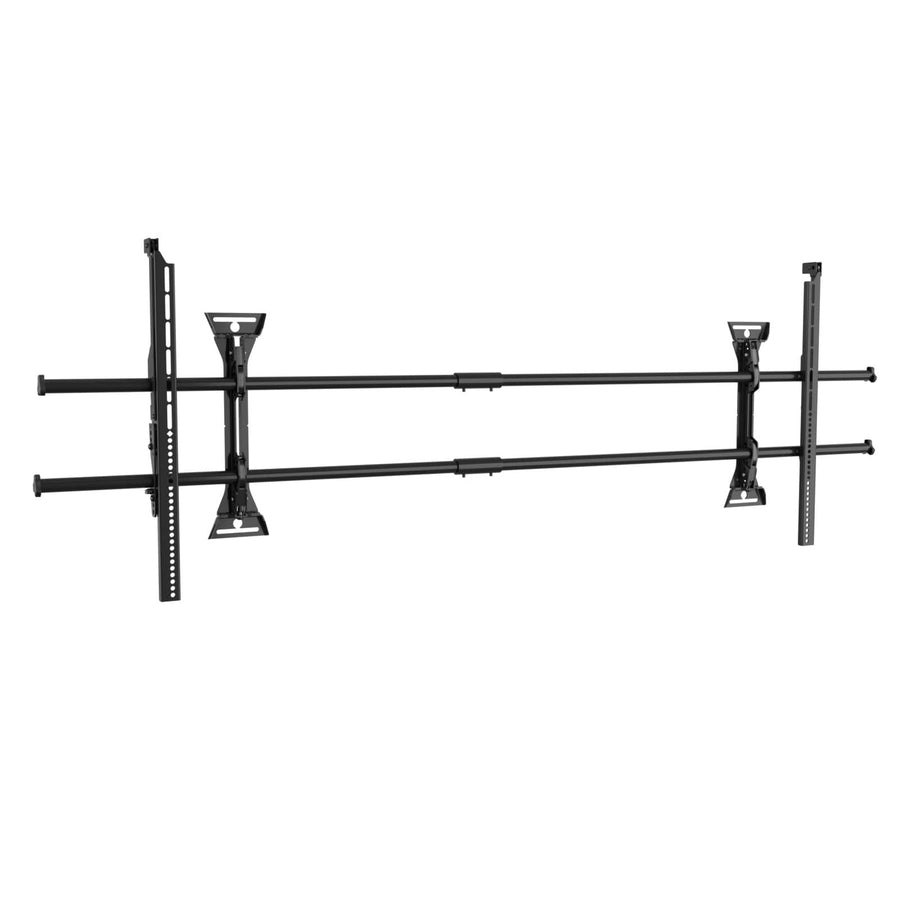

Ultrawide Micro-Adjustable Static Wall Mount, Extra-Large Kit
Ultrawide micro-adjustable wall mount for 80"–120" displays, 250 lbs capacity, with lateral shift and ControlZone leveling
The Chief KITXWXSM1U is an Ultrawide Micro-Adjustable Static Wall Mount, Extra-Large Kit designed to support large-format displays with a 21:9 aspect ratio. This universal solution accommodates ultrawide mounting patterns up to 1954 x 600mm (77.7" x 23.6") and is verified for use with displays ranging from 80" to 120". The mount features Centerless Shift, allowing for up to 22.6" (575 mm) of post-installation lateral shift to achieve perfect centering on any wall. For precise height and leveling adjustments after the screen is mounted, the integrated ControlZone technology provides fine-tuning capabilities. The system utilizes ClickConnect technology, which provides an audible click to confirm the screen is safely engaged. To maintain a secure installation over time, integrated set screws keep the mount rigid and stable. This kit is designed for landscape orientation and has a 2.25 in (5.7 cm) minimum depth, providing a slim profile while remaining easily serviceable via its integrated cable stand and nesting spacers for customizable depth.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.25 in (5.7 cm) |
| Height | 26.25 in (66.7 cm) |
| Lateral Shift | Up to 22.6" (575 mm) |
| Minimum Depth | 2.25 in (5.7 cm) |
| Shipping Dimensions | 46" x 19.5" x 8.75" (1168 mm x 495 mm x 222 mm) |
| Shipping Weight | 36.27 lbs (16.5 kg) |
| Typical Screen Size | 80" - 120" (2032mm - 3048mm) |
| Weight Capacity | 250 lbs (113.4 kg) |
All other specifications 10
| Width | 76.75 in (194.9 cm) |
| Adjustability | Fixed, Micro-Adjustable, Lateral Shift |
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | No |
| UPC | 841872176864 |
| VESA Mounting Pattern | 1300 x 100mm -1954 x 600mm |
Resources
You'll need these with it
Proximity® Component Storage Slide-Lock Panel
CSSLP15X10$195.20
Fusion® 8 Inch Above/Below Shelf for Extra-Large Displays
FCA810$152.80
Fusion® Extra-Large Pull Out Accessory
FCAXV1U$628.80
Fusion® 14 Inch Above/Below Shelf for Extra-Large Displays
FCA811$176.80
PAC526FC, Large In-Wall Storage Box with Flange and Cover
PAC526FC$200.80
Fusion® Low-Profile Above/Below Shelf for Extra-Large Displays
FCA813$185.60

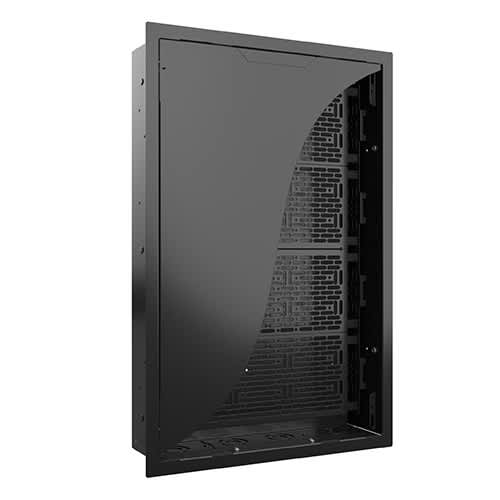

Proximity® Extra-Large In-Wall Storage Box with Flange, Cover, and Lever Lock™ -PAC527LFC
PAC527LFC$432.00

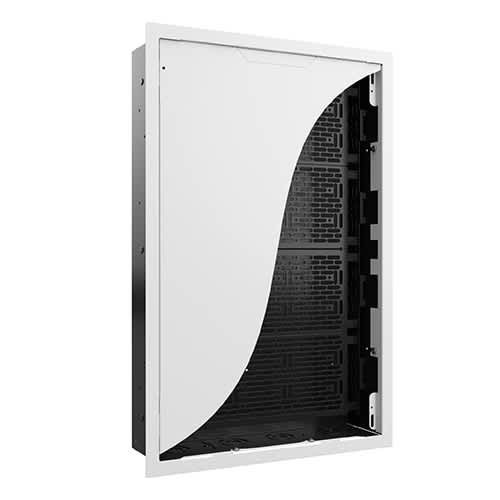

Proximity® Extra-Large In-Wall Storage Box with Flange, Cover, and Lever Lock™ -PAC527LFCW
PAC527LFCW$432.00

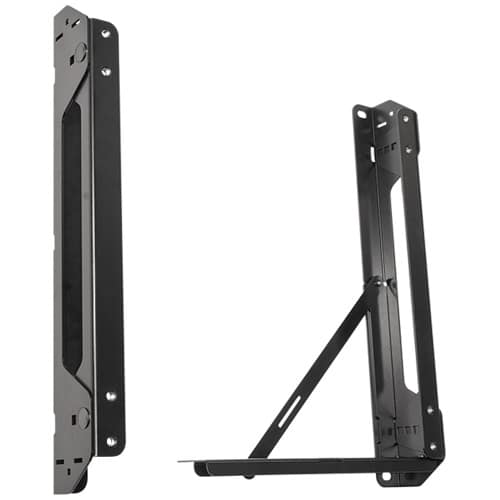

FCA113 Fusion® CPU Extender Accessory
FCA113$239.20
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
FCA112 Fusion® Secure CPU/Media Player Adapter
FCA112$111.20
FCA110 Fusion® CAT5/Surge/CPU Adapter
FCA110$27.20
Verified fitment
Questions about this part
Will the KITXWXSM1U fit my ultrawide display?
It is verified against 16 display models from 9 manufacturers, including Samsung LH105QMDNCXP, LG 110UM5K, Philips BDL8470QU, and IIYAMA PROLITE LH10551UWS.
What VESA patterns does this extra-large kit support?
This mount supports VESA patterns ranging from 1300 x 100mm up to 1954 x 600mm.
Can I adjust the screen position after it is mounted?
Yes, the mount offers post-installation lateral shift of up to 22.6" (575 mm) and uses ControlZone technology for height and level fine-tuning.
What accessories are compatible with the KITXWXSM1U?
The mount is compatible with various Fusion accessories, such as the FCA810 8-inch shelf, the FCA813 low-profile shelf, and the PAC526FC large in-wall storage box.
How much weight can this mount hold?
The KITXWXSM1U has a rated weight capacity of 250 lbs (113.4 kg).
