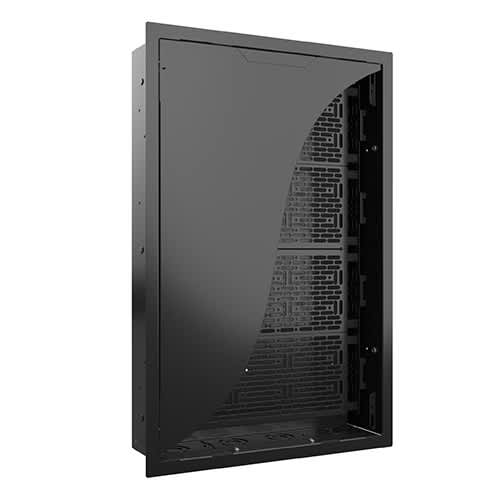

Proximity® Extra-Large In-Wall Storage Box with Flange, Cover, and Lever Lock™ -PAC527LFC
Extra-large in-wall storage box featuring tool-free Lever Lock plates and a black flange and cover
The PAC527LFC is an extra-large Proximity in-wall storage box designed to organize and hide AV components within a wall. This UL Listed unit features two large, tool-free Lever Lock™ plates that allow for quick installation and efficient system servicing. These plates can be mounted on four different levels, enabling installers to arrange equipment in three dimensions and manage difficult port locations. The design allows for power bricks to be tucked behind the backplane to keep the front face clean. For specialized power management, this box can be configured with various kits, including the PACPC1 two-outlet Power Filter Kit or the PAC527P4-KIT and PAC527P6-KIT power and surge protection options.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.9 in (9.9 cm) |
| Height | 14.25 in (36.2 cm) |
| Shipping Weight | 21.6 lbs (9.8 kg) |
| Weight Capacity | In-wall Box: 40 lbs (18.1 kg) - Lever Lock Plate Capacity: 10 lbs (4.5 kg) |
| Width | 22 in (55.9 cm) |
| Accessory Type | Component StorageIn-Wall |
| Application | In-WallWall |
| Color | Black |
All other specifications 6
| Cover Color | Black |
| Flange Color | Black |
| Special Features | CoversFlanges |
| TAA Compliant | No |
| UPC | 841872174518 |
| Certifications | UL Listed |
Resources
You'll need these with it
Questions about this part
What are the installation requirements for the PAC527LFC?
This box is designed for 3.5" stud bays with a depth of 3.9 in (9.9 cm), or for 2.5" stud bays with a 3" depth.
How much weight can the PAC527LFC support?
The in-wall box itself has a weight capacity of 40 lbs (18.1 kg), while the Lever Lock Plate has a capacity of 10 lbs (4.5 kg).
What power protection accessories are compatible with this box?
You can add the PACPC1 Power Filter Kit, the PAC527P4-KIT four-outlet power kit, or the PAC527P6-KIT six-outlet power and surge protection kit.
Can I use Middle Atlantic Products management solutions with this box?
Yes, the Lever Lock™ plates are compatible with Middle Atlantic Products’ Forward Cable Management Solutions.
Which document should I use for submittals?
The PAC527L Series Installation Manual (PDF) is available for installation details, and a CAD Drawing (dwg) is provided for technical planning.
