Fusion® Extra-Large Pull Out Accessory
Extra-large pull out extension for Fusion mounts, providing up to 11.54" of extension and 250 lbs capacity

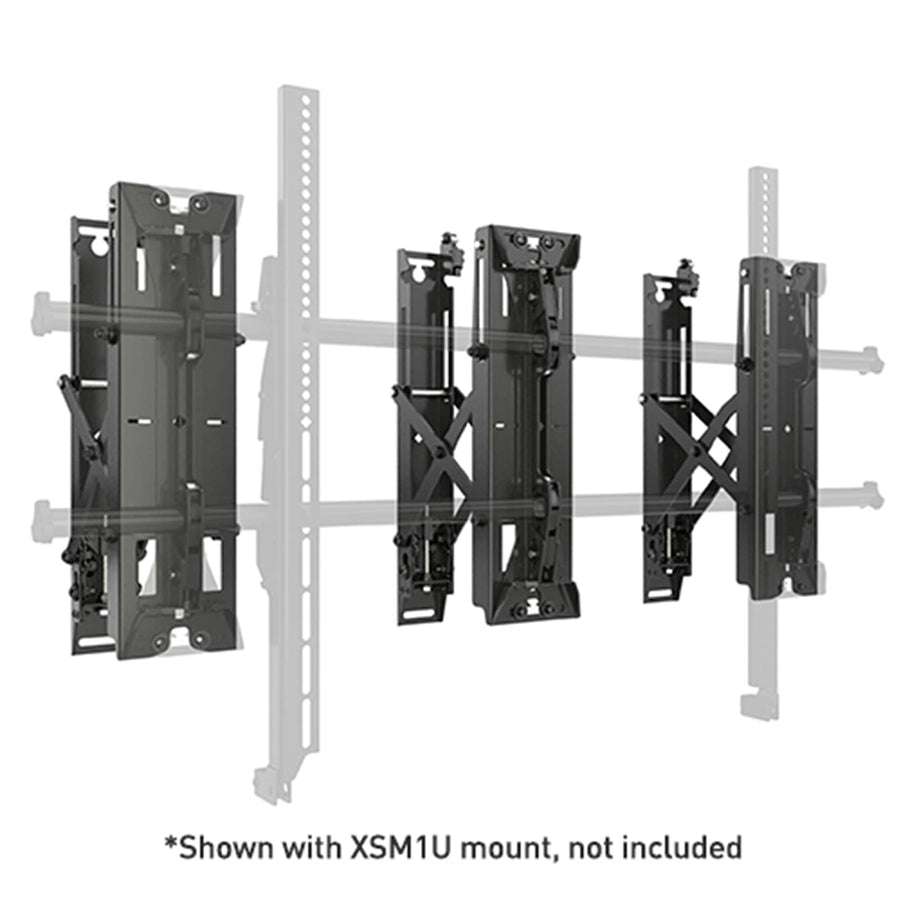

The Chief FCAXV1U is a Fusion® Extra-Large Pull Out Accessory designed to provide significant extension for large-format displays. When used with compatible Fusion® Extra-Large Micro-Adjustable Fixed or Tilt wall mounts, this accessory adds up to 11.54" (293 mm) of clearance from the wall, making it an ideal solution for recessed installations. The integrated scissor assembly extends out to 9.5" to facilitate easy access. This accessory is compatible with the XSM1U and XTM1U mount models. To help manage cabling or hardware behind a display, it can be paired with the PAC526 in-wall storage box or the CSPR on-wall component storage panel. This UL Listed solution is rated for a weight capacity of 250 lbs (113.4 kg) when installed on wood studs with 16" on center spacing.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Plumb Adjustment | +0.5° / -2° |
| Shipping Dimensions | 22.51" x 12.99" x 4.61"(571.8 x 330 x 117.1 mm) |
| Shipping Weight | 30.81 lbs (14 kg) |
| Typical Screen Size | Extra Large |
| Weight Capacity | 250 lbs (113.4 kg) |
| Accessory Type | Extension |
| Application | Wall |
| Color | Black |
All other specifications 5
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | No |
| UPC | 841872175379 |
| Certifications | UL Listed |
Resources
You'll need these with it
Questions about this part
Will the FCAXV1U fit my extra-large display?
This accessory is designed for 80"+ displays and is compatible with the Chief XSM1U and XTM1U Fusion Extra-Large Micro-Adjustable Fixed and Tilt wall mounts.
What is the maximum weight capacity for the FCAXV1U?
The accessory supports up to 250 lbs (113.4 kg) when mounted on wood studs with 16" on center spacing, or 200 lbs (90.7 kg) for both wood and metal stud configurations.
How much clearance does this accessory provide?
It provides up to 11.54" (293 mm) of total extension from the wall, utilizing a scissor assembly that extends out 9.5".
What do I need to purchase to secure equipment behind the display?
To secure AV equipment, you can optionally install the PAC526 in-wall storage box or the CSPR on-wall component storage panel.
How do I adjust the display if it is not perfectly level?
The unit includes plumb adjustment capabilities of +0.5° to -2° to help align the display with the wall surface.
