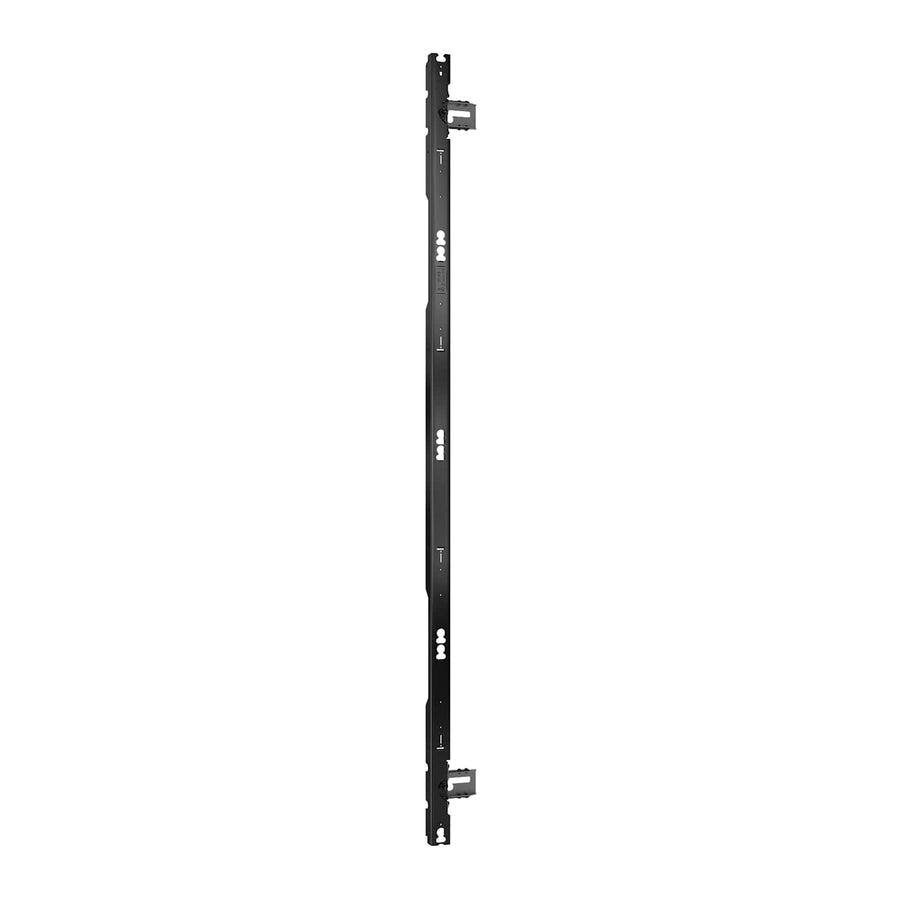

TiLED™ Left dvLED Wall Mount for Samsung IER/IEA Series, 3 Displays Tall
Left-side mounting component for Samsung IER/IEA Series dvLED video walls, supporting 3-display tall configurations
The Chief TILD1X3IER-L is a structural left-side mounting component specifically designed for the Samsung IER and IEA Series dvLED video walls. This modular unit is part of a larger system that allows installers to build custom configurations by mixing and matching left, middle, and right components. This specific SKU is intended for a 3-display tall, 1-column wide layout. To complete a full video wall assembly, this unit must be paired with the appropriate middle components (such as the TILD1X3IER-M) and right-side components (such as the TILD1X3IER-R) depending on the total height and width of the configuration. The system features micro-adjustable X, Y, and Z-axis alignment capabilities to ensure a flawless, seamless video wall surface. This TAA compliant mounting solution is engineered for landscape orientation and provides the necessary structural support for professional LED video wall installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Equipment Width Range | 5.37” – 6.12” (136mm-156 mm) |
| Shipping Dimensions | 68.25" x 8.5" x 3.5" (173.4 x 21.6 x 8.9 cm) |
| Shipping Weight | 15 lbs (6.8 kg) |
| Weight Capacity | 30 lbs (13.6 kg) |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Application | Wall |
| LED Display Model | Samsung IER/IEA |
All other specifications 7
| Manufacturer | Samsung |
| Number of Displays | 3 |
| Orientation | Landscape |
| Special Features | LED Video WallMulti-Display |
| TAA Compliant | Yes |
| UPC | 841872176598 |
| Certifications | TAA |
Resources
You'll need these with it
TiLED™ Middle dvLED Wall Mount for Samsung IER/IEA Series, 2 Displays Tall
TILD1X2IER-M$484.00
TiLED™ dvLED Wall Mount for Samsung IER-F/IEA-F Series, 2 Displays Tall
TILD1X2IERF$880.80
TiLED™ dvLED Wall Mount Vertical Connector Kit-TILVAB1
TILVAB1$53.60
TiLED™ Middle dvLED Wall Mount for Samsung IER/IEA Series, 3 Displays Tall
TILD1X3IER-M$792.80
TiLED™ Right dvLED Wall Mount for Samsung IER/IEA Series, 2 Displays Tall
TILD1X2IER-R$484.00
TiLED™ dvLED Wall Mount for Samsung IER-F/IEA-F Series, 3 Displays Tall
TILD1X3IERF$1,012.80
TiLED™ Left dvLED Wall Mount for Samsung IER/IEA Series, 2 Displays Tall
TILD1X2IER-L$484.00
TiLED™ Right dvLED Wall Mount for Samsung IER/IEA Series, 3 Displays Tall
TILD1X3IER-R$792.80
PAC526, Large In-Wall Storage Box
PAC526$116.80
TiLED™ 3 High dvLED Wall Mount Side Covers for Samsung IFH & IER Series
TILSC3HIFH$307.20
PAC525, In-Wall Storage Box
PAC525$79.20
TiLED™ 2 High dvLED Wall Mount Side Covers for Samsung IFH Series
TILSC2HIFH$307.20
Verified fitment
Questions about this part
Will this mount fit my Samsung IER or IEA Series display?
Yes, this mount is verified for use with Samsung IER/IEA models including IE015A, IE015A-F, IE015R, and IE015R-F.
What other parts do I need to complete the video wall?
This is a left-side component; you will need the corresponding middle components, such as the TILD1X3IER-M, and right-side components like the TILD1X3IER-R to complete the assembly.
Can I adjust the display alignment once it is mounted?
Yes, the TiLED system provides height, lateral shift, and micro-adjustability across the X, Y, and Z axes to ensure perfect alignment.
Is this part TAA compliant?
Yes, the TILD1X3IER-L is a TAA compliant mounting solution.
What is the weight capacity for this mount?
This specific left mounting component has a weight capacity of 30 lbs (13.6 kg).
