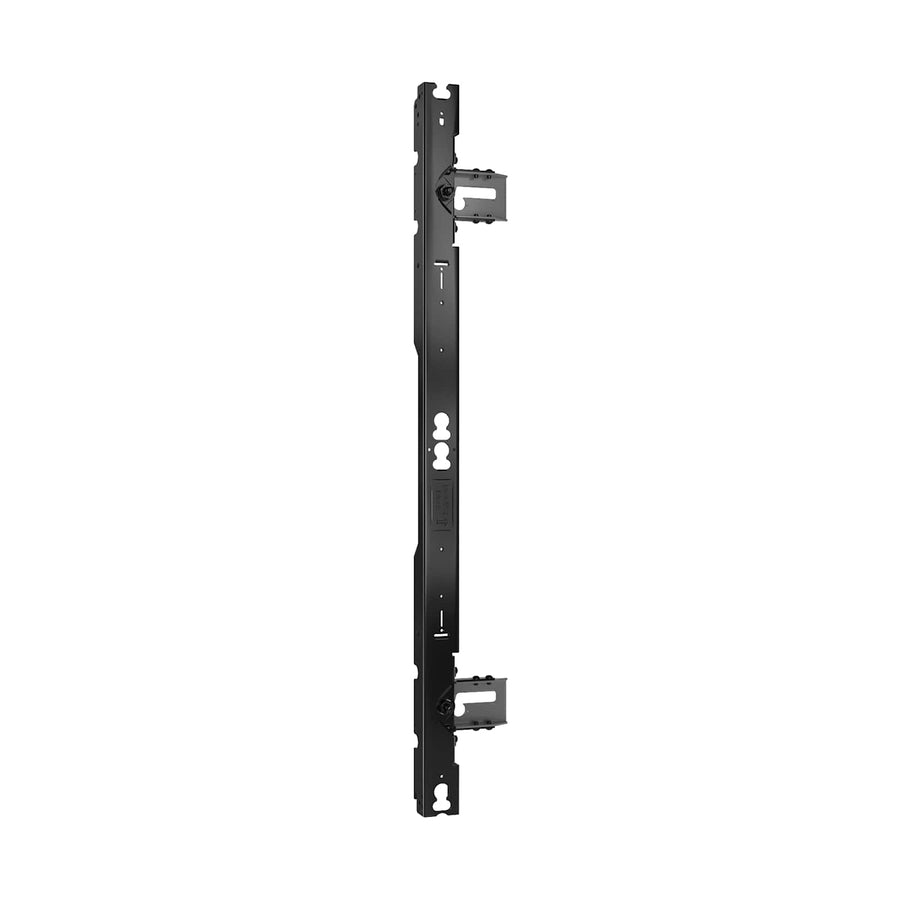

TiLED™ Left dvLED Wall Mount for Samsung IER/IEA Series, 2 Displays Tall
Left-side structural component for a 2-display tall landscape Samsung IER/IEA series video wall, 30 lbs capacity
The Chief TiLED™ TILD1X2IER-L is a left-side structural component designed for constructing a 2-display tall video wall using Samsung IER and IEA series dvLED displays. This modular system allows installers to build custom configurations by combining left, middle, and right components. This specific SKU is the left-side unit intended for a landscape orientation. To complete a full 1x2 video wall installation, this part must be paired with middle and right components, such as the TILD1X2IER-M and TILD1X2IER-R. The system supports 30 lbs (13.6 kg) of weight capacity and accommodates an equipment width range of 5.37” – 6.12” (136mm-156 mm). For precise alignment, the mount features micro-adjustable, lateral shift, and height adjustment capabilities across the X, Y, and Z axes, ensuring a seamless and flawless video wall surface. This TAA compliant solution is built for professional dvLED video wall integration.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Equipment Width Range | 5.37” – 6.12” (136mm-156 mm) |
| Shipping Dimensions | 49" x 8.5" x 3.5" (124.5 x 21.6 x 8.9 cm) |
| Shipping Weight | 12.4 lbs (5.6 kg) |
| Weight Capacity | 30 lbs (13.6 kg) |
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Application | Wall |
| LED Display Model | Samsung IER/IEA |
All other specifications 7
| Manufacturer | Samsung |
| Number of Displays | 2 |
| Orientation | Landscape |
| Special Features | LED Video WallMulti-Display |
| TAA Compliant | Yes |
| UPC | 841872176550 |
| Certifications | TAA |
Resources
You'll need these with it
TiLED™ Middle dvLED Wall Mount for Samsung IER/IEA Series, 2 Displays Tall
TILD1X2IER-M$484.00
TiLED™ dvLED Wall Mount for Samsung IER-F/IEA-F Series, 2 Displays Tall
TILD1X2IERF$880.80
TiLED™ dvLED Wall Mount Vertical Connector Kit-TILVAB1
TILVAB1$53.60
TiLED™ Middle dvLED Wall Mount for Samsung IER/IEA Series, 3 Displays Tall
TILD1X3IER-M$792.80
TiLED™ Right dvLED Wall Mount for Samsung IER/IEA Series, 2 Displays Tall
TILD1X2IER-R$484.00
TiLED™ dvLED Wall Mount for Samsung IER-F/IEA-F Series, 3 Displays Tall
TILD1X3IERF$1,012.80
TiLED™ Right dvLED Wall Mount for Samsung IER/IEA Series, 3 Displays Tall
TILD1X3IER-R$792.80
TiLED™ Left dvLED Wall Mount for Samsung IER/IEA Series, 3 Displays Tall
TILD1X3IER-L$792.80
PAC526, Large In-Wall Storage Box
PAC526$116.80
TiLED™ 3 High dvLED Wall Mount Side Covers for Samsung IFH & IER Series
TILSC3HIFH$307.20
PAC525, In-Wall Storage Box
PAC525$79.20
TiLED™ 2 High dvLED Wall Mount Side Covers for Samsung IFH Series
TILSC2HIFH$307.20
Verified fitment
Questions about this part
Is the TILD1X2IER-L compatible with Samsung IER displays?
Yes, it is specifically designed for the Samsung IER and IEA series, including models such as the IE015A, IE015A-F, IE015R, and IE015R-F.
What else do I need to order to build a full 1x2 video wall?
This is a left-side component and requires the TILD1X2IER-M middle mount and the TILD1X2IER-R right mount to complete the 2-display tall configuration.
How much weight can this mount support?
Each component has a weight capacity of 30 lbs (13.6 kg) for the supported equipment.
Can I adjust the alignment of the panels once mounted?
The TiLED system provides micro-adjustability including lateral shift and height adjustment to ensure perfect X, Y, and Z-axis alignment.
Which document should I use for installation or submittals?
Installers can refer to the TILD1X2IER_TILD1X3IER Installation Manual or the TiLED 1x2 IER Technical Drawing for specific assembly details.
