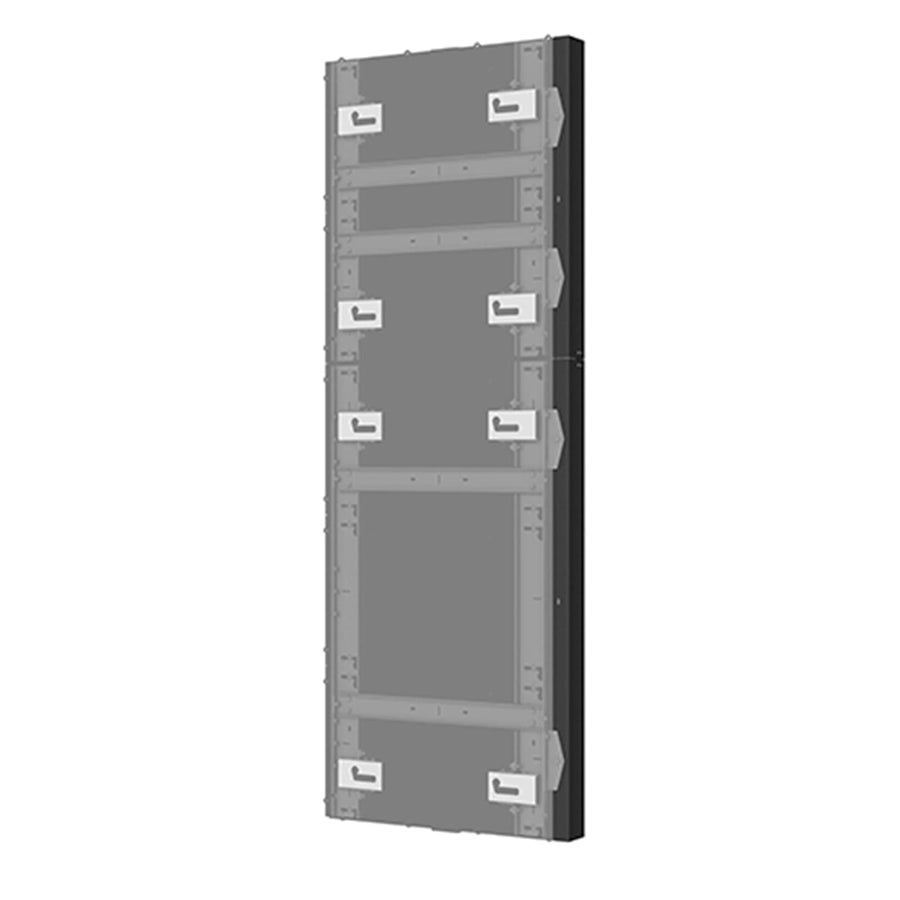

TiLED™ 2 High dvLED Wall Mount Side Covers for Samsung IFH Series
Side covers for 2-high Samsung IFH Series LED video walls, providing a clean aesthetic trim for side edges
The Chief TILSC2HIFH is a set of side covers designed specifically for Samsung IFH Series LED displays. These covers serve as a clean aesthetic trim to mask the sides of unsightly LED displays, ensuring a professional, finished appearance for large-format video walls. Each unit is sold as a pair, providing coverage for the left and right sides of a 2-high configuration. Because of the modular design, these covers can be stacked vertically using the TILSC1HIFH 1-high version to accommodate any configuration taller than one row. These side covers are compatible with all TIL1XxIFH wall mounts and are TAA compliant. They are built to support creative video wall designs in professional environments, offering an off-the-shelf, stockable solution that avoids custom lead times. This accessory is rated for a weight capacity of 20 lbs (9.07 kg) and is UL Listed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.65 in (9.3 cm) |
| Equipment Depth Range | 3.77” – 4.52” (95.7mm-114.8 mm) |
| Height | 42.52 in (108 cm) |
| Overall Dimensions | 42.52" x 0.93” x 3.65" (1080 x 24 x 93mm) |
| Shipping Weight | 7 lbs (3.2 kg) |
| Weight Capacity | 20 lbs (9.07 kg) |
| Width | 0.93 in (2.4 cm) |
| Accessory Type | Mounting Brackets |
All other specifications 11
| Adjustability | Fixed |
| Application | Wall |
| Color | Black |
| LED Display Model | Samsung IFH |
| Manufacturer | Samsung |
| Number of Displays | 2 |
| Orientation | Landscape |
| Special Features | LED Video WallMulti-Display |
| TAA Compliant | Yes |
| UPC | 841872175751 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will these side covers fit my Samsung IFH series display?
Yes, the TILSC2HIFH is built specifically for the Samsung IFH Series and is verified for use with Samsung models like the IE015R and IE020R.
How many displays are covered by the TILSC2HIFH?
This SKU is sold as a pair of side covers to accommodate the left and right sides of a configuration that is 2 displays high.
How do I cover a video wall taller than two rows?
You can stack these with the TILSC1HIFH 1 High side covers to cover any configuration greater than 2 rows high.
What is the weight capacity for these side covers?
The side covers have a weight capacity of 20 lbs (9.07 kg).
Is this product TAA compliant for government projects?
Yes, the TILSC2HIFH is TAA compliant and UL Listed.
