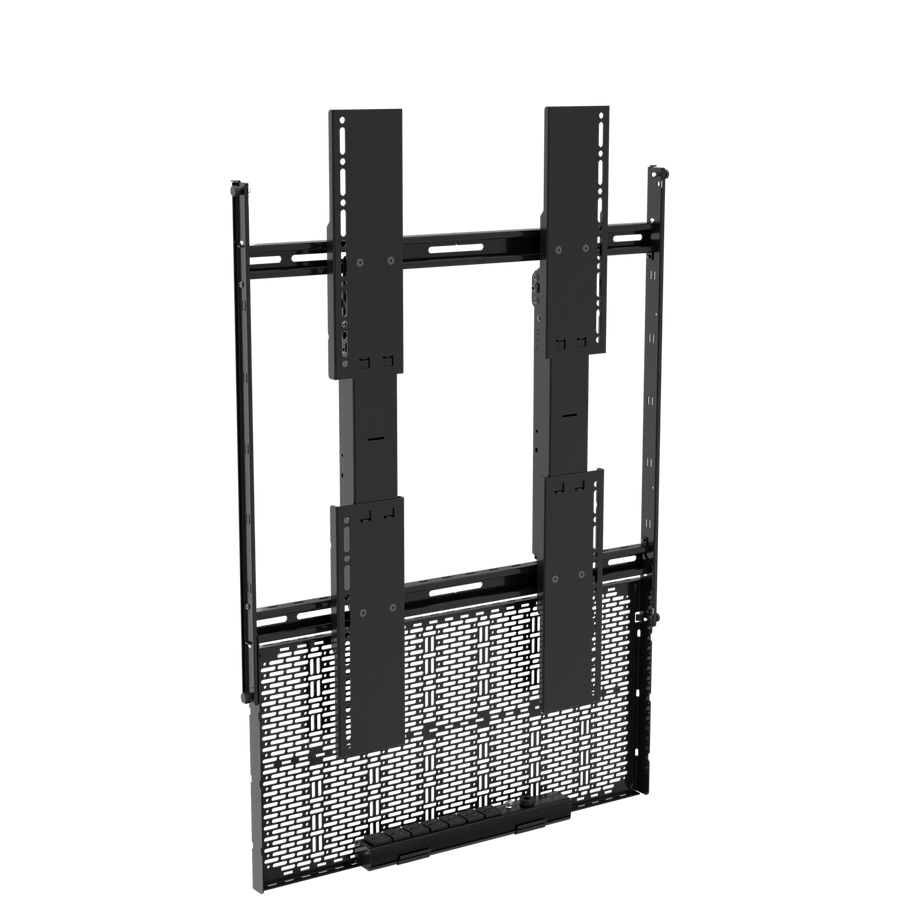

Tempo™ Portrait Large Flat Panel Wall Mount System, PDU Bundle
Portrait orientation wall mount for 55"–100" displays, featuring an integrated 7-outlet PDU and extended service access
The Chief AS3PLP7 is a specialized portrait orientation wall mount designed to maximize uptime for digital signage and DOOH advertising applications. This Tempo™ Portrait system streamlines maintenance by providing a 10.6" (269 mm) service extension and a 12.6" (320 mm) service depth, allowing technicians to access equipment without removing the display. The included PDU bundle features a Middle Atlantic 7-outlet, 15A power strip with a 3 ft (0.9 m) cord and a right-angle NEMA 5-15P plug for a low-profile installation. The mounting system supports VESA patterns from 200 x 200mm to 800 x 600mm. For installation stability, the unit is UL-listed for mounting to wood studs, 16” or 24” O.C. steel studs, 25 gage steel stud walls, concrete, or block. This bundle is the portrait variant of the Tempo™ series; the landscape version is the AS3LD.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 3 ft (0.9 m) |
| Lateral Shift | Yes |
| Overall Dimensions | 26.56" x 39.27" x 1.96" (675 x 997 x 50 mm) |
| Typical Screen Size | 55" - 100" (1397mm - 2540mm) |
| Volts AC | 120 VAC |
| Wall Stud Compatibility | 16” O.C.24” O.C. |
| Weight Capacity | 200 lbs (90.7 kg) when installed to 20 gage structural steel studs, wood studs, concrete, or block walls. 125 lbs (56.7 kg) when installed to 25 gage steel stud walls. |
All other specifications 17
| Accessory Type | Power |
| Adjustability | FixedLateral ShiftMicro-AdjustableTilt |
| Application | Wall |
| Color | Black |
| Includes PDU | Yes |
| Number of Circuits | 1 |
| Orientation | Portrait |
| Outlet Count | 7 |
| Plug Type | Right angle NEMA 5-15P |
| Post-Installation Leveling Roll | 1" (25 mm) |
| Solution Type | Universal |
| Special Features | ADA Compliant |
| TAA Compliant | No |
| Tilt | -10° / +0° in 2.5° increments |
| UPC | 841872179070 |
| VESA Mounting Pattern | 200 x 200mm - 800 x 600mm |
| Certifications | cULusUL |
Resources
You'll need these with it
1000 mm Interface Extenders for Tempo™ Flat Panel Wall Mount System
FHB5178$230.94
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
HDMI HDBaseT + USB-B and RS232 over Cat Extender Single Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz
C2G30024$872.99
Dual 4K HDMI HDBaseT + VGA, 3.5mm, and RS232 over Cat Switching Extender Box Transmitter - 4K 60Hz
C2G30018$276.99
HDMI HDBaseT + RS232 and IR over Cat Extender Box Transmitter to Box Receiver (18Gbps) - 4K 60Hz
C2G30026$503.99
HDMI HDBaseT + RS232 and IR over Cat Extender Box Scaling Receiver - 4K 60Hz
C2G30016$783.99
HDMI® HDBaseT + 3.5mm, USB-B to A, and RS232 over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz
C2G31013$539.99
HDMI® HDBaseT + VGA, 3.5mm, and USB-B to A over Cat Extender Wall Plate Transmitter to Box Receiver - 4K 60Hz
C2G31012$578.99
HDMI® HDBaseT + USB-C®, 3.5mm, and USB-B to A over Cat Extender Wall Plate Transmitter to Box Receiver - 4K 60Hz
C2G31011$653.99
HDMI® Ultra-Slim HDBaseT + RS232 And IR Over Cat Extender Box Receiver - 4K 60Hz
C2G31015$334.99
Dual 4K HDMI® HDBaseT + VGA, 3.5mm, and RS232 over Cat Switching Extender Box Transmitter to Ultra-Slim Box Receiver - 4K 60Hz
C2G30027$376.99
Verified fitment
Questions about this part
Will the Chief AS3PLP7 fit my specific display model?
This mount is verified against 6,493 display models from 190 manufacturers. Examples of compatible displays include the Samsung 55QN9*C, Sony 65BZ30P, LG 110UH5QH, Panasonic LH75QM1KD, and Hisense 100E7NQTUK PRO.
What is the weight capacity of this mount?
It supports up to 200 lbs (90.7 kg) when installed to 20 gage structural steel studs, wood studs, concrete, or block walls. Capacity is 125 lbs (56.7 kg) for 25 gage steel stud walls.
What tools will I need for installation?
According to the manufacturer, installation items include an Allen Wrench, Awl, Pencil, Phillips Head Screwdriver, Stud Finder, Tape Measure, and a Wrench.
How much service clearance does this mount provide?
The design features an open wall plate for positioning power and data sources and provides a 10.6" (269 mm) service extension for technician access.
Which documents should I use for my submittal?
For technical submittals, you can use the AS3PLP7 CAD drawing (dwg), the Technical Drawing (PDF), or the Tempo Portrait Datasheet Flyer (PDF).
