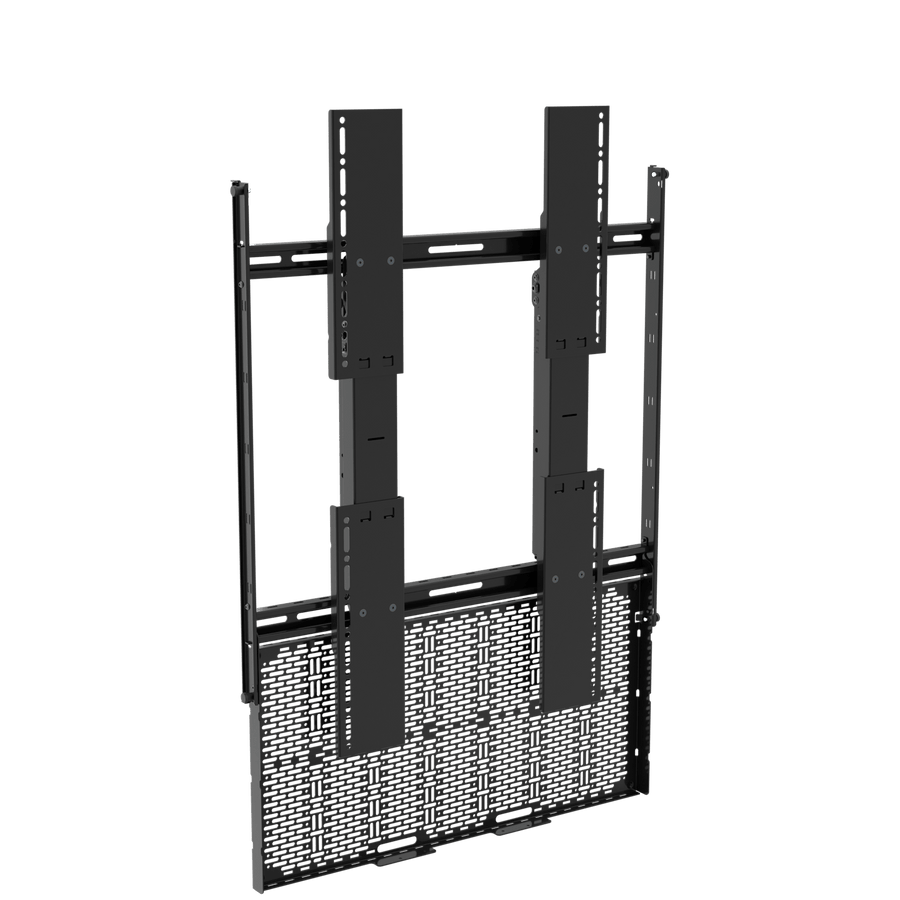

Tempo™ Portrait Large Flat Panel Wall Mount System
Portrait orientation wall mount for 55"–100" displays, 200 lbs capacity, with 10° tilt and service extension
The Chief AS3PL is a Tempo™ Portrait Large Flat Panel Wall Mount System engineered to maximize uptime for digital signage and DOOH advertising. This portrait-oriented mount is specifically designed to simplify maintenance and reduce technician labor costs. It features an innovative extending interface that provides 10.65" (269 mm) of service extension, allowing for a total service depth of 12.6" (320 mm). This enables a single technician to access and service internal devices safely without removing the display from the wall. The open wall plate design facilitates easy positioning for in-wall storage and simplifies the routing of power and data sources. Built for versatility, the AS3PL includes a lockout tab feature on the magnetic pull cord to secure the display in service mode and a lockout clip to prevent accidental locking of the home latch. This system is UL listed for installation on wood studs, 16" or 24" O.C. steel studs, concrete, or block walls. It is the portrait orientation version of the Tempo™ series, distinguishing it from the landscape-oriented siblings in the same product family.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Lateral Shift | Yes |
| Overall Dimensions | 26.56" x 39.27" x 1.96" (675 x 997 x 50 mm) |
| Typical Screen Size | 55" - 100" (1397mm - 2540mm) |
| Wall Stud Compatibility | 16” O.C.24” O.C. |
| Weight Capacity | 200 lbs (90.7 kg) when installed to 20 gage structural steel studs, wood studs, concrete, or block walls. 125 lbs (56.7 kg) when installed to 25 gage steel stud walls. |
| Adjustability | FixedLateral ShiftMicro-AdjustableTilt |
| Application | Wall |
| Color | Black |
All other specifications 10
| Includes PDU | No |
| Orientation | Portrait |
| Post-Installation Leveling Roll | 1" (25 mm) |
| Solution Type | Universal |
| Special Features | ADA Compliant |
| TAA Compliant | No |
| Tilt | -10° / +0° in 2.5° increments |
| UPC | 841872179049 |
| VESA Mounting Pattern | 200 x 200mm - 800 x 600mm |
| Certifications | cULusUL |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30

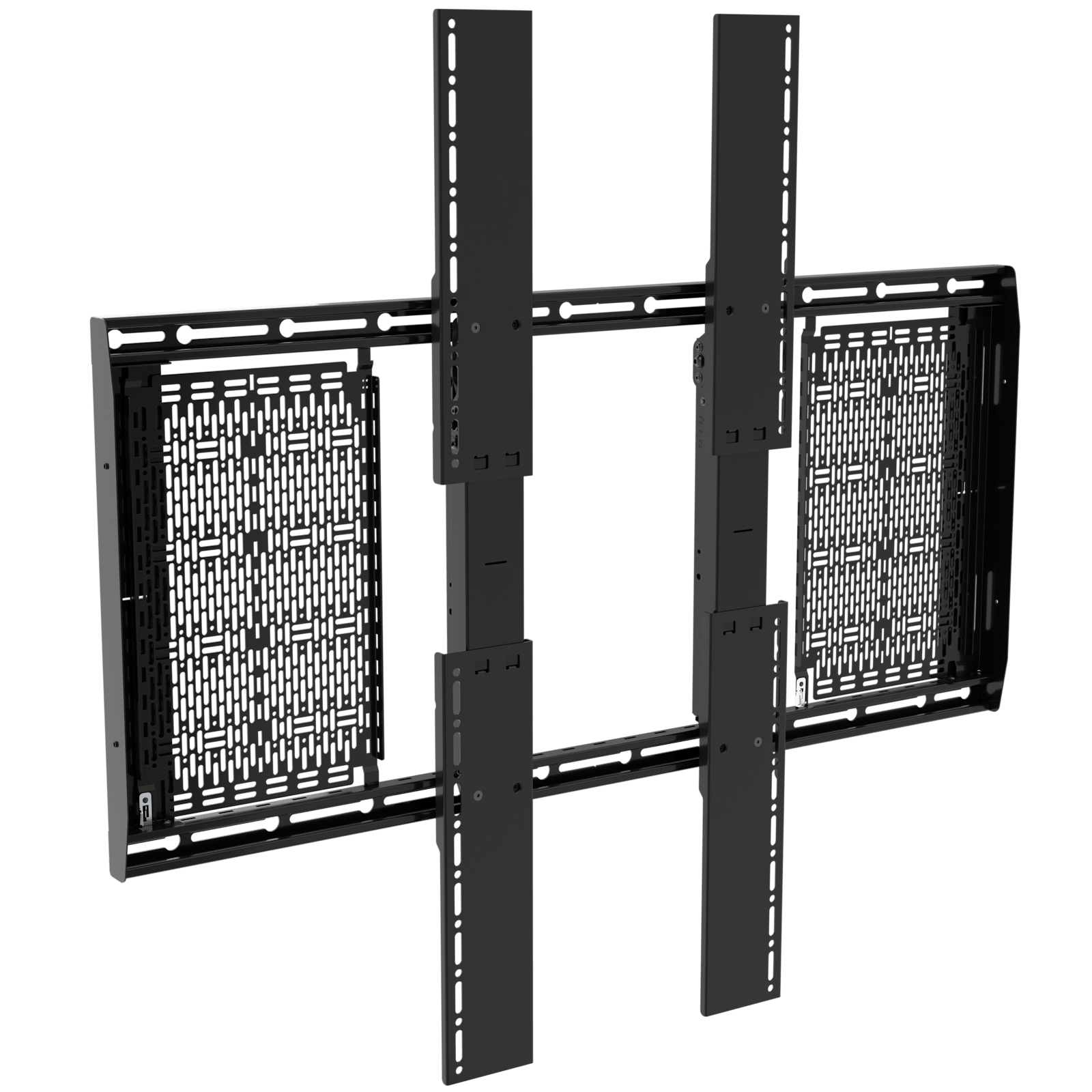

1000 mm Interface Extenders for Tempo™ Flat Panel Wall Mount System
FHB5178$230.94
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
HDMI HDBaseT + USB-B and RS232 over Cat Extender Single Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz
C2G30024$872.99
Dual 4K HDMI HDBaseT + VGA, 3.5mm, and RS232 over Cat Switching Extender Box Transmitter - 4K 60Hz
C2G30018$276.99
HDMI HDBaseT + RS232 and IR over Cat Extender Box Transmitter to Box Receiver (18Gbps) - 4K 60Hz
C2G30026$503.99
HDMI HDBaseT + RS232 and IR over Cat Extender Box Scaling Receiver - 4K 60Hz
C2G30016$783.99
HDMI® HDBaseT + 3.5mm, USB-B to A, and RS232 over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz
C2G31013$539.99
HDMI® HDBaseT + VGA, 3.5mm, and USB-B to A over Cat Extender Wall Plate Transmitter to Box Receiver - 4K 60Hz
C2G31012$578.99
HDMI® HDBaseT + USB-C®, 3.5mm, and USB-B to A over Cat Extender Wall Plate Transmitter to Box Receiver - 4K 60Hz
C2G31011$653.99
HDMI® Ultra-Slim HDBaseT + RS232 And IR Over Cat Extender Box Receiver - 4K 60Hz
C2G31015$334.99
Verified fitment
Questions about this part
Will the Chief AS3PL fit my display?
The mount is verified against 8,305 display models from 202 manufacturers, including Samsung 550DX, Sony 65BZ30P, LG 100QNED85AU, Panasonic LH75QM1KD, and Sharp 4PB65EJ2U.
How much weight can this mount support?
It supports up to 200 lbs (90.7 kg) when installed to 20 gage structural steel studs, wood studs, concrete, or block. Capacity is 125 lbs (56.7 kg) for 25 gage steel stud walls.
What do I need to buy to include a PDU?
The AS3PL does not include a PDU. You can add a Select Series PDU with RackLink™ (RLNK-215) or a NEXSYS™ 2 Outlet Compact Power unit (PDX-215C or PDX-220C).
What is required for the wall installation?
The system is compatible with 16" O.C. and 24" O.C. wall studs and is UL listed for wood, 20 gage steel studs, concrete, or block walls.
How is the display serviced once mounted?
Technicians can use the 10.65" (269 mm) service extension to reach devices. The magnetic pull cord includes a lockout tab to lock the display in service mode.
