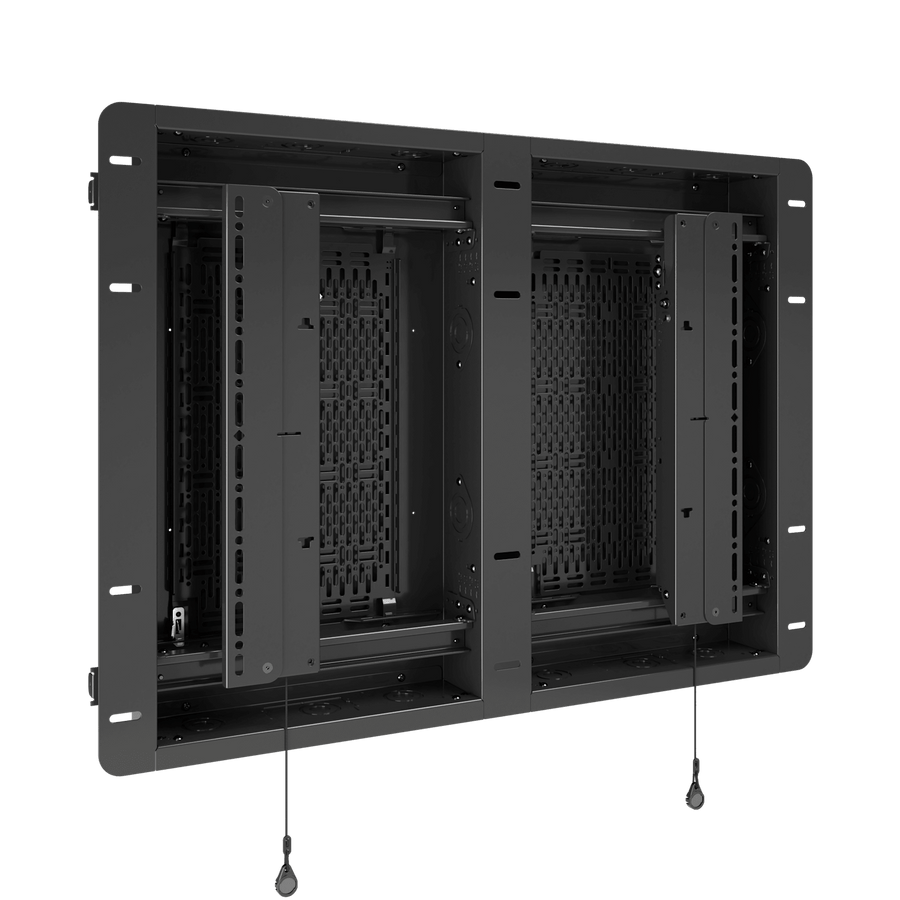

Tempo™ Flat Panel In-Wall Mount System
In-wall mounting system for 65"+ displays, supporting up to 250 lbs with integrated device storage and TAA compliance
The Chief FPIWMS Tempo™ Flat Panel In-Wall Mount System provides a professional, all-in-one solution for installing extra-large or ultrawide displays in both landscape and portrait orientations. This system is engineered for commercial and custom residential environments, offering integrated in-wall device storage to keep hardware hidden. This single-box solution includes both the FPIWMKIT1 (pre-drywall in-wall box and stud tabs kit) and the FPIWMKIT2 (post-drywall wall mount kit with flanges and mounting plates) to streamline the installation workflow. The system is designed to fit between 16" O.C. metal or wood studs and accommodates drywall thicknesses from 0.5" to 1.25". To support high-performance AV environments, the mounting interface includes a 10.65" (271 mm) service extension and offers lateral shift flexibility. For specialized hardware needs, add FPIWSBX storage boxes to house small devices. The system is TAA compliant and facilitates ADA compliance for displays with a depth of less than 3.5" (88.9 mm). It is verified to fit over 10,000 display models from 282 manufacturers, including Samsung 400MX, Sony 75BZ40P, and LG 100QNED8.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Manual Height Adjustment | +/- 0.50” (12.7 mm) |
| Plumb Adjustment | 0.38" (9.5 mm) |
| Shipping Dimensions | 30" x 18" x 18" (762 x 457 x 457 mm) |
| Shipping Weight | 78 lbs (35.4 kg) |
| Typical Screen Size | 65"+ (1651mm+) |
| Wall Stud Compatibility | 16” O.C. |
| Weight Capacity | 250 lbs (113.4 kg) when installing to 20 gage structural steel studs or wood studs. 200 lbs (90.7 kg) when installing to 25 gage steel studs. |
| Adjustability | ExtensionLateral ShiftMicro-AdjustableTilt |
All other specifications 10
| Application | In-Wall |
| Color | Black |
| Installation Type | All-In-One Mounting System |
| Orientation | Landscape or Portrait |
| Solution Type | Universal |
| Special Features | Facilitates ADA Compliance with displays less than 3.5” (88.9 mm) in depthMulti-DisplayTAA Compliant |
| TAA Compliant | Yes |
| Tilt | -10° / +0° in 2.5° increments |
| UPC | 841872178301 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
650 mm Interface Extenders for Tempo™ Flat Panel Wall Mount System
FHB5174$181.60

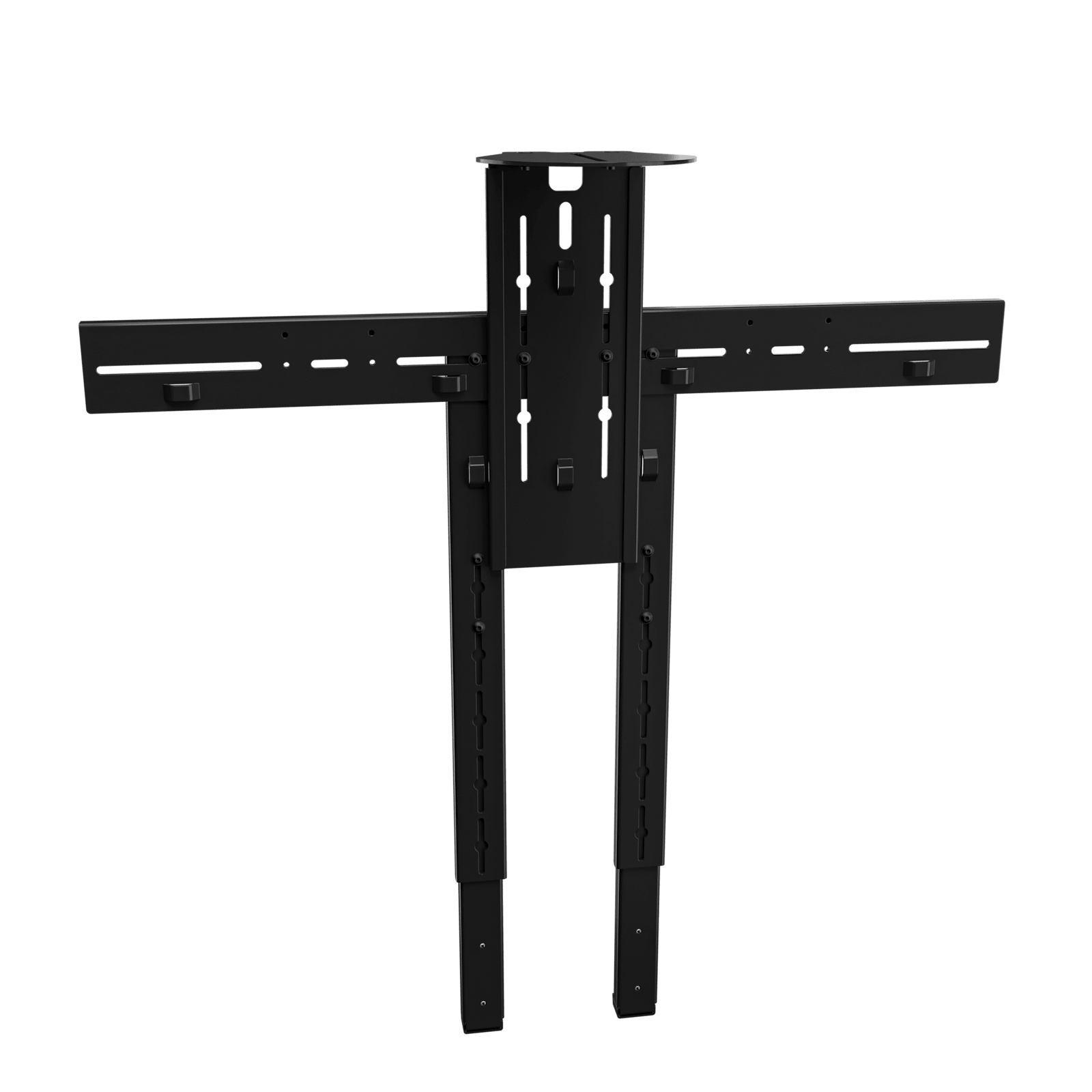

Camera Shelf for Tempo™ Flat Panel In-Wall Mount System
FPIWMA100$364.00
NEXSYS™ 2 Outlet, 15 Amp Compact Power with Multi-Stage Surge Protection
PDX-215C$262.80

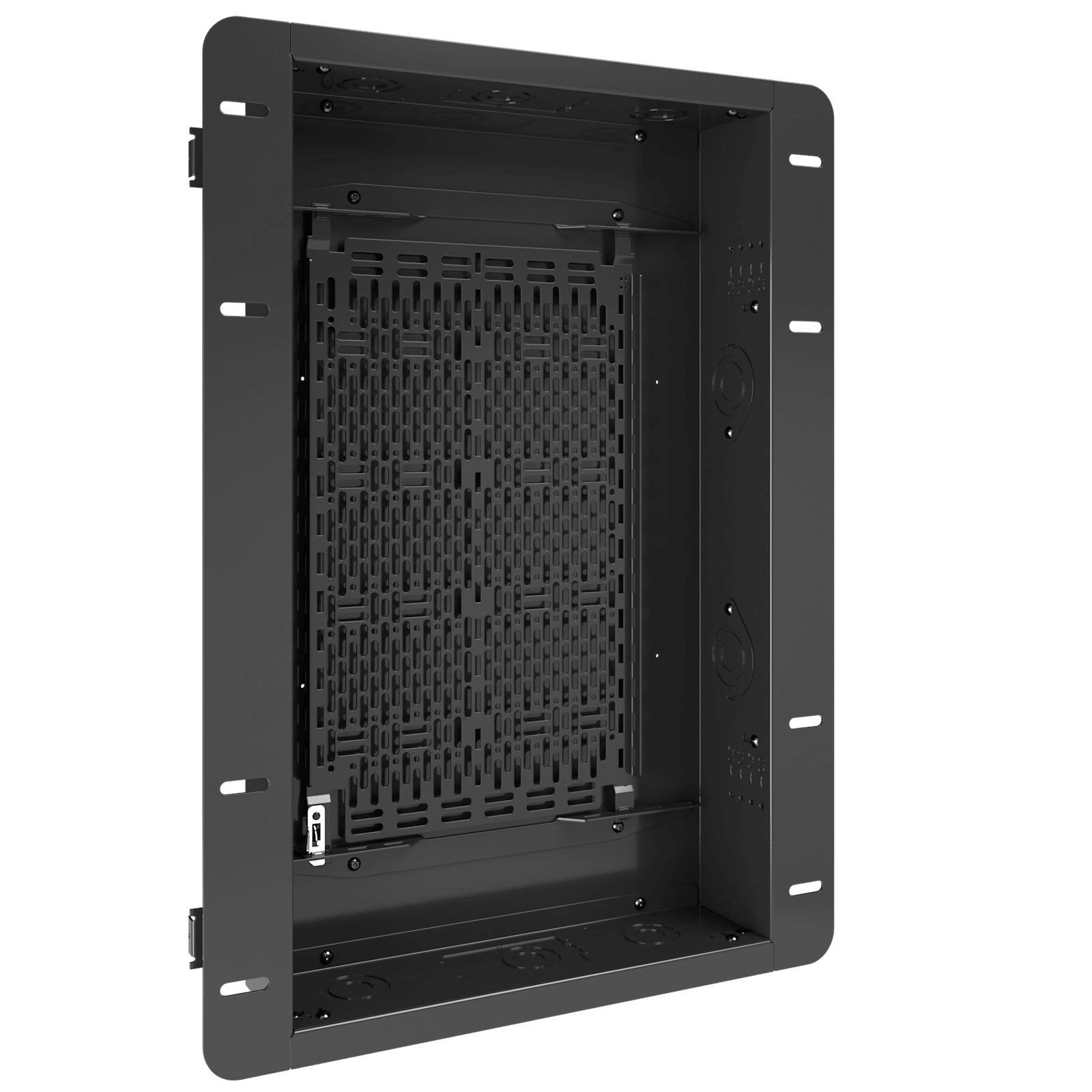

Tempo™ In-Wall AV Storage Box – 14" x 23"
FPIWSBX$464.00
Metal Single Gang Electrical Box
PACGB1$10.40
PAC526F, Large In-Wall Storage Box with Flange
PAC526F$164.00
HDMI HDBaseT + USB-B and RS232 over Cat Extender Single Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz
C2G30024$872.99
Dual 4K HDMI HDBaseT + VGA, 3.5mm, and RS232 over Cat Switching Extender Box Transmitter - 4K 60Hz
C2G30018$276.99
HDMI HDBaseT + RS232 and IR over Cat Extender Box Transmitter to Box Receiver (18Gbps) - 4K 60Hz
C2G30026$503.99
HDMI HDBaseT + RS232 and IR over Cat Extender Box Scaling Receiver - 4K 60Hz
C2G30016$783.99
HDMI® HDBaseT + 3.5mm, USB-B to A, and RS232 over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz
C2G31013$539.99
Verified fitment
Questions about this part
Will the Chief FPIWMS fit my 75-inch Samsung display?
Yes, this system is designed for 65"+ displays and is verified against over 10,000 models, including many Samsung series like the 400MX.
What do I need to purchase to use this in-wall mount?
The FPIWMS kit includes the mounting hardware and in-wall boxes. For additional small device storage, you can add FPIWSBX storage boxes.
Can I mount this on 25 gage steel studs?
Yes, the system is rated for a 200 lbs (90.7 kg) capacity when installed on 25 gage steel studs.
How much service clearance is available behind the display?
The system provides 10.65" (271 mm) of service extension for accessing components inside the wall.
What is the difference between the FPIWMS and the FPIWMKIT2?
The FPIWMS is an all-in-one system that includes both the FPIWMKIT1 pre-drywall kit and the FPIWMKIT2 post-drywall kit.
