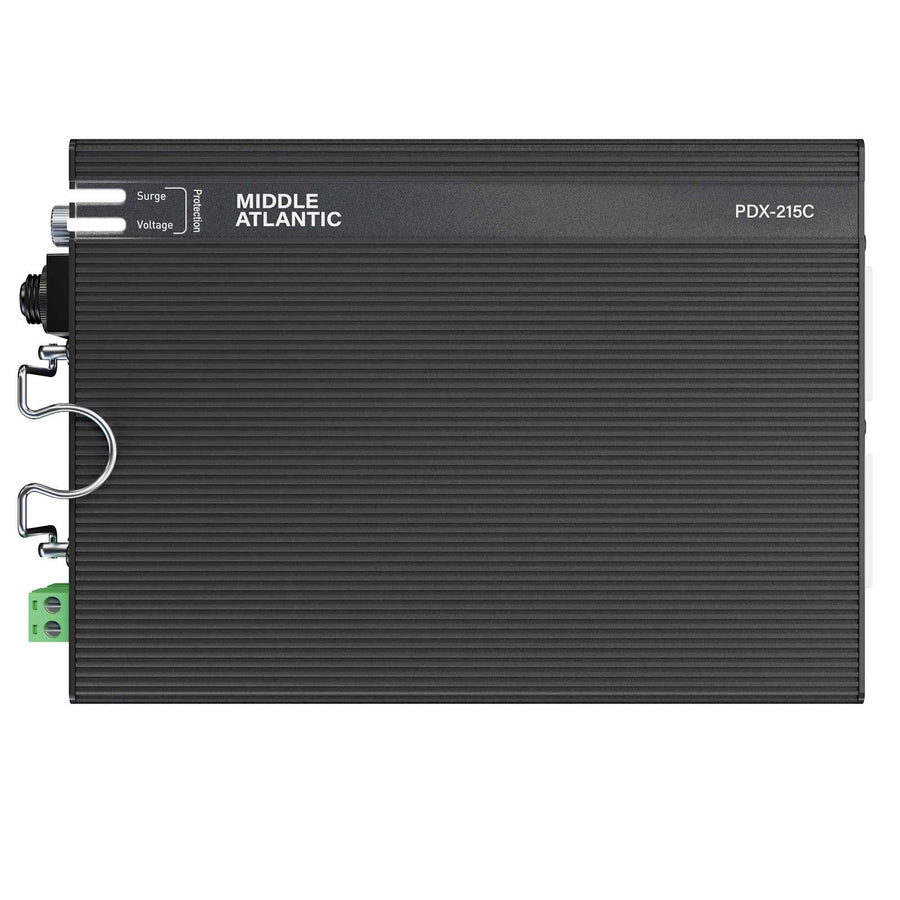

NEXSYS™ 2 Outlet, 15 Amp Compact Power with Multi-Stage Surge Protection
Compact 15 Amp PDU with 2 NEMA 5-15R outlets, multi-stage surge protection, and 2 ft cord for tight spaces
The NEXSYS™ PDX-215C is a compact power solution specifically designed for space-constrained applications like digital signage or installations behind large displays. This 0 RU unit provides 15 Amp service through two NEMA 5-15R outlets. To prevent the common issue of blocked power when using bulky DC transformers or wall warts, these outlets are specifically oriented to allow easier access for plug-in adapters. The device features multi-stage MOV surge protection consisting of three stages to safeguard sensitive equipment from electrical spikes. Additionally, the PDU includes a dry contact port that allows for selectable on/off voltage protection. If an over/under voltage event occurs, the outlets automatically turn off to protect your gear and will automatically restore power once the voltage returns to an acceptable 120 VAC range. For ease of installation in a rack, kiosk, or in-wall box, this PDU includes a clamp and L-brackets, allowing it to be mounted to a Lever Lock™ plate for tool-free integration.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 VAC |
| AC Voltage Output | 120 VAC |
| Amps | 15 Amp |
| Cord Length | 2 ft (0.6 m) |
| Depth | 6.5 in (16.5 cm) |
| Height | 1.74 in (4.4 cm) |
| Rack Units | 0 RU |
| Shipping Weight | 3.73 lbs (1.7 kg) |
All other specifications 11
| Width | 4.65 in (11.8 cm) |
| Isolated Ground | No |
| Outlet Count | 2 |
| Plug Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Special Features | NEXSYS PDU |
| Surge Protection Type | Multi-Stage MOV |
| TAA Compliant | No |
| UPC | 656747396380 |
| Certifications | UL Listed |
| Warranty | 3 years |
Resources
You'll need these with it
NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Series Surge Protection
PDX-920R-SP$1,108.80
NEXSYS™ 9 Outlet, 15 Amp Rackmount Power with Series Surge Protection
PDX-915R-SP$907.20
NEXSYS™ 2 Outlet, 15 Amp Compact Power with Multi-Stage Surge Protection
PDX-215C$262.80
Compact Premium+ PDU With RackLink™, 4 Outlet 15A & 2-Stage Surge
RLNK-P415$1,360.80
1 RU Select Series UPS Backup Power, 1000VA
UPS-S1000R$1,377.00
NEXSYS™ 2000VA, 20 Amp UPS Backup Power System with RackLink™, Individual Outlet Control
UPX-RLNK-2000R-8$3,850.20
NEXSYS™ 2000VA, 20 Amp UPS Backup Power System with RackLink™, Bank Outlet Control
UPX-RLNK-2000R-2$3,519.90
Select Series PDU with RackLink™, 9 Outlet
RLNK-915R$715.50
NEXSYS™ 2000VA, 20 Amp Online UPS Backup Power System with RackLink™, Bank Outlet Control
UPX-RLNK-OL2000R-2$5,169.60
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
Questions about this part
How does the PDX-215C protect my equipment from voltage fluctuations?
Using a dry contact port, the unit can automatically disconnect power if an over or under voltage event is detected, restoring power once the 120 VAC input returns to a safe range.
Can I use large power adapters with this PDU?
Yes. The two NEMA 5-15R outlets are specifically oriented to accommodate DC transformers and wall warts without blocking the adjacent outlet.
What tools are needed to install this compact PDU?
The unit supports tool-free mounting when used with a Lever Lock™ plate via the included clamp and L-brackets.
How do I know if the surge protection is active?
The PDX-215C features visual indicators of surge status located on both the front and side of the unit.
What is the difference between the PDX-215C and the PDX-915R-SP?
While the PDX-215C is a compact 0 RU 2-outlet unit for tight spaces, the PDX-915R-SP is a 9-outlet rackmount model.
