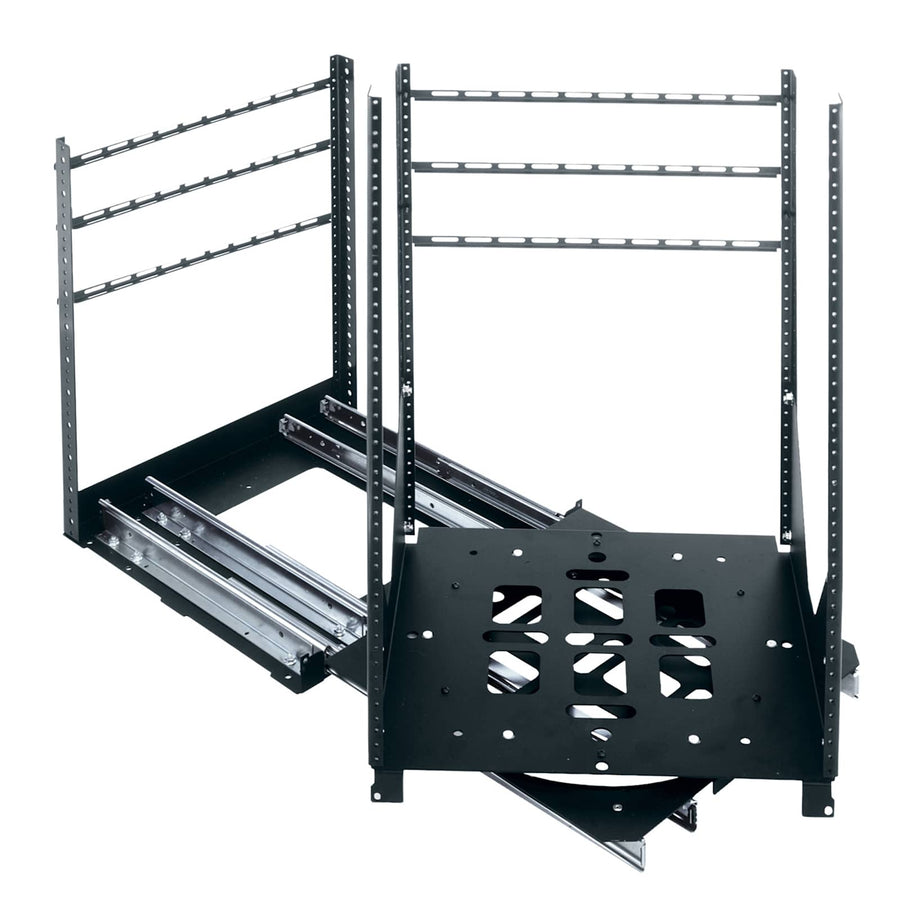

SRSR Series Slide Out Rotating Rail System Rack - SRSR-X-14
14 RU slide-out rotating rack for easy rear access in cabinets and millwork, 200 lbs capacity
The Middle Atlantic SRSR-X-14 provides essential rear access to equipment connections within millwork, cabinets, and flush in-wall installations. This 14 RU rotating rack system is designed to extend and rotate 90° in either direction, a feature specifically optimized for servicing smaller systems where space is limited. To facilitate easier on-site installation and pre-wiring, the removable rack frame allows for in-shop integration before the unit is placed in its final location. Once installed, the rotating equipment bay can be locked at 0°, 60°, or 90° to ensure stability during maintenance or installation. The system features a self-centering mounting base to simplify alignment within cabinet openings. For effective cable management, a rear cable support works in conjunction with the standard 10-32 threaded front and rear rackrails. This TAA compliant, USA-made solution supports a weight capacity of 200 lbs (90.7 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 23.14 in (58.8 cm) |
| Height | 27.5 in (69.9 cm) |
| Rack Units | 14 RU |
| Shipping Weight | 40 lbs (18.1 kg) |
| Usable Depth | 21.25 in (54 cm) |
| Usable Height | 24.5 in (62.2 cm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 19.13 in (48.6 cm) |
All other specifications 8
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Flat Powder Coat |
| Rack Rail Type | 10-32 |
| Rack Type | In-Cabinet |
| TAA Compliant | Yes |
| UPC | 656747047343 |
| Certifications | TAA |
Resources
You'll need these with it
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection
PD-915R-PL$264.60
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
1 RU Mounting Rackshelf - 12 Piece
UTR1-RP12$615.60
1 RU Brush Grommet Panel
BR1$86.40
2 RU Utility Rackshelf, 15.4 Inches Deep, Vented - 4 Piece
U2V-4$358.20
Lace Bar 4 Inch Offset, L-Shaped - 10 Pieces
LBP-4A$118.80
1 RU Rack Vent Panel, Perforated with 64% Open Area
VT1$27.90

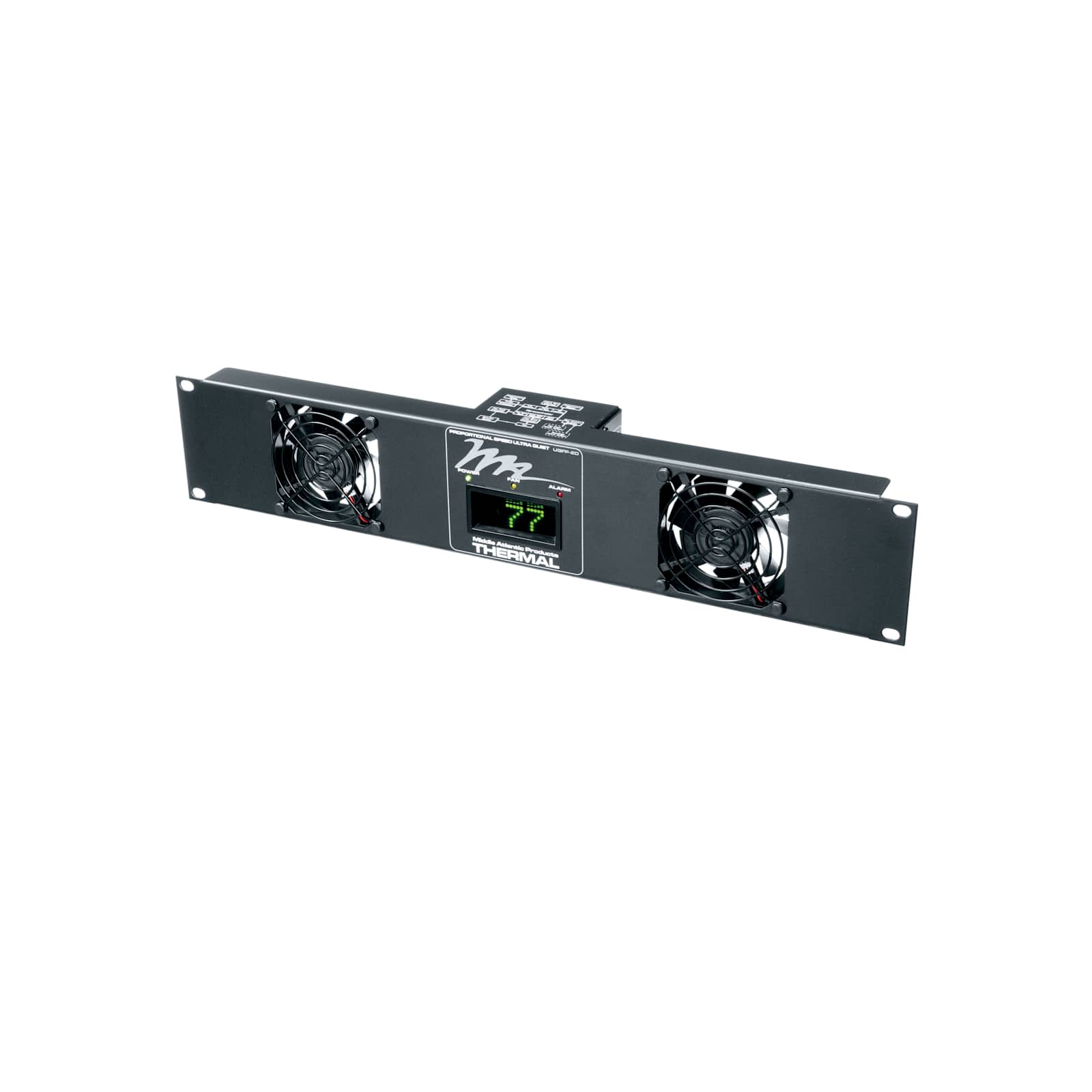

50 CFM Fan Panel, 24dB
UQFP-2$558.90

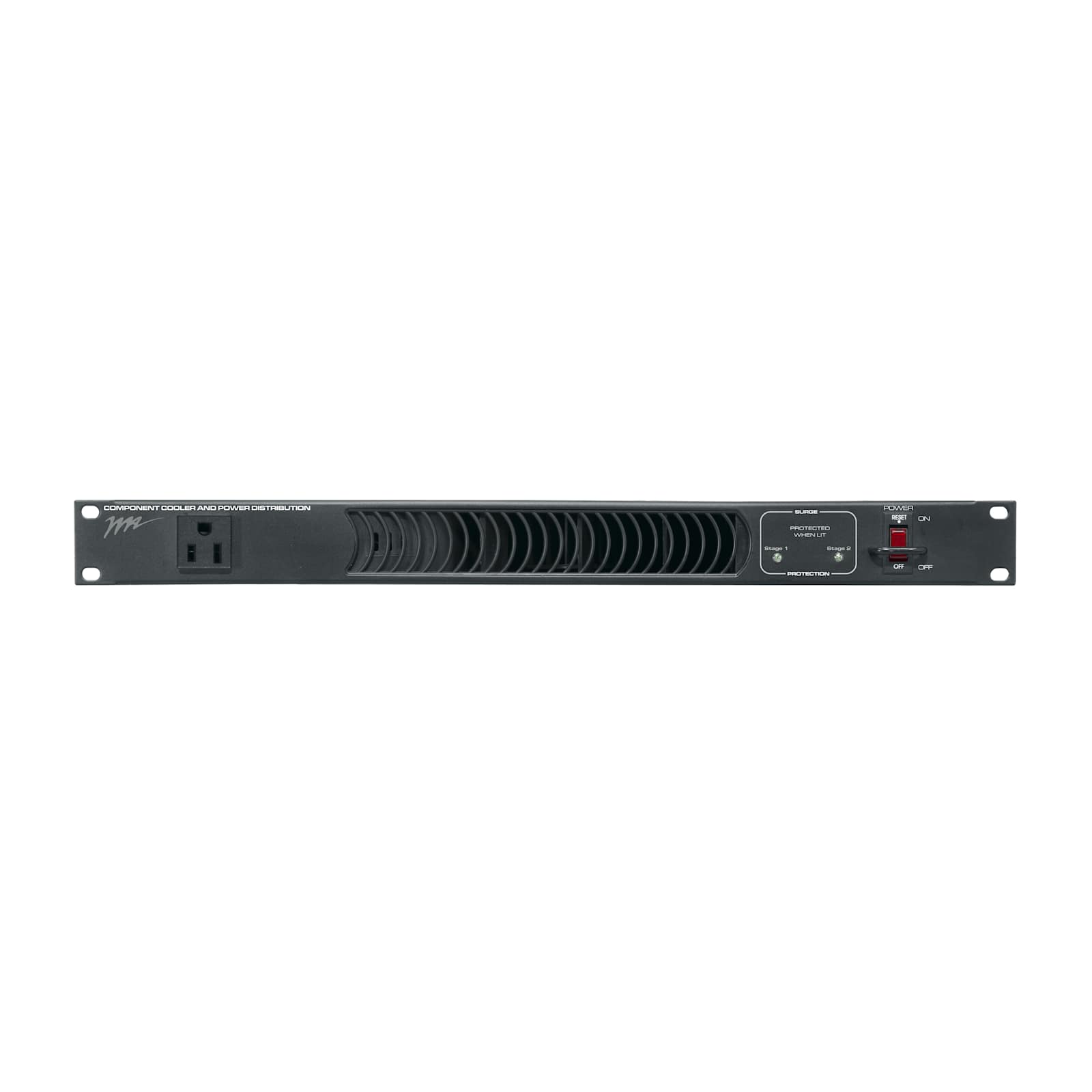

Rackmount Power/Cooling, 11 Outlet, 20A & 2-Stage Surge
PDCOOL-1120R$918.00
40 CFM Quiet-Cool Cabinet Cooler
CAB-COOL-2$328.50

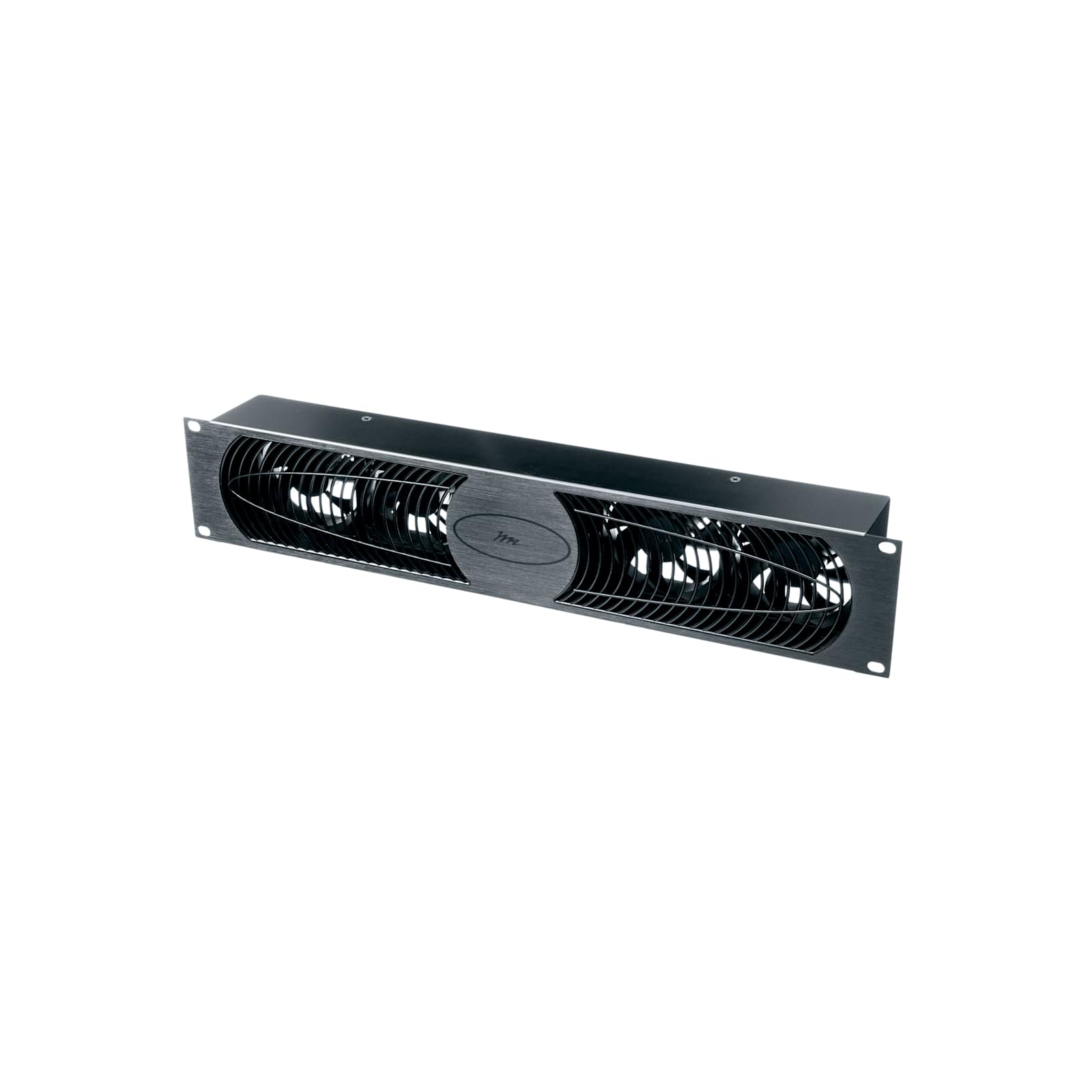

100 CFM Fan Panel, 27dB, Anodized, Intake Secondary Only
UQFP-4RIS$642.60
Questions about this part
Will the SRSR-X-14 fit in my cabinet or millwork installation?
Yes, this system is designed for in-cabinet, millwork, and flush in-wall applications. The 23.14 in (58.8 cm) depth and 19.13 in (48.6 cm) width should be verified against your enclosure's interior dimensions.
How much weight can this 14 RU rack actually hold?
The SRSR-X-14 has a total weight capacity of 200 lbs (90.7 kg) when the equipment is mounted within the rotating bay.
What is the difference between the usable depth and the total depth?
The total depth of the unit is 23.14 in (58.8 cm), while the usable depth available for your equipment is 21.25 in (54 cm).
Can I lock the rack in place while I am servicing cables?
Yes, the rotating equipment bay includes locking positions at 0°, 60°, and 90° to provide stability during installation and equipment servicing.
Which document should I use for a submittal?
Technical drawings are available in DWG format, and Revit models (RFA) are provided for BIM coordination. A 3-part specification document is also available for project submittals.
