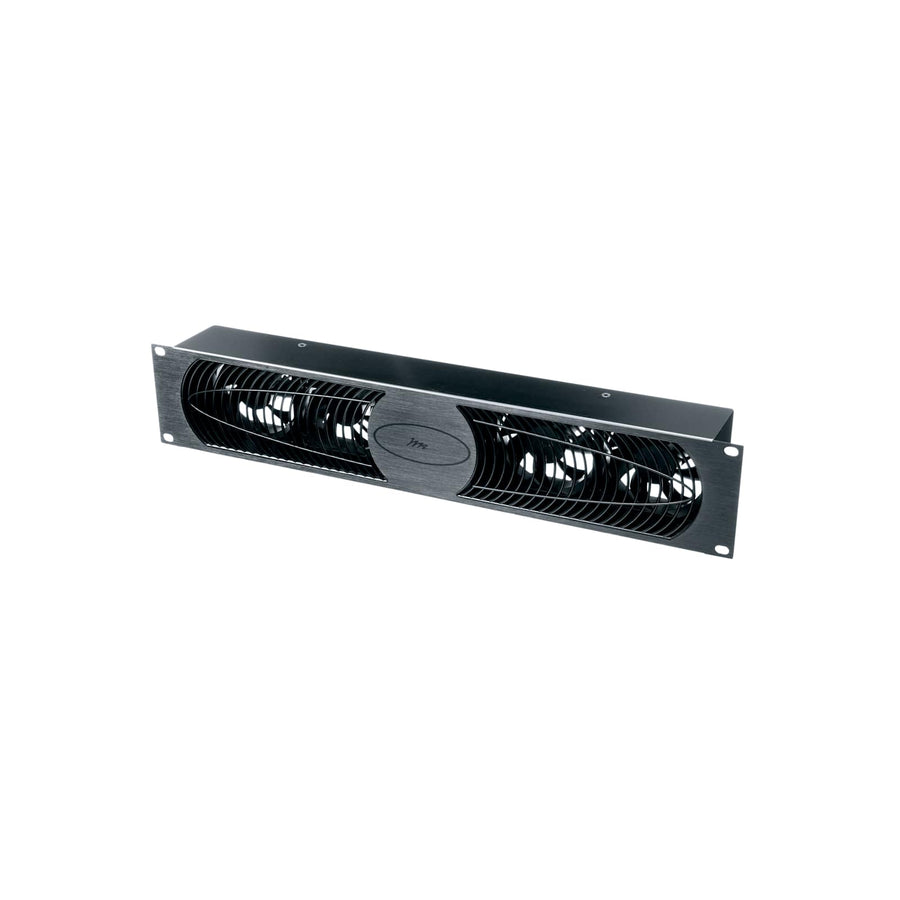

100 CFM Fan Panel, 27dB, Anodized, Intake Secondary Only
2 RU intake fan panel providing 100 CFM of cooling at 27 dB in a brushed anodized finish
The Middle Atlantic UQFP-4RIS is a 2 RU intake-only fan panel designed to improve airflow within densely populated racks. This active thermal management component is part of a specialized intake/exhaust two-panel system; it is an intake unit that can be added to and linked with an exhaust unit to optimize cooling paths. The unit delivers 100 CFM of airflow at a noise level of 27 dB. It features intelligent, thermostatic proportional control via an on-board digital processor, which adjusts fan speed based on equipment temperature monitored through an external sensor. This intelligent system provides local and remote notifications for over-temperature events, fan faults, or external sensor failures. The UQFP-4RIS features a black brushed and anodized finish for a professional appearance in any rack environment. It requires 120V AC input and operates on 5 VDC.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 |
| CFM | 100 |
| Depth | 2.96 in (7.5 cm) |
| Height | 3.5 in (8.9 cm) |
| Rack Units | 2 RU |
| Shipping Weight | 4.5 lbs (2 kg) |
| Volts DC | 5 VDC |
| Width | 19 in (48.3 cm) |
All other specifications 11
| Available Internationally | No |
| Component Type | Active |
| Display | No |
| Finish | Brushed and Anodized |
| Manufacturer | Middle Atlantic |
| Mounting Points | 2 |
| Power Type | DC |
| TAA Compliant | No |
| Thermistor | No |
| UPC | 656747123405 |
| Patents | www.legrandav.com/patents |
Resources
Questions about this part
How does the UQFP-4RIS manage fan speed?
An on-board digital processor uses an external sensor to monitor equipment temperature and provides thermostatic proportional control to vary fan speed.
Can I use the UQFP-4RIS with an exhaust panel?
Yes, this is an intake unit that can be linked to a UQFP exhaust unit to create a two-panel system for improved airflow.
What kind of notifications does this panel provide?
The system provides local and remote notifications in the event of an over-temperature condition, a fan fault, or an external sensor failure.
What power requirements are needed for installation?
The unit requires 120V AC input voltage and operates on 5 VDC.
Does the UQFP-4RIS include a display?
This specific UQFP-4RIS model is the version without the front display; other models in the series include a dimmable temperature and alert display.
