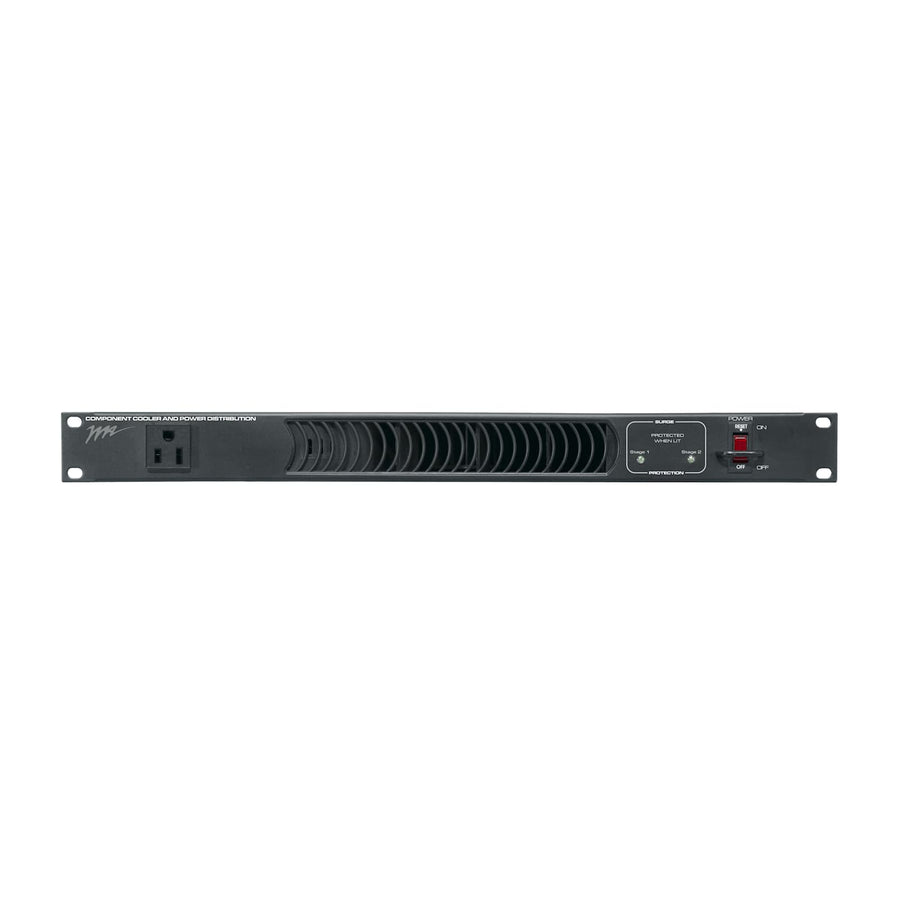

Rackmount Power/Cooling, 11 Outlet, 20A & 2-Stage Surge
1RU rackmount power distribution and cooling unit with 11 outlets, 20A capacity, and 50 CFM thermostatic blower
The PDCOOL-1120R provides integrated power distribution and active cooling within a single 1RU chassis. This 120 VAC unit is designed to manage thermal loads and power distribution simultaneously, featuring an aluminum construction with a flat black finish. It delivers 20 Amp service through 11 outlets and utilizes a 5-20P plug type. For thermal management, a quiet blower provides 50 CFM of airflow with high static pressure to maintain necessary flow. This cooling system utilizes thermostatic proportional speed control, meaning the blower only operates when required by the ambient temperature. Additionally, the unit includes 2-stage surge protection with a built-in notification system to alert installers of surge events. This unit requires a 19 in (48.3 cm) rack and features a 14.2 in (36.1 cm) depth and a 6 ft (1.8 m) removable power cord for installation flexibility.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 20 Amp |
| CFM | 50 |
| Cord Length | 6 ft (1.8 m) |
| Depth | 14.2 in (36.1 cm) |
| Height | 1.75 in (4.4 cm) |
| Rack Units | 1 RU |
| Shipping Weight | 12.2 lbs (5.5 kg) |
| Volts AC | 120 VAC |
All other specifications 13
| Width | 19 in (48.3 cm) |
| Cable Type | Removable |
| Color | Black |
| Finish | Flat |
| Material | Aluminum |
| Mounting Points | 2 |
| Number of Circuits | 1 |
| Outlet Count | 11 |
| Plug Type | 5-20P |
| Surge Protection Type | 2-Stage |
| TAA Compliant | No |
| UPC | 656747199103 |
| Certifications | ETL Listed |
Resources
Questions about this part
Will the PDCOOL-1120R fit in a standard 19-inch rack?
Yes, this is a 1RU horizontal rackmount unit designed for 19 in (48.3 cm) wide enclosures.
What type of surge protection does this unit use?
The PDCOOL-1120R features 2-stage surge protection and includes a notification system to signal surge events.
How is the cooling managed in this power strip?
The unit contains a quiet blower that provides 50 CFM of airflow. It uses thermostatic proportional speed control to run only when the temperature requires it.
What is the power cord configuration for this model?
This unit uses a 6 ft (1.8 m) removable cable type with a 5-20P plug.
Can I use the PDCOOL-1120R for high-current applications?
This model provides 20 Amp service across 11 outlets on a single circuit.
