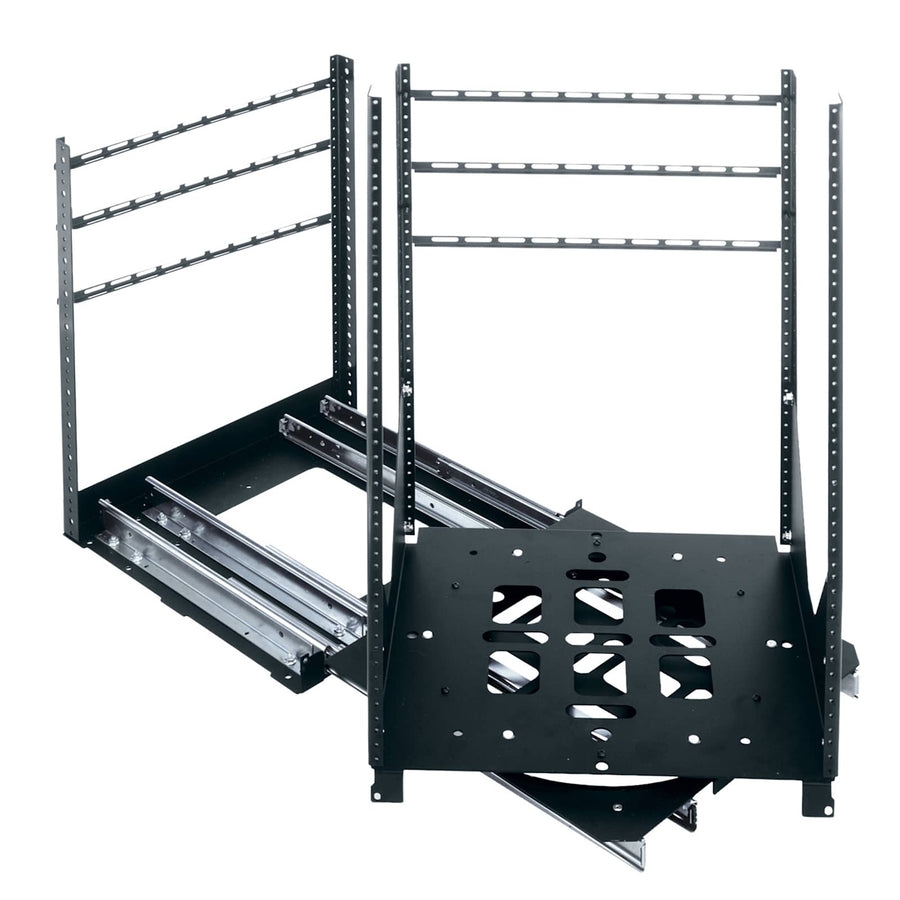

SRSR Series Slide Out Rotating Rail System Rack - SRSR-4-20
20 RU rotating slide out rack system with 90° rotation and 250 lbs capacity for easy equipment servicing
The Middle Atlantic SRSR-4-20 is a 20 RU rotating slide out rack system designed to provide easy rear access to equipment connections within millwork, cabinets, and flush in-wall installations. This in-cabinet rack type features a removable rack frame, which facilitates both in-shop integration and efficient on-site installation. The equipment bay rotates 90° in either direction and includes locking mechanisms at 0°, 60°, and 90° to simplify the installation and servicing of hardware. For ease of use within tight spaces, the system utilizes a self-centering mounting base to align it within cabinet openings. To assist with cable management, the design includes rear cable support that works alongside the rear rackrail. This unit is TAA compliant and features a flat powder coat finish in black. The structure provides a weight capacity of 250 lbs (113.4 kg) and utilizes standard front and rear 10-32 threaded rackrails with marked spaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 19.14 in (48.6 cm) |
| Height | 38 in (96.5 cm) |
| Rack Units | 20 RU |
| Shipping Weight | 60 lbs (27.2 kg) |
| Usable Depth | 17.25 in (43.8 cm) |
| Usable Height | 35 in (88.9 cm) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Width | 19.13 in (48.6 cm) |
All other specifications 8
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Flat Powder Coat |
| Rack Rail Type | 10-32 |
| Rack Type | In-Cabinet |
| TAA Compliant | YesYes |
| UPC | 656747043284 |
| Certifications | TAA |
Resources
You'll need these with it
1 RU Flanged Blank Rack Panel, Textured
SB1$23.40
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
1 RU Flat Blank Rack Panel, Aluminum - 12 Piece Contractor Pack
PHBL1-CP12$192.60
20 CFM Quiet-Cool Cabinet Cooler
CAB-COOL$189.00
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Questions about this part
Will the SRSR-4-20 fit in a standard cabinet?
The SRSR-4-20 has a 19.14 in (48.6 cm) width and 38 in (96.5 cm) height, making it suitable for in-cabinet and flush in-wall installations.
How much equipment can this rotating rack hold?
This system supports a weight capacity of 250 lbs (113.4 kg) across its 20 RU frame.
What is the difference between this and other SRSR models?
This SKU is the 20 RU version within the SRSR series; other models in the series offer different rack unit counts.
How is the equipment accessed once installed?
The equipment bay rotates 90° in either direction and can be locked at 0°, 60°, or 90° to facilitate easier servicing and cabling.
What documents are available for submittals?
Installers can access the SRSR Series Instruction Sheet, CAD Technical Specification Drawings, and Revit Models for project planning.
