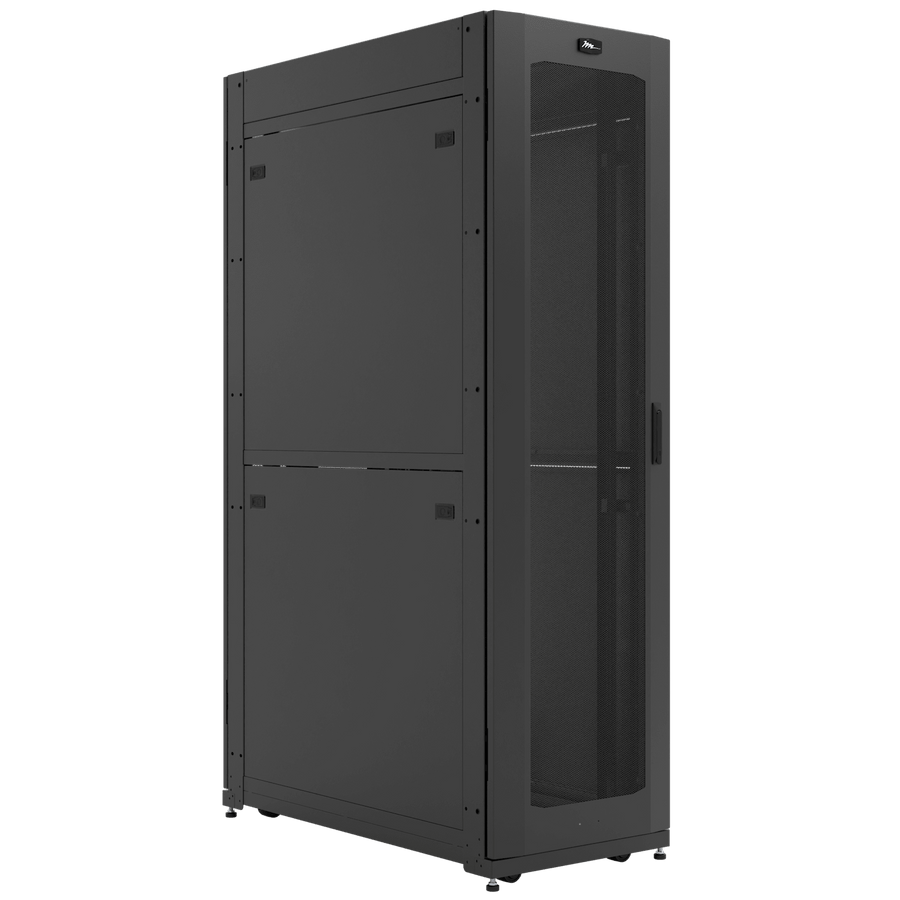

SNE Series Rack SNE24D-4548-P1
45 RU wide security network enclosure kit, 48" depth, featuring passive front-to-rear airflow and seismic rating
The SNE24D-4548-P1 is a pre-configured SNE Series Digital Wide Security Network Enclosure Kit designed specifically for high-density digital and IP-based security systems. This 45 RU floor-standing rack provides a robust environment for network equipment, servers, and intensive cabling. The enclosure features a passive front-to-rear airflow design, utilizing a 70% open area vented front door and a 70% open area split rear door to facilitate natural thermal management in data center environments. For equipment mounting, it includes a pair of adjustable cage-nut rack rails that arrive with 100 6mm hardware pieces. The unit is built with steel and finished in a black texture powder coat. This TAA compliant enclosure is seismic rated with a seismic load capacity of 1050 lbs (476.3 kg) and an UL load capacity of 3000 lbs (1,360.8 kg). The solid top includes a brush cable pass-through for organized wire entry.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 48 in (121.9 cm) |
| Height | 84.77 in (215.3 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 354 lbs (160.6 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 44.48 in (113 cm) |
| Usable Height | 78.75 in (200 cm) |
All other specifications 18
| Width | 24 in (61 cm) |
| Airflow Direction | Passive Front to Rear |
| Component Type | Passive |
| Federal Ops Country of Origin | USA |
| Finish | Black Texture Powder Coat |
| Gangable | Yes |
| Material | Steel |
| Product Configuration | Pre-Configured |
| Rack Rail Type | Cage Nut |
| Rack Type | Pre-Configured |
| Rear Door | Yes |
| Seismic Rated | Yes |
| Side Panel | Yes |
| System Type | Digital |
| TAA Compliant | Yes |
| UPC | 656747208027 |
| Certifications | TAAUL Listed |
| Seismic Load Capacity | 1050 lbs (476.3 kg) |
Resources
You'll need these with it
45 RU Vertical Cable Fingers
SNE-IVCMF-45$173.70
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Premium Online Series Replacement Battery Pack, 1500VA UPS & 1500VA Left UPS Expansion Battery
UPS-OLRBP-3$594.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Questions about this part
What is the compatibility for Lever Lock™ accessories with the SNE24D-4548-P1?
This enclosure is Lever Lock™ compatible and accepts all 21" vertical accessories, including encoders, power supplies, and Access Control Systems.
Will this enclosure support my seismic requirements?
Yes, this unit is seismic rated with a seismic load capacity of 1050 lbs (476.3 kg) and carries a UL load capacity of 3000 lbs (1,360.8 kg).
What accessories are needed to complete this security network setup?
Depending on your layout, you may need items such as the SNE-IVCMF-45 Vertical Cable Fingers, WUSS17-5 Wide Unit Shelves, or Select Series PDUs like the RLM30-L530-1.
How is the cabling managed in this rack?
The enclosure features a solid top with a brush cable pass-through for organized entry and accommodates high-density cabling for digital systems.
What is the difference between this and the WMRK-4548?
The SNE24D-4548-P1 is part of the SNE Series being discontinued on May 1, 2027; Middle Atlantic recommends the WMRK-4548 as the replacement model.
