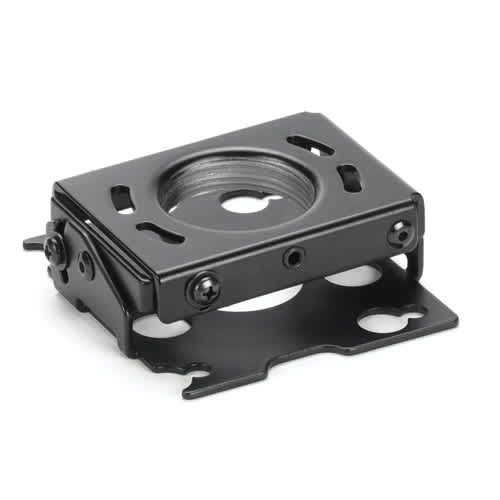

RSA302
Compact ceiling projector mount with 25 lbs capacity and independent roll, pitch, and yaw adjustments
The RSA302 is a compact ceiling projector mount designed specifically for smaller projectors. This mount is approximately one-third the size of the standard RPA Series while providing the same core functional features. It features independent roll, pitch, and yaw adjustments, allowing installers to achieve quick and precise projector registration. The design facilitates easy maintenance by providing quick connect/disconnect access to lamps and filters on most projectors without losing preset adjustments. To prevent theft, the unit utilizes All-Points Security steel-into-steel locking hardware at every connection point. For installation flexibility, this mount supports flush mounting to a ceiling, the use of 0.25" threaded rods, or mounting to a 1.5" NPT column. This UL Listed and TAA compliant mount is an ideal solution for space-constrained ceiling applications requiring reliable, adjustable positioning.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 12.5" x 4.5" x 16"(317.5 x 114.3 x 406.4 mm) |
| Shipping Weight | 5.15 lbs (2.3 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872155647 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Questions about this part
Will the RSA302 fit my specific projector model?
The RSA302 is a custom-interface mount. You should use the Chief MountFinder tool or search for a specific custom SKU to verify compatibility with your projector's weight and mounting pattern.
What is the maximum weight capacity for the RSA302?
The RSA302 has a weight capacity of 25 lbs (11.3 kg) for ceiling-mounted applications.
What installation options are available for this mount?
This mount offers multiple installation paths, including flush mounting directly to a ceiling, using 0.25" threaded rods, or integrating with a 1.5" NPT column.
Does the RSA302 include the necessary column or adapters?
No, the mount is the base unit. Depending on your setup, you may need to purchase additional accessories like a 1.5 Inch to 1 Inch NPT Adapter (CMA151) or a 1.5" NPT column.
Is this mount TAA compliant for government contracts?
Yes, the RSA302 is TAA compliant and UL Listed.
