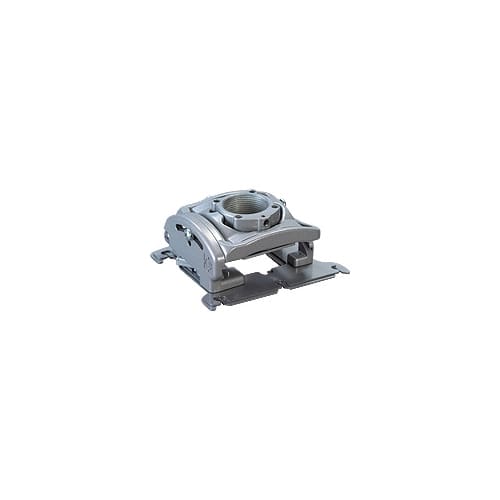

RPM Elite (Mount Only)-RPMC000S
Ceiling-mounted projector assembly only with independent roll, pitch, and yaw adjustability and 50 lbs capacity
The Chief RPMC000S is the top assembly only for the RPM Elite series. This ceiling-mount solution is engineered for rapid installation and precise projector registration. It features Microzone Adjustments to assist with fast, accurate positioning, even in flush mount installations. Built with Centris Technology, the mount allows for effortless fingertip positioning and automatically adjusts to support different projector weights. For serviceability, the Q-Lock Quick Release Lever enables quick connection and disconnection for lamp or filter access, and maintains preset adjustments when disconnected. This assembly provides independent roll, pitch, and yaw for complete positioning control. Note that this is the mount only; you must also purchase a compatible interface bracket, such as the SLMUS universal bracket, or use Chief's MountFinder™ to identify the correct model for your specific projector.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 9.25" x 9.25" x 4.2" (235 x 235 x 106.7 mm) |
| Shipping Weight | 6 lbs (2.7 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | Silver |
| Interface Type | Custom |
| Locking Type | C |
| Solution Type | Universal and Custom |
| TAA Compliant | No |
| UPC | 841872078120 |
| Certifications | UL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Questions about this part
What do I need to buy to complete the installation with the RPMC000S?
This SKU is the top assembly only. You must also purchase an interface bracket that attaches to your projector, such as the SLMUS universal bracket, to complete the installation.
How does the Q-Lock system work for projector servicing?
The Q-Lock Quick Release Lever allows for rapid connection and disconnection of the projector for lamp or filter access. It maintains your preset adjustments and includes an integrated key and lock system for enhanced security.
Can I adjust the projector position after it is mounted to the ceiling?
Yes, the mount features Microzone Adjustments for precise registration and provides independent roll, pitch, and yaw to allow for fine-tuned positioning.
What is the weight capacity for this projector mount?
The RPMC000S is rated for a weight capacity of 50 lbs (22.7 kg).
Will this mount work with my existing projector?
You can use Chief's MountFinder™ to determine which specific model number matches your projector's interface requirements for this mounting system.
