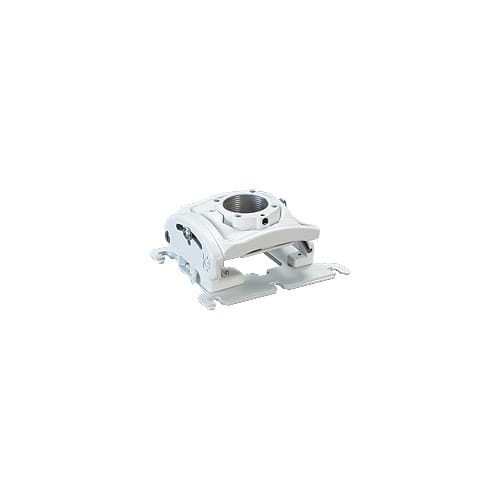

RPM Elite (Mount Only)-RPMB000W
Ceiling-mounted projector assembly in white with independent micro-adjustable roll, pitch, and yaw for precise positioning
The RPMB000W is the top assembly only for the Chief RPM Elite series. This white ceiling mount provides the structural foundation for professional projector installations, supporting a weight capacity of 50 lbs (22.7 kg). It features Centris Technology, which allows for effortless fingertip positioning and automatic self-adjustment to accommodate different projector weights. For service efficiency, the Q-Lock Quick Release Lever allows for rapid connection and disconnection of the projector using an integrated key and lock system. This assembly includes independent roll, pitch, and yaw adjustments, alongside micro-zone adjustments to ensure fast, precise registration even in flush mount installations. This unit is UL Listed and designed for high-security environments. Note that this is the mount assembly only; you must purchase a compatible interface bracket, such as the SLMUW universal bracket, to complete your installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 9.25" x 9.25" x 4.2" (235 x 235 x 106.7 mm) |
| Shipping Weight | 6 lbs (2.7 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | White |
| Interface Type | Custom |
| Locking Type | B |
| Solution Type | Universal and Custom |
| TAA Compliant | No |
| UPC | 841872078076 |
| Certifications | UL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Questions about this part
Will the RPMB000W fit my specific projector model?
This is the top mount assembly only. You must pair it with a compatible interface bracket, such as the SLMUW universal bracket, or use Chief's MountFinder tool to find the correct model for your projector.
What is required to complete the installation of the RPMB000W?
This SKU is the mount assembly only. To complete the installation, you will need to purchase a separate interface bracket that matches your projector's mounting pattern.
How does the adjustment mechanism work for flush mounts?
The mount utilizes Microzone Adjustments, which allow for fast and precise projector registration even in tight flush mount installation scenarios.
Is the projector secure once it is mounted?
Yes, the Q-Lock Quick Release Lever provides enhanced security through an integrated key and lock system, and it helps maintain registration when disconnecting the unit for service.
Does this mount include cable management?
Yes, the RPMB000W features integrated cable management to keep wiring tidy without the need for additional accessories.
