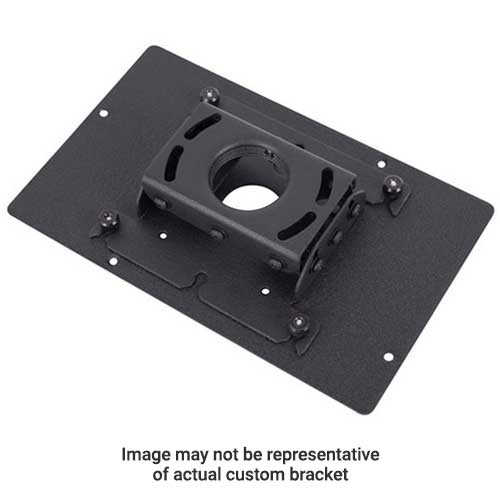

RPA324
Ceiling projector mount with independent roll, pitch, and yaw for precise registration and a 50 lbs capacity
The RPA324 is a widely used ceiling projector mount designed for versatile installation in offices, schools, and residential environments. This mount features independent roll, pitch, and yaw adjustments, allowing for quick and precise projector registration. When installed as a flush mount to a ceiling, it offers a 12° adjustment range. For maintenance, the quick connect/disconnect feature provides convenient access to the lamp and filter on most projectors without losing preset adjustments. To protect against theft, the mount utilizes All-Points Security steel-into-steel locking hardware at all key connection points. Installation is flexible, supporting flush mounting, mounting with 0.25" threaded rods, or using a 1.5" NPT threaded extension column. The integrated design also includes cable management to keep installations tidy without needing additional accessories. This model is TAA compliant and UL Listed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 18.25" x 18.25" x 4.25"(463.6 x 463.6 x 108 mm) |
| Shipping Weight | 6 lbs (2.7 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Adjustments | 12° on flush mount |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Solution Type | Universal and Custom |
| TAA Compliant | Yes |
| UPC | 841872166995 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Questions about this part
Will the RPA324 fit my projector?
This is a universal and custom solution. You can verify compatibility for your specific device by using MountFinder™ or checking the manufacturer list provided in the full documentation.
How do I adjust the projector once it is mounted?
The RPA324 provides independent roll, pitch, and yaw adjustments. On a flush mount installation, you can achieve up to 12° of adjustment to ensure correct registration.
Can I still access the projector lamp after installation?
Yes. The quick connect/disconnect feature allows for convenient access to the lamp and filter on most projectors while maintaining your preset adjustments.
What is the weight limit for the RPA324?
The mount has a weight capacity of 50 lbs (22.7 kg).
What installation hardware is required for extension columns?
You can mount this system using 0.25" threaded rods or a 1.5" NPT threaded extension column; additional adapters like the CMA151 are available for specific NPT requirements.
