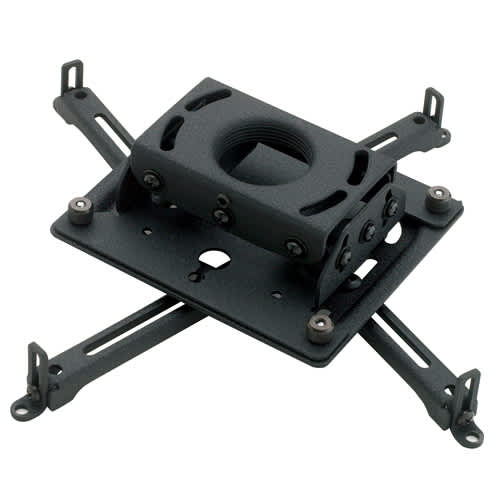

RPA Universal Ceiling Projector Mount, TAA Compliant
Universal ceiling projector mount with independent roll, pitch, and yaw adjustments and 50 lbs capacity, TAA compliant
The RPAO-G is a TAA compliant, low-profile universal ceiling projector mount from Chief's first generation of RPA series mounting solutions. This black-finish mount is designed for rapid installation in environments where the specific projector model may be unknown, making it an essential stock item for dealers. It features independent roll, pitch, and yaw for quick and precise projector registration. The quick connect/disconnect mechanism allows for convenient access to lamps and filters on most projectors without losing the preset adjustments. For security, the mount utilizes All-Points Security exclusive steel-into-steel locking hardware at all key connection points to protect against theft. Installation options are versatile, allowing for a flush mount to the ceiling, use of 0.25" threaded rods, or mounting with a 1.5" NPT threaded extension column. This model includes integrated cable management to maintain a clean installation without requiring additional accessories. It supports a weight capacity of 50 lbs (22.7 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 10" x 10" x 4"(254 x 254 x 101.6 mm) |
| Shipping Weight | 4.7 lbs (2.1 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Adjustments | 12° on flush mount |
| Application | Ceiling |
| Color | Black |
| Interface Type | Universal |
| Solution Type | Universal and Custom |
| TAA Compliant | Yes |
| UPC | 841872164137 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
Questions about this part
What is the weight capacity for the Chief RPAO-G?
The RPAO-G supports a maximum weight capacity of 50 lbs (22.7 kg).
How much adjustment can I get with this mount?
It provides independent roll, pitch, and yaw adjustments, including 12° on a flush mount setup.
Can I use this mount with an extension column?
Yes, you can mount it using a 1.5" NPT threaded extension column or 0.25" threaded rods.
What is the difference between this and other RPA mounts?
The RPAO-G is the TAA compliant version of the RPA series, meeting specific requirements for U.S. Government projects.
Will this mount help with lamp replacement?
Yes, the quick connect/disconnect feature allows for convenient lamp and filter access on most projectors.
