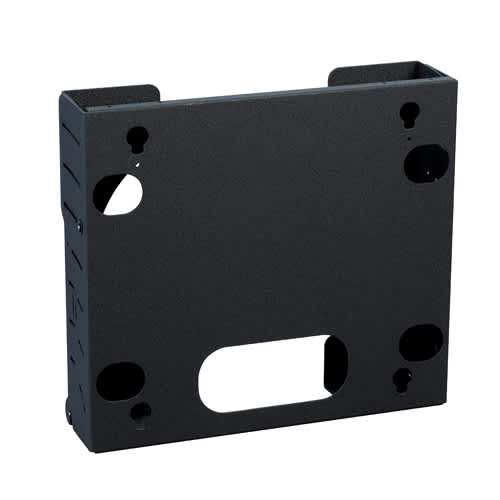

Large Tilt Mount with CPU Storage - PWCU
Large tilt wall mount with integrated CPU storage for media players, supporting 200 lbs capacity and TAA compliance
The Chief PWCU is a large tilt wall mount with CPU storage designed for professional digital signage applications. This all-in-one solution allows installers to easily integrate a media player into a flat panel installation, providing a clean and secure look. The mount features an integrated interface and a Q-Latch Mounting System that provides a lockable latch for increased security. It supports both landscape and portrait orientations; for rotation without removing the display, the PAC400 or MAC400 rotation adapters can be used. The mount provides lockable tilt at +0°, -5°, -10°, and -15° angles. It accommodates equipment up to 20" x 18.79" x 3.79" (508 x 477 x 96 mm) and can handle a maximum screen thickness of 6" (152.4 mm). For wall installation, the unit requires a minimum depth of 4.5" (11.4 cm) and allows for a lateral shift of 1.5" (3.8 cm). This TAA compliant mounting solution is rated for a weight capacity of 200 lbs (90.7 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Lateral Shift | 1.5 in (3.8 cm) |
| Max Equipment Size | 20" x 18.79" x 3.79" (508 x 477 x 96 mm) |
| Maximum Screen Thickness | 6 in (152.4 mm) |
| Minimum Depth | 4.5 in (11.4 cm) |
| Shipping Dimensions | 39.5" x 20" x 5.25" (100.3 x 50.8 x 13.3 cm) |
| Shipping Weight | 32 lbs (14.5 kg) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Adjustability | Tilt |
All other specifications 10
| Application | Wall |
| Color | Black |
| Interface Included | Yes |
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Solution Type | Universal |
| TAA Compliant | Yes |
| Tilt | +0° / -15° |
| UPC | 841872091143 |
| Certifications | TAA |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Metal Stud Anchor Kit - 4 Anchors
PAC115$27.20
P-Series Rotation Adapter
PAC400$320.80
Video Conferencing Camera Shelf – 9", for Extra-Large Displays
PAC810$190.40
Flat Panel 28 Inch Lateral Shift Accessories
PAC125Discontinued
PAC800HS Above/Below HuddleSHOT All-in-One Conferencing Camera Shelf for Large Displays
PAC800HSDiscontinued
PAC810HS Above/Below HuddleSHOT All-in-One Conferencing Camera Shelf for Extra-Large Displays
PAC810HSDiscontinued
Questions about this part
Can I use the PWCU in portrait orientation?
Yes, the PWCU supports both landscape and portrait orientations. To rotate a display without removing it from the mount, you can use the PAC400 or MAC400 rotation adapters.
What is the maximum size media player I can store in the PWCU?
The integrated CPU storage can accommodate equipment with a maximum size of 20" x 18.79" x 3.79" (508 x 477 x 96 mm).
