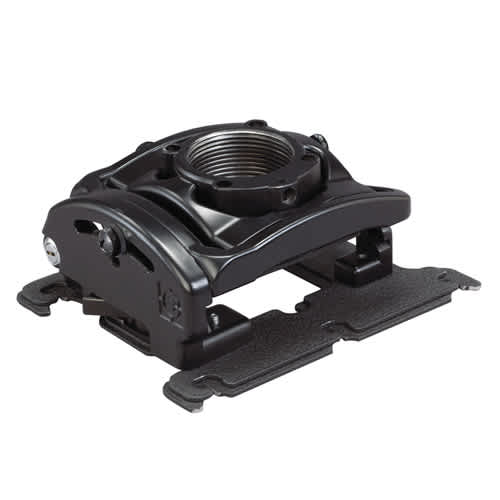

RPA Elite Universal and Custom Ceiling Projector Mounts with Keyed Locking - RPMA298
Elite ceiling projector mount with keyed locking, micro-adjustable roll, pitch, and yaw, and a 50 lbs capacity
The Chief RPMA298 is an elite ceiling projector mount designed for high-security environments requiring precise registration. This custom interface solution features a Q-Lock Quick Release Lever, which allows for the rapid connection and disconnection of the projector for maintenance or enhanced security. The integrated key and lock system ensures the device remains secure when not in service. For installation, Centris Technology provides effortless fingertip positioning, automatically adjusting to support various projector weights, while Microzone Adjustments enable fast, precise registration even in flush mount scenarios. This mount includes independent roll, pitch, and yaw adjustments for comprehensive positioning. It also features integrated cable management to keep installations tidy without needing additional accessories. This TAA-compliant, UL Listed mount is built for speed and security, making it an essential choice for professional system integrators.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 13.25" x 13.25" x 4"(336.6 x 336.6 x 101.6 mm) |
| Shipping Weight | 6 lbs (2.7 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Locking Type | A |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872154473 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Is the Chief RPMA298 compatible with Epson projectors?
Yes, it is verified against 154 device models from 1 manufacturer, including Epson models EB-4550, EB-4650, EB-4750W, and EB-4770W.
What accessories are needed for a suspended ceiling installation?
You may require a SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge (CMS440P2) or a Speed-Connect Suspended Ceiling Tile Replacement Kit (CMS445) depending on your specific ceiling requirements.
How does the locking mechanism work for servicing?
The Q-Lock Quick Release Lever allows you to quickly disconnect the projector for service or filter access while providing enhanced security through its integrated key and lock system.
What can I use to mount this to an I-Beam?
The RPMA298 can be paired with a C-Clamp (CMA362) or an I-Beam Clamp (CMA360) for specialized mounting configurations.
Does this mount require additional accessories for cable management?
No, this model features integrated cable management, allowing for organized cabling without the need to purchase separate accessories.
