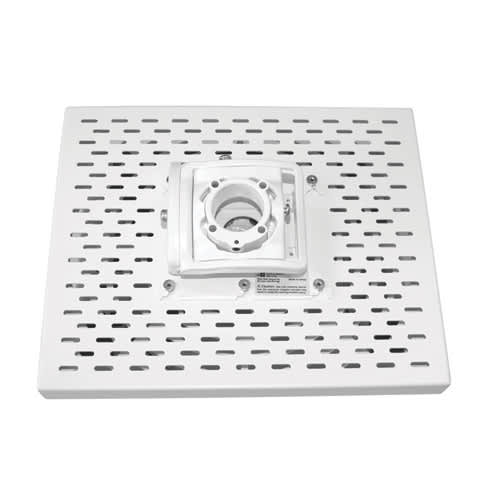

RPA Elite Projector Security Mount (Lock A) - RPMA1W
White ceiling security projector mount with 50 lbs capacity and micro-adjustable roll-pitch-yaw positioning
The RPMA1W is a white RPA Elite Security Projector Mount designed for ceiling applications where device security and rapid installation are required. This universal solution features a locking type A for high-risk environments, providing complete security through a universal mounting interface with secured mounting points. It is engineered for precision, utilizing Microzone Adjustments to ensure fast and accurate projector registration, even in flush mount installations. The integrated Centris Technology facilitates effortless fingertip positioning and automatically adjusts to accommodate varying projector weights. For maintenance, the mount allows for quick connect/disconnect of the device, providing convenient access to lamps and filters on most projectors without losing preset adjustments or registration. Integrated cable management is included within the assembly, eliminating the need for additional accessories. This TAA-compliant mount is built to support a variety of ceiling configurations with multiple accessory options available.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 17.5" x 12.75" x 5"(444.5 x 323.9 x 127 mm) |
| Shipping Weight | 12.6 lbs (5.7 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | White |
| Locking Type | A |
| Solution Type | Universal |
| Special Features | Security |
| TAA Compliant | Yes |
| UPC | 841872101941 |
| Certifications | TAA |
Resources
You'll need these with it
CMS0608W, 6-8' Adjustable Extension Column, Pole
CMS0608W$209.60
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
Verified fitment
Questions about this part
Will the RPMA1W fit my projector?
This mount is verified against 7,129 display models from 110 manufacturers, including Epson BrightLink 1485Fi, Optoma 4K400x, Panasonic PT-AE100U, NEC HT 1100, Hitachi BZ-1, and BenQ 7765PA.
What is the weight capacity of this mount?
The RPMA1W has a weight capacity of 50 lbs (22.7 kg) for ceiling installations.
How do I adjust the projector position once it is mounted?
The mount features independent micro-adjustable roll, pitch, and yaw to allow for precise registration and Centris Technology for fingertip positioning.
Does this mount require extra accessories for cable management?
No, this model features integrated cable management directly in the mount design.
Can I use this with a specific ceiling type?
Yes, several accessories are available for different mounting needs, such as the CMS443 Extension Column and Ceiling Mount Kit or the CMS165 Internal Joist Ceiling Kit.
