CMS0608W, 6-8' Adjustable Extension Column, Pole
White adjustable extension column providing 6' to 8' of height for pole-mounted projector installations

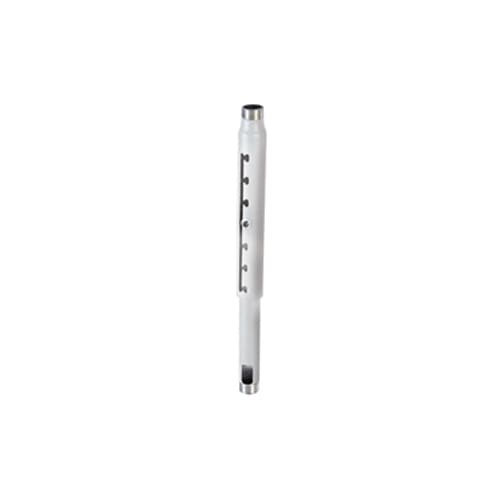

The Chief CMS0608W is a white adjustable extension column designed to increase the mounting height of ceiling-mounted projector systems. This 1.5" NPT column is threaded on both ends and features a notched design that allows for height adjustments in 1" increments without requiring full disassembly. By using the integrated notches and the included set screw, installers can achieve precise positioning while ensuring added stability for the assembly. This extension column is TAA compliant and UL listed. It is intended for use in combination with any Chief 1.5" NPT ceiling plate or other compatible accessories. This specific white finish SKU is part of a larger series of extension adjustable columns designed to maximize installation security and efficiency.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.3 in (5.8 cm) |
| Extension | 6' - 8' (1.83m - 2.44m) |
| Height | 96 in (243.8 cm) |
| Overall Dimensions | 96.0" x 2.3" x 2.3" (2438 x 59 x 59 mm) |
| Shipping Weight | 9.95 lbs (4.5 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 2.3 in (5.8 cm) |
| Accessory Type | Extension |
All other specifications 5
| Application | Pole |
| Color | White |
| TAA Compliant | Yes |
| UPC | 841872104850 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Dual Electric Outlet Coupler
CMA504$106.40
Electrical Storage Enclosure
CMA160$302.40
CMA270 Threaded Pipe Coupler
CMA270$31.20
CMA347, Vibration Isolating Coupler
CMA347$416.00
CMA270W Threaded Pipe Coupler
CMA270W$31.20
CMS261W Column Cut-Off Adapter
CMS261W$42.40
CMS261 Column Cut-Off Adapter
CMS261$42.40
CMA152, Threaded Pipe Coupler
CMA152$45.60
Questions about this part
What height can I achieve with the CMS0608W?
This extension column provides a height range of 6' to 8' (1.83m - 2.44m) with adjustments available in 1" increments.
What do I need to install this column with my existing ceiling plate?
The CMS0608W is a 1.5" NPT column and must be used in combination with a Chief 1.5" NPT ceiling plate or other compatible 1.5" NPT accessories.
Can I use this with a 1 inch NPT ceiling plate?
To use this with a 1 inch NPT plate, you will need the CMA151 1.5 Inch to 1 Inch NPT Adapter.
How do I secure the column once it is at the correct height?
The column features a notched design for adjustment and includes a set screw to provide added stability once positioned.
Does the CMS0608W meet TAA compliance requirements?
Yes, the CMS0608W is TAA compliant and is also UL listed.
