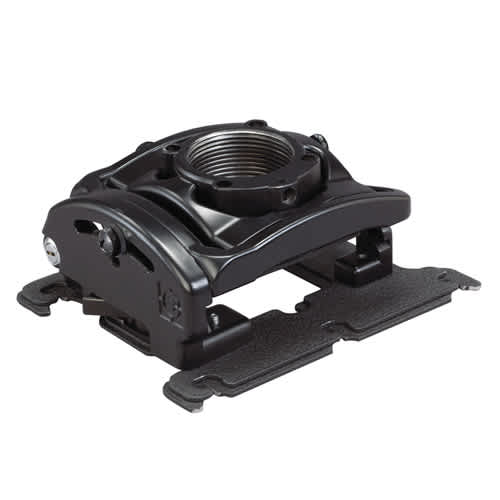

RPA Elite Custom Projector Mount with Keyed Locking (C version)-RPMC364
Custom ceiling projector mount with Microzone adjustments, Centris Technology, and Q-Lock security for professional installations
The Chief RPA Elite Custom Projector Mount with Keyed Locking (C version) RPMC364 is a custom-engineered solution designed to facilitate a quick and precise installation for specific projector models. This ceiling-mount solution utilizes Centris Technology, which enables effortless fingertip positioning while self-adjusting to support varying projector weights. For high-stakes environments, the integrated Q-Lock Quick Release Lever allows for the rapid connection and disconnection of the projector for maintenance or enhanced security, utilizing an integrated key and lock system. This mount features Microzone Adjustments to ensure precise projector registration, even in flush mount installations. Additionally, it provides integrated cable management to keep installations clean without requiring extra accessories. The RPA Elite series provides independent roll, pitch, and yaw for comprehensive positioning control. This specific RPMC364 SKU is TAA compliant and supports a weight capacity of 50 lbs (22.7 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 13.25" x 13.25" x 7"(336.6 x 336.6 x 177.8 mm) |
| Shipping Weight | 7 lbs (3.2 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Locking Type | C |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872171661 |
| Certifications | TAA |
Resources
You'll need these with it
6 Inch (152 mm) Ceiling Plate with Adjustable Column
CMA700$150.40
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
Verified fitment
Questions about this part
Will the RPMC364 fit my projector?
This is a custom-engineered mount. It is verified compatible with 37 device models from 5 manufacturers, including Optoma DU4671Z, BenQ LU785, and Digital Projection E-Vision LASER 5900.
What accessories are needed for a ceiling installation?
The RPMC364 requires a ceiling plate or column, such as the CMA700 6 inch ceiling plate with adjustable column or the CMA165 internal joist ceiling kit.
How do I access the projector lamp or filter?
The mount features quick connect/disconnect functionality that allows for convenient lamp and filter access on most projectors without full removal.
How much weight can this mount support?
The RPMC364 is rated for a weight capacity of 50 lbs (22.7 kg).
Can I adjust the projector after it is mounted?
Yes, the mount features independent roll, pitch, and yaw with Microzone micro-adjustments for precise positioning.
