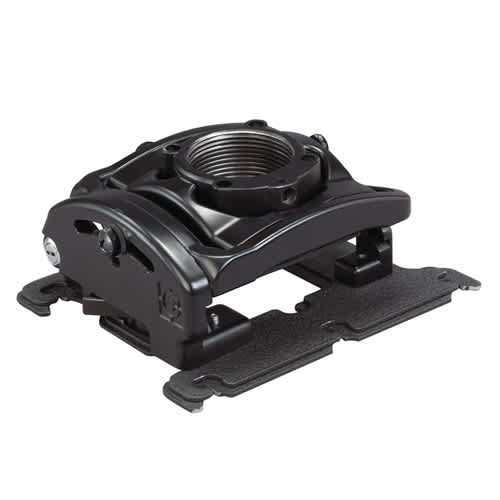

RPA Elite Custom Projector Mount with Keyed Locking (B version)-RPMB366
Custom ceiling mount for projectors with integrated keyed locking, independent micro-adjustments, and Centris technology for precise positioning
The RPMB366 is a custom RPA Elite projector mount designed for ceiling applications, featuring a specific B-version keyed locking system. This custom solution is engineered to accommodate specific projector models, allowing for a quick and professional installation. It utilizes Centris Technology, which enables effortless fingertip positioning and automatically self-adjusts to support various projector weights. For high-precision requirements, Microzone Adjustments facilitate fast and accurate projector registration, even in flush mount installations. This mount features independent roll, pitch, and yaw capabilities to achieve exact placement, specifically providing 20° of pitch, 3° of roll, and 360° of yaw. The integrated Q-Lock Quick Release Lever allows for rapid connection and disconnection of the projector for service or enhanced security through its integrated key and lock system. Additionally, built-in cable management eliminates the need for extra accessories, and the system maintains all preset adjustments even when the projector is disconnected for lamp or filter access.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 20" x 20" x 6"(508 x 508 x 152.4 mm) |
| Shipping Weight | 11.5 lbs (5.2 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Adjustments | Pitch: 20°Roll: 3°Yaw: 360° |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
All other specifications 5
| Locking Type | B |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872173603 |
| Certifications | TAA |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will this RPMB366 mount fit my Canon projector?
This is a custom mount; it is verified to fit Canon REALiS 4K5020Z, REALiS 4K6020Z, REALiS 4K6021Z, and REALiS WUX5800 models.
How does the Q-Lock system work for servicing?
The Q-Lock Quick Release Lever allows you to quickly connect or disconnect the projector for service, while the integrated key and lock system provides enhanced security.
What mounting hardware or accessories are needed for installation?
The mount supports various accessories such as the CMA165 Internal Joist Ceiling Kit or the CMA160 Electrical Storage Enclosure to complete your specific ceiling installation.
Does disconnecting the projector change my alignment?
No, the system is designed to maintain registration when disconnected, ensuring that your preset adjustments are not affected during service.
What are the adjustment ranges for this mount?
The mount provides a 20° pitch, a 3° roll, and a full 360° yaw for complete positional control.
