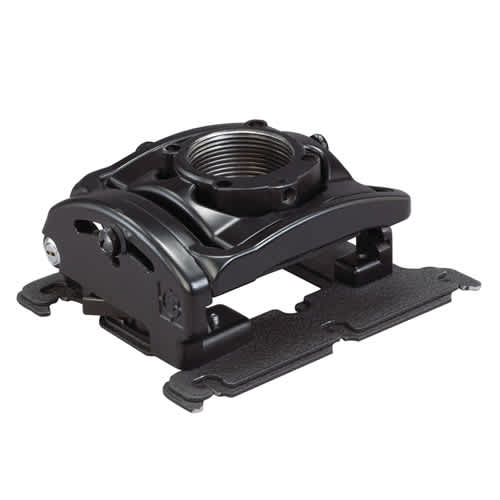

RPA Elite Custom Projector Mount with Keyed Locking (B version)-RPMB361
Custom ceiling projector mount with independent micro-adjustments and a keyed locking system for secure installation
The RPMB361 is a custom RPA Elite Projector Mount with Keyed Locking (B version) designed for specialized ceiling applications. This custom solution is engineered to fit specific projector models, providing a precise fit for high-end installations. The mount features Centris Technology for effortless, fingertip positioning, allowing for easy adjustment to support various projector weights. For precise registration, Microzone Adjustments provide fine-tuning capabilities, which is especially useful during flush mount installations. This ceiling-mounted solution includes a Q-Lock Quick Release Lever for rapid connection and disconnection during servicing. The integrated key and lock system provides enhanced security for the installation. This mount provides independent roll, pitch, and yaw adjustments, including a 360° yaw, 20° pitch, and 3° roll. Additionally, the design incorporates integrated cable management to keep installations clean without requiring extra accessories. This TAA-compliant mount supports a weight capacity of 50 lbs (22.7 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 7.85 lbs (3.6 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Adjustments | Pitch: 20°Roll: 3°Yaw: 360° |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Locking Type | B |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872171265 |
| Certifications | TAA |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RPMB361 fit my projector?
This is a custom-engineered mount. It is verified for compatibility with specific models, such as the BENQ HT8060, BENQ HT9060, BENQ L6000, BENQ LK970, and CASIO XJ-L8300HN.
What is the weight capacity for this mount?
The RPMB361 is rated for a weight capacity of 50 lbs (22.7 kg).
How does the Q-Lock system work for projector maintenance?
The Q-Lock Quick Release Lever allows for quick connection and disconnection of the projector, facilitating easier access to lamps and filters during servicing.
Does this mount require additional accessories for cable management?
No, this model includes integrated cable management to keep your installation tidy without the need for extra components.
Is this product TAA compliant?
Yes, the RPMB361 is TAA compliant.
