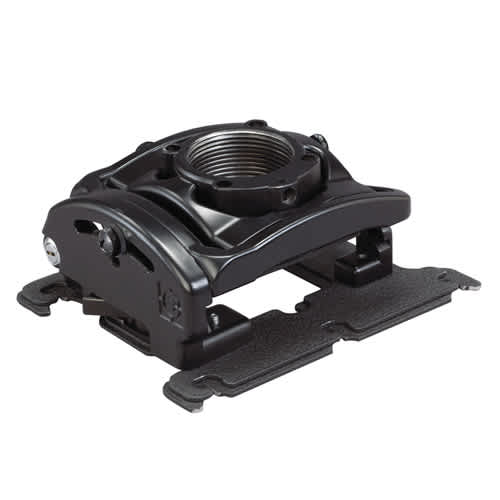

RPA Elite Custom Projector Mount with Keyed Locking (A version)-RPMA281
Custom ceiling-mount solution for projectors, featuring independent roll, pitch, and yaw with integrated keyed security locking.
The RPMA281 is a custom RPA Elite series projector mount designed for ceiling applications where precision and security are paramount. This custom solution is engineered to provide a quick and easy installation for specific projector models, ensuring a precise fit for your professional AV setup. Featuring Centris Technology, the mount enables effortless fingertip positioning and self-adjusts to accommodate different projector weights, ensuring stability during setup. For installers requiring exact alignment, Microzone Adjustments allow for fast and precise projector registration, even in flush mount installations. This model includes a Q-Lock Quick Release Lever, which provides a convenient way to connect or disconnect the projector for lamp or filter service while offering enhanced security through an integrated key and lock system. The mount facilitates integrated cable management without the need for additional accessories and maintains all preset adjustments even when the projector is disconnected for maintenance. This TAA compliant and UL Listed mount provides a professional finish for high-stakes environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 18.25" x 18" x 4.5"(463.6 x 457.2 x 114.3 mm) |
| Shipping Weight | 8.4 lbs (3.8 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | Black |
| Interface Type | Custom |
| Locking Type | A |
| Solution Type | Custom |
| TAA Compliant | Yes |
| UPC | 841872150178 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RPMA281 fit my specific projector model?
This is a custom mount. It is verified against 163 display models from 3 manufacturers, including JVC models DLA-F110, DLA-F110E, DLA-N5B, and DLA-N7B, as well as BENQ HT8050 and HT9050.
How do I access the projector lamp or filter for maintenance?
The Q-Lock Quick Release Lever allows for fast connect/disconnect, and the design includes quick access for lamp and filter changes without disturbing your preset adjustments.
What is the weight limit for this custom mount?
The RPMA281 has a weight capacity of 50 lbs (22.7 kg).
Is this mount suitable for high-security environments?
Yes, this SKU features a keyed locking system via the Q-Lock lever to provide enhanced security for the installed projector.
Does this mount require additional accessories for cable management?
No, this mount features integrated cable management as a standard feature, though various Speed-Connect accessories are available for different installation needs.
